OLF-LT Series [Organic LED Lights]

Unprecedented thin design!　Patent Filed

  • Achieves the uniformity and brightness required for machine vision applications
  • Expands the possibilities for lighting installation with a 3 mm thin design
  • Lightweight, and low heat next-generation light source
  • Red and white light emitting colors available
  • Notifies the user regarding recommended lighting replacement periods by connecting to a dedicated controller

Warranty for this product are not the same as CCS standard lighting. Contact our local sales o ice for details.

Features of OLF-LT

New Product Brand "CCS-LT"

OLF-LT

"CCS-LT" ("CCS Leading Technology") is a new CCS product brand for advanced technologies.

Its purpose is to introduce new developments in lighting to the market early and to broaden our range of solution proposals.

*The warranty period for lighting products is for 1 year from when the product ships. Emission amounts not guaranteed.
Contact our local sales office for details.

3-mm thinness expands the possibilities for lighting installation

Next-generation light sources achieving a thinner form

3mm

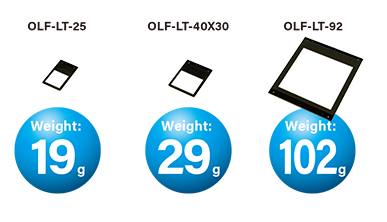

Lightweight

OLF-LT-25 weight19g/OLF-LT-40X30 weight29g/OLF-LT-92 weight102g

Achieves the uniformity and brightness required for machine vision applications

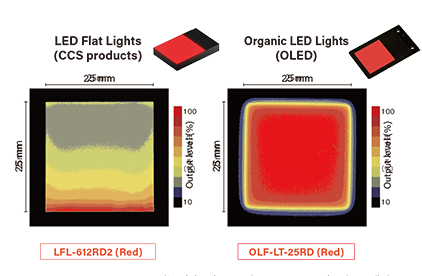

Uniformity comparison

Uniformity/brightness comparison with LED flat lighting (CCS products)

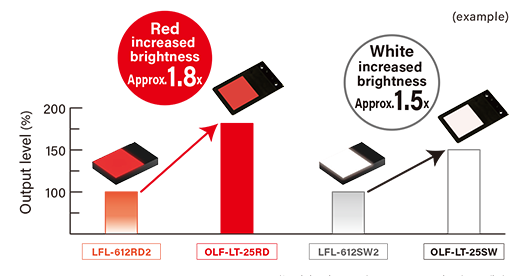

Brightness comparison

Uniformity/brightness comparison with LED flat lighting (CCS products)

(Data is for reference only. Not a guarantee of product quality.)

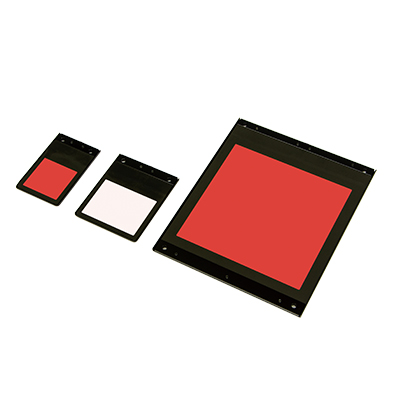

Available in 3 sizes, for a total of 6 models

Light emitting surfaces in 3 sizes: 25 mm x 25 mm, 40 mm x 30 mm, 92 mm x 92 mm, and 2 colors: red and white

OLF-LT-25RD [Red]

Light emitting surface：25mm×25mm

OLF-LT-25RD [Red]

OLF-LT-25SW [White]

Light emitting surface：25mm×25mm

OLF-LT-25SW [White]

OLF-LT-40X30RD[ Red]

Light emitting surface：40mm×30mm

OLF-LT-40X30RD [Red]

OLF-LT-40X30SW [White]

Light emitting surface：40mm×30mm

OLF-LT-40X30SW [White]

OLF-LT-92RD [Red]

Light emitting surface：92mm×92m

OLF-LT-92RD [Red]

OLF-LT-92SW [White]

Light emitting surface：92mm×92m

OLF-LT-92SW [White]

Characteristics/Data

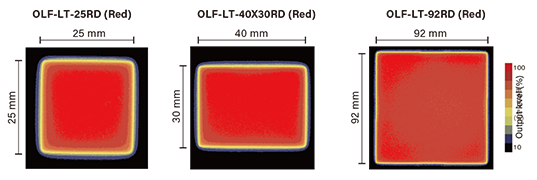

Uniformity (Relative irradiance)

Uniformity (Relative irradiance) / OLF-LT-25RD (Red) / OLF-LT-40X30RD (Red）/ OLF-LT-92RD (Red)

(Data is for reference only. Not a guarantee of product quality.)

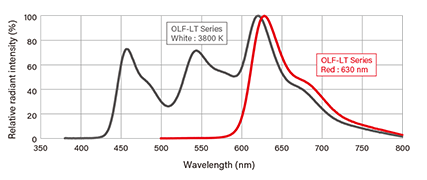

Spectral distribution

Spectral distribution

(Data is for reference only. Not a guarantee of product quality.)

Dimensions

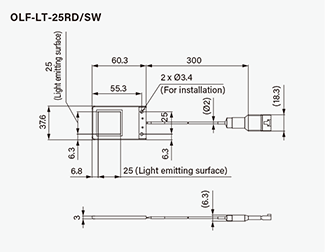

External dimensions diagram (mm)

OLF-LT-25RD/SW

OLF-LT-25RD/SW

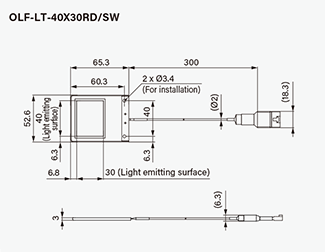

OLF-LT-40X30RD/SW

OLF-LT-40X30RD/SW

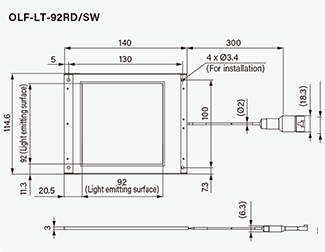

OLF-LT-92RD/SW

OLF-LT-92RD/SW

Dedicated Controller

Dedicated controller with predictive maintenance function (lifetime prediction)

Automatically recognizes connected lights and accumulates data on light usage
*Use OC-G-5646-2-ET when using OLF-LT-92 model in overdrive mode.

OC-0736-1-ET

OC-0736-1-ET

  • 24 VDC Input
  • Equipped with 1 channel
  • Regular Emission, ON/OFF Emission, Strobe Emission (With Overdrive Mode)
  • Configuration via Ethernet or buttons on the panel
  • Strobe Light Emission Time Setting: 100 µs to 10 ms (100 µs units)
  • Light Emission Delay Time Setting: 2 µs to 10 ms (100 µs units)
  • Weight: 300g max.

OC-0736-1-ET page

OC-G-5646-2-ET

OC-G-5646-2-ET

  • This product is a controller made by Gardasoft.
  • 24 VDC Input
  • Equipped with 2 channels
  • Regular Emission, ON/OFF Emission, Strobe Emission (With Overdrive Mode)
  • Configuration via Ethernet
  • Strobe Light Emission Time Setting: 10 µs to 10 ms (1 µs units)
  • Light Emission Delay Time Setting: 2 µs to 10 ms (1 µs units)
  • Weight: 550g max.

OC-G-5646-2-ET page

Notifies the user regarding recommended lighting replacement period*

Three stages of lifetime status
100～30% Good (no problems)
20% Lifetime warning (replacement period approaching)
0% Lifetime expired (replacement recommended)

*Settings can be verified using a web browser while the lights are connected to the controller and the controller is connected to a PC via LAN connection.

Regarding the recommended lighting replacement period

Expected Service Life (Continuous Lighting, Dimmer 100%, Ambient Temperature 40°C, Design Value Until Irradiation Amount Drops to 50%) * Not a guaranteed value. When the expected service life is at 20%, the "Lifetime warning" notice is displayed, and when at 0%, the "Lifetime expired" notice is displayed. *See the specifications below for the expected service life of each light.

Dedicated Cable

Optional extension cable

Model name OLCB-2 OLCB-3 OLCB-5
Cable length 2 m 3 m 5 m
Weight 127 g max. 182 g max. 292 g max.

OLCB-2 page

OLCB-3 page

OLCB-5 page

OLCB external dimensions diagram(mm)

OLCB external dimensions diagram(mm

*A 1 m cable is supplied with this light.
