Intensity Control Units [Light Units with Intensity Control Unit ]

The light intensity can be set to any of the 126 levels by adjusting the Intensity Control Unit.

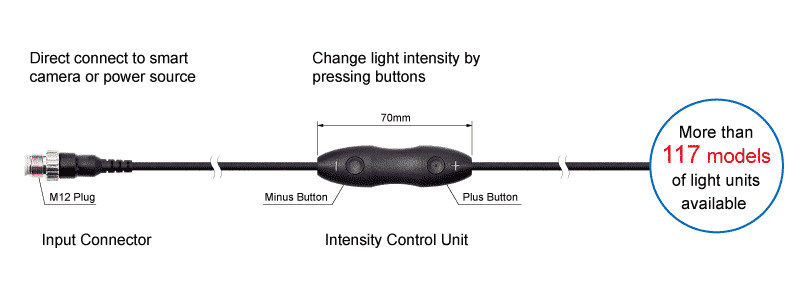

The IU Series has an M12 input connector, to which you can connect smart cameras and other devices to supply power.

Download Pamphlet PDF


With the IU Series, there is no need for an external controller to change light intensity.

Characteristics / Data

Common specifications

Lighting method Continuous lighting
Drive method Constant-voltage system
Intensity control method PWM control
PWM frequency 125 kHz
Input voltage (rating) 24 VDC
Input voltage (range) 21.6 to 24 VDC
Input connector M12 (4 pins, male)
Cable length 670 mm (including the Intensity Control Unit)

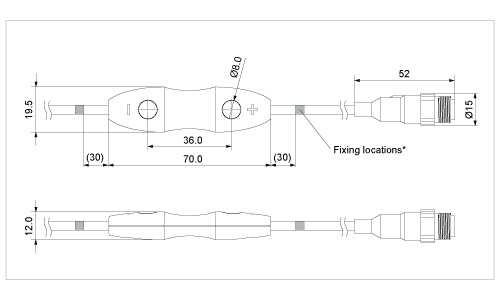

Intensity Control Unit

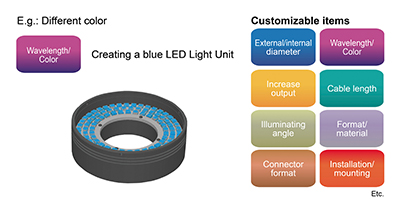

Custom Order Example

Please contact your CCS sales representative.
