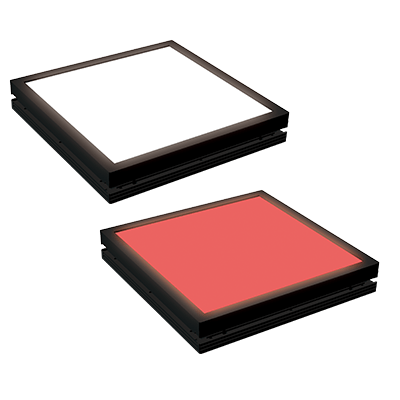

TH-PF Series
TH-PF Series flat lights for high-power strobe lighting.
Uniform diffuse light for backlight illumination.
- Increase the speed of liquid level and shape/appearance inspections.
- Freely adjustable flash timing enables strobing within the exposure period of the camera.
- Solves your xenon flash lamp problems.
Features of PF Series
“Extreme Power” Strobe Lights
The PF Series high-power strobe lights achieve greater output power than conventional products when used with the dedicated control units.
Improve productivity on high-speed inspection lines in a wide range of applications.
Comparison of images with the conventional product*
![Line speed: 1x](png/pf_features_01_e.png)
![Line speed: 14 x](png/pf_features_02_e.png)
*Comparison between the LDR-PF-36SW and LDR2-32SW2 (conventional product).
Brightness Comparable to Xenon Flash Lamps
Achieved the same inspection speed made possible by xenon lamps.
![15 W xenon flash lamp Strobe time: 1.75 μs(measured value)](png/pf_features_03.png)
15 W xenon flash lamp
Strobe time: 1.75 μs(measured value)
![High Power Strobe Light Unit Strobe time: 15 μs](png/pf_features_04.png)
High Power Strobe Light Unit
Strobe time: 15 μs
Using the Flash As a Camera Shutter
The high-power strobing enables instantaneous imaging.
Eliminating Image Blur
Horizontal Blur
![Conventional product:Long exposure period and insufficient brightness result in image blur.The image is blurred in fast moving production lines.](png/pf_features_06_e.png)
![PF Series:High brightness allows for short exposure time and reduces blur.Applicable to fast moving production lines.](png/pf_features_07_e.png)
Vertical Blur
![Conventional product:Adjusting aperture to compensate for dim lighting reduces depth of field. Vibration causes image blur.](png/pf_features_08_e.png)
![PF Series:High brightness allows for smaller aperture and increased depth of field.Image unaffected by vibration.](png/pf_features_09_e.png)
Freely Adjustable Flash Timing
You can use the lighting delay time setting of the control unit to adjust the timing of the flash to be within the exposure period of the camera.
![You can use the lighting delay time setting of the control unit to adjust the timing of the flash to be within the exposure period of the camera.](png/pf_features_10_e.png)
Details on the High-Power Strobe Control Units
PF-A4048-2 (2-channel model) / PF-A16048-4 (4-channel model)
Wide Variety of Available Light Units
The lineup includes 76 models with different form factors, sizes, and LED colors.
The data included is for reference only. Actual values may vary.
Characteristics/Data
Applications
- Liquid level inspection of liquids in plastic bottles and other containers
- Shape inspection of semiconductors and other electronic components
- Shape inspection of automotive parts
- Shape inspection of pills and other pharmaceutical products
- Shape inspection of cans

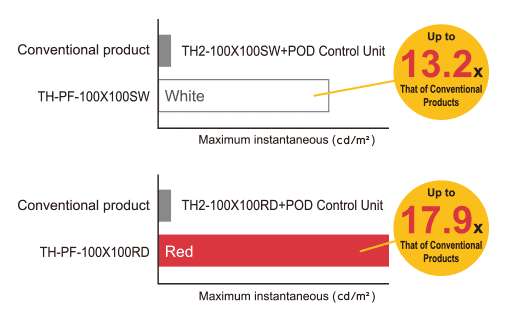

Brightness comparison versus conventional products
*Comparison of peak luminance
Data

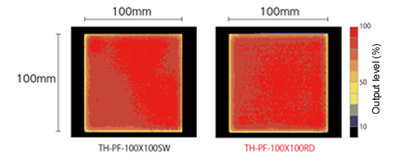

Uniformity (Relative Irradiance)
![TH-PF Series Uniformity (Relative Irradiance)](png/th-pf_uniformity_e.png)

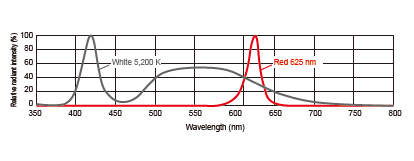

LED Properties
![TH-PF Series LED Properties](png/th-pf_spectral_distribution_e.png)
The graph included is for reference only. Actual values may vary.
TH2-100X100SW + POD Control Unit TH-PF-100X100SW + PF Control Unit
*You can make the light units on multiple channels turn ON/OFF with a single trigger input signal to one of the trigger input connector pins.
You can use the lighting delay time setting of the Control Unit to adjust the timing of the flash to be within the exposure period of the camera. Details on the High-Power Strobe Control Units PF-A4048-2 (2-channel model) / PF-A16048-4 (4-channel model) The number of product lineups and company information in the video are from 2017.Imaging Example
Imaging example: liquid level testing for Disinfectant Solution
(Comparison of peak illuminance at LWD 55 mm)Workpiece:
Disinfectant SolutionConventional product
(Light emission time: 100µs)TH-PF
(Light emission time: 100µs)
Accurately detect liquid level and label position.Example configuration
Dedicated Control Units
Maximize the Performance of High-Power Strobe Light Units
PF-A4048-2 (2 channels)
PF-A16048-4 (4 channels)
Freely Adjustable Flash Timing
