LDF-NB Series
Lights for Interference Fringe Inspection LDF-NB Series
Lights that make coating presence or unevenness on thin film visible
* Interference fringes: Alternating bright and dark bands that can be observed when light is reflected from the top and bottom layers of a thin film.
Features
Features

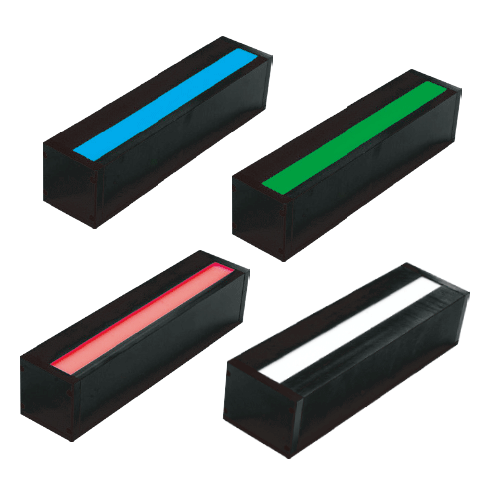

- Replacement for fluorescent lights and sodium vapor lamps
- CCS unique optical technology enables lower speckle noise*1
- Four emission colors (red, green, blue, RGB) available to suit individual needs
*1 Speckle noise is a typical phenomenon associated with laser diodes.
CCS-LT (CCS Leading Technology)
LDF-NB Series is a CCS-LT brand product.
"CCS Leading Technology" is a new CCS product brand providing advanced technologies.
Its purpose is to introduce newly developed technologies to the market early and to broaden our range of solution proposals.
* The warranty period is for half a year from when the product ships. Emission amounts not guaranteed.
Imaging Example

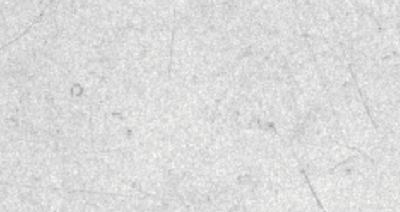

Glass Lamination Inspection

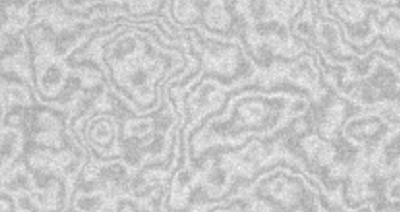

Film Coating Irregularity Inspection*

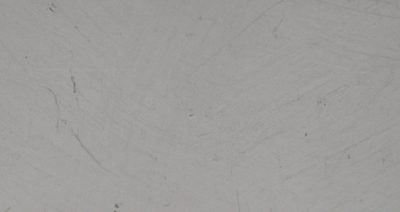

(no coating)

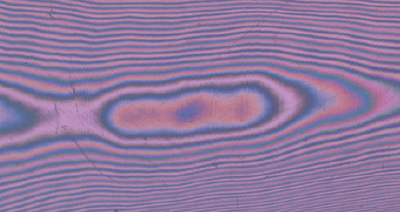

(with coating)
* Imaged with a monochrome camera
Usage Example
Applications

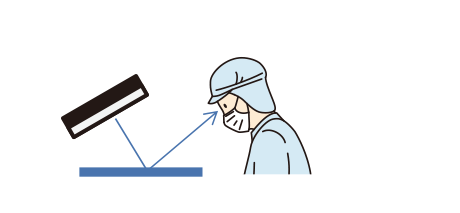

Visual inspection

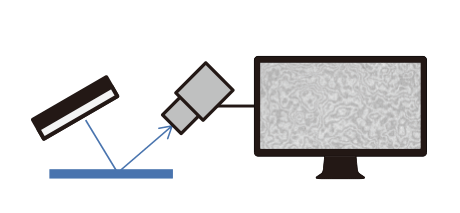

Camera inspection
- Inspecting uneven coatings on films and glass
- Inspecting laminated glass for irregularities
- Inspecting wafer coatings for defects
Data
Data (Representative Example)

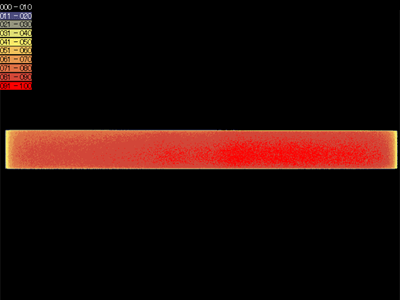

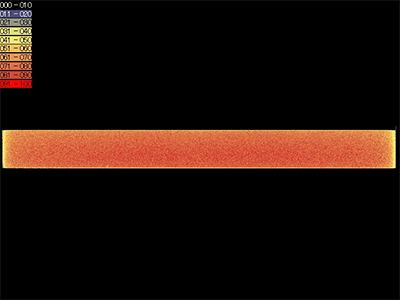

Uniformity (Relative radiance)

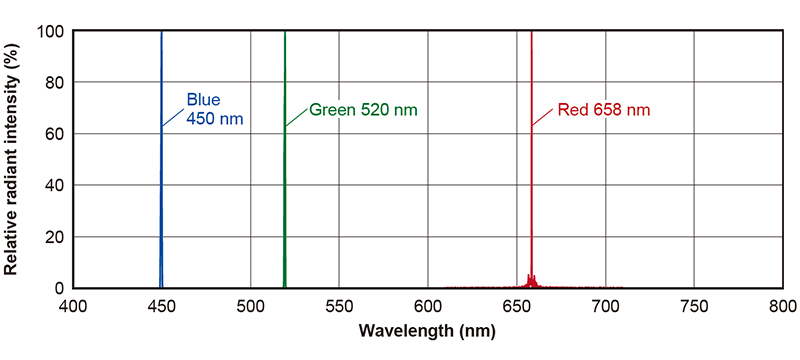

Spectral distribution
The data included is for reference only. Actual values may vary.
Custom Order
Custom Order
Coaxial types, flat types, and other shapes and sizes are available for custom order.
