IR Series Infrared Lights (over 1000-nm type)

IR Series Infrared Lights (over 1000-nm type)

  • Lineup of 6 Wavelengths: 1050nm, 1200nm, 1300nm, 1450nm, 1550nm, 1650nm.
  • SWIR system consultation (lights + camera + lens).
  • High Power Up to 3.4 times * that of conventional products.

    (*In comparing LDL-74X27IR105-24 with LDL2-74X30IR105)

  • Custom orders available for different shapes and sizes

Application and Imaging Example

Application Example

  • Moisture content and water droplet inspection
  • Inspection of package contents
  • Detection of foreign matter in packaging seal (PE, etc.)

Imaging Example

Wafer transmission inspection

  • BEFORE (Visible light)

  • AFTER (IR 1200nm)
    AFTER (IR 1200nm)

Wet sheet moisture content inspection

  • BEFORE (Visible light)

  • AFTER (IR 1450nm)

Data

For data of each model, please check the model page from the lineup.

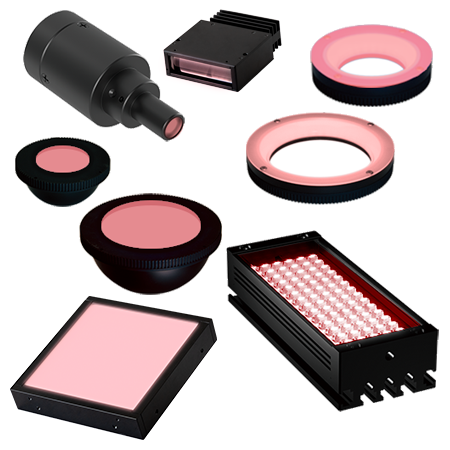

IR Series Infrared Lights (over 1000-nm type) Model Lineup

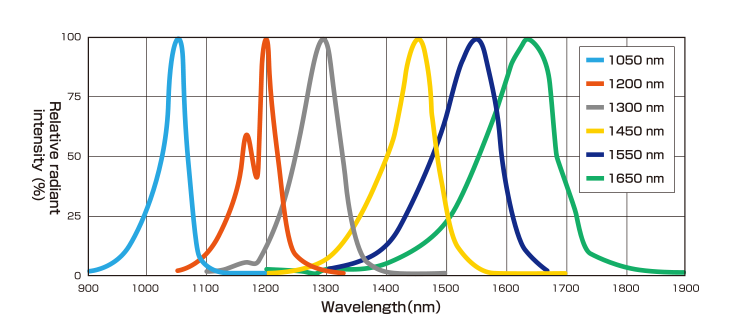

Lineup of 6 Wavelengths

Comparison Data

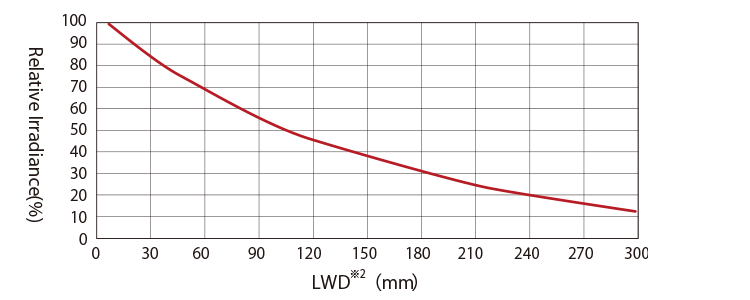

Relative Irradiance*1 Graph (LWD*2 Characteristics) (LDL2-74X30IR105（Narrow type）)

*1 Irradiance on the optical axis
*2 Illuminating distance from the light unit to the workpiece

Directional Characteristics

  • LDL2-74X30IR105
  • LDL2-74X30IR120
  • LDL2-74X30IR130
  • LDL2-74X30IR145
  • LDL2-74X30IR155
  • LDL2-74X30IR165
  • LDL2-74X30IR105-WD
  • LDL2-74X30IR120-WD
  • LDL2-74X30IR130-WD
  • LDL2-74X30IR145-WD
  • LDL2-74X30IR155-WD
  • LDL2-74X30IR165-WD

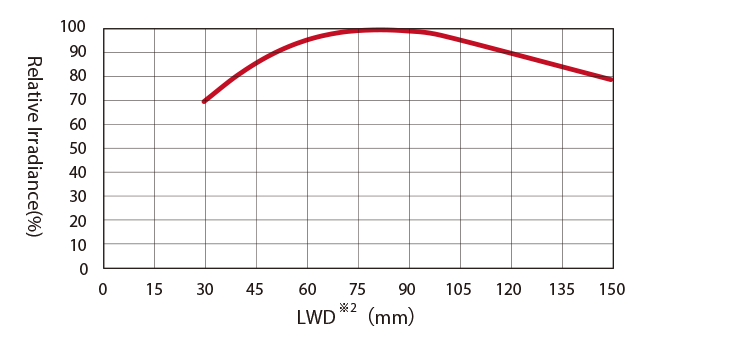

Relative Irradiance*1 Graph (LWD*2 Characteristics) ( HPR2-100IR105 )

Relative Irradiance ( HPR2-100IR105 )

*1 Irradiance on the optical axis
*2 Illuminating distance from the light unit to the workpiece

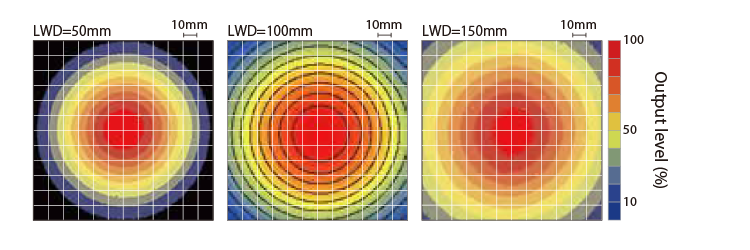

Uniformity (Relative irradiance) ( HPR2-100IR105 )

Uniformity (Relative irradiance) ( HPR2-100IR105 )

Lineup

Series Model name*1 Input Power Power consumption Weight
1050 nm 1200 nm 1300 nm 1450 nm 1550 nm 1650 nm
HPR2

HPR2-100IR□□

 24 V 13 W 11 W 10 W 8.6 W 8.6 W 8.6 W 170 g

HPR2-150IR□□

 19 W 16 W 15 W 13 W 13 W 13 W 250 g
LDL2

LDL2-74X30IR□□(-WD)*2

 8.4 W 5.7 W 5.7 W 5.7 W 5.3 W 5.3 W 100 g
TH2

TH2-100X100IR□□

 16 W 13 W 13 W 12 W 12 W 12 W 300 g
HPD2

HPD2-100IR□□

 13 W 11 W 10 W 8.6 W 8.6 W 8.6 W 160 g

HPD2-150IR□□

 19 W 16 W 15 W 13 W 13 W 13 W 285 g
LN-HK

LN-60IR□□-HK

 11 W 7.1 W 7.1 W 6.6 W 6.6 W 6.6 W 222 g
HLV

HLV-22IR□□

 700 mA 1.2 W 1.2 W 1.1 W 1.1 W 1.1 W 1.1 W 32 g
Series Model name*1 Input Power Power consumption Weight
1050 nm 1200 nm 1300 nm 1450 nm 1550 nm 1650 nm
  • Other sizes, wavelengths and shapes are also available by custom order.
  • *1　□□in the model name indicates the LED Peak wavelength.　
    Model name 105：1050nm、120：1200nm、130：1300nm、145：1450nm、155：1550nm、165：1650nm.
  • *2　"-WD" at the end of the model name : Wide type

Options

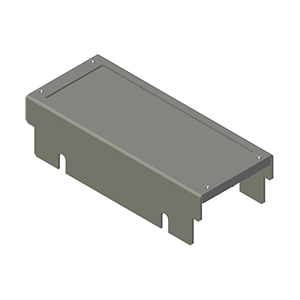

Polarizing Plates

Use with a polarizing filter to remove the light's surface reflection.
polarizing plate ready ：Bar Type (LDL2 Series)、Flat Type (TH2 Series)、Line Type (LN-HK Series)

Bracket

Bar Type (LDL2 Series) : The angle of illumination can be adjusted as you desire when securing the light unit.
Flat Type (TH2 Series) : This is a dedicated bracket for affixing the TH2 series light units. The TH2 series can be affixed in four points.

Light Joint Bracket

Combine with a ring light to achieve imaging by light switching and simultaneous lighting.
light joint bracket ready ：Ring Type (HPR2 Series)、Dome Type (HPD2 Series)

Expansion Mounting Bracket

Achieves installation using installation holes with a larger gap than the light unit body installation holes,or installation on a vertical surface.
expansion mounting bracket ready ：Ring Type (HPR2 Series)、Dome Type (HPD2 Series)
Series Model name*1 Brackets Polarizing Plates Extension cables Recommended Control Units
HPR2

HPR2-100IR□□

BK-100-JO


BK-100-CI

 -

FCB*3 Straight Cable


FCB-W*4 2-branch Cable


FCB-F 4-branch Cable


FRCB-HLV3-10 Robot Cable

PD3 Series

CC-ST-1024*5


PSB Series

POD Series*2

HPR2-150IR□□

BK-150-JO


BK-150-CI

 -

PD3 Series

PSB Series


POD Series*2
LDL2

LDL2-74X30IR□□(-WD)*7

BK-LDL2

PL-LDL2-74X30-WGFHO

PL-LDL2-74X30-WGFVE

PD3 Series

CC-ST-1024


PSB Series

POD Series*2
TH2

TH2-100X100IR□□

BK-TH-LE12

PL-TH-100X100-WGFHO

PD3 Series

PSB Series


POD Series*2
HPD2

HPD2-100IR□□

BK-100-JO


BK-100-CI

 -

PD3 Series

CC-ST-1024*5


PSB Series

POD Series*2

HPD2-150IR□□

BK-150-JO


BK-150-CI

 -

PD3 Series

PSB Series


POD Series*2
LN-HK

LN-60IR□□-HK

 -

PL-LN-60-WGFHO

PD3 Series

CC-ST-1024*6


PSB Series

POD Series*2
HLV

HLV-22IR□□

 - -

FCB*3 Straight Cable


FRCB Robot Cable


FCB-HLV3-10 Straight Cable


FRCB-HLV3-10 Robot Cable

PD3 Series

CC-PJ-0707


PJ Series

PJ2 Series
Series Model name*1 Brackets Polarizing Plates Extension cables Recommended Control Units
  • Other sizes, wavelengths and shapes are also available by custom order.
  • *1 □□in the model name indicates the LED peak wavelength.　
    Model name 105：1050nm、120：1200nm、130：1300nm、145：1450nm、155：1550nm、165：1650nm.
  • *2 For information on the combination of light units and POD series control unit, 　　 please refer to How to Check Lighting Connection Combinations.
  • *3 The cables with a model name that ends with “-ME7”,“-EL2”, “-PF”, or “-PF-EL9” are not included.
  • *4 The cables with a model name that ends with “-EL2” are not included.
  • *5 CC-ST-1024 is not applicable to the HPR2-100IR105, HPR2-100IR120, HPD2-100IR105, HPD2-100IR120.
  • *6 CC-ST-1024 is not applicable to the LN-60IR105-HK.
  • *7 "-WD" at the end of the model name : Wide type

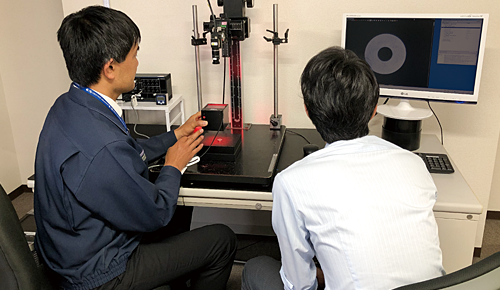

Testing Room

SWIR System consultation (lights + camera + lens)

CCS offers free testing for machine vision applications including SWIR imaging. Our expert staff will recommend the optimal lighting solution for your application.
