TH2 Series

Increased brightness better than that of the TH series.
These Light Units are applicable to high-speed production lines to enhance productivity.

Download Pamphlet PDF

Features of TH2

Features

Achieves higher luminance

With their increased brightness, these Flat Lights are available at high-speed production lines.

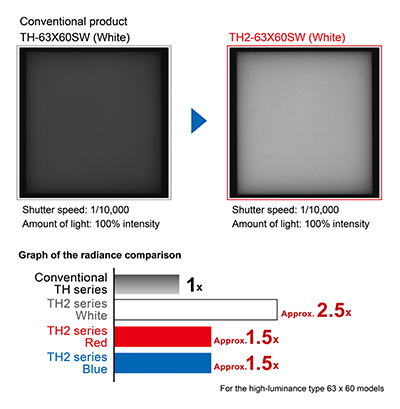

Increased output greater than that of the conventional products

Install freely to match your environment

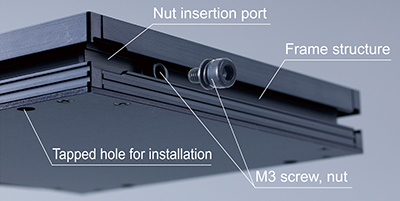

Uses installation method by frame structure. Tapped holes for installation on the side and on the bottom.

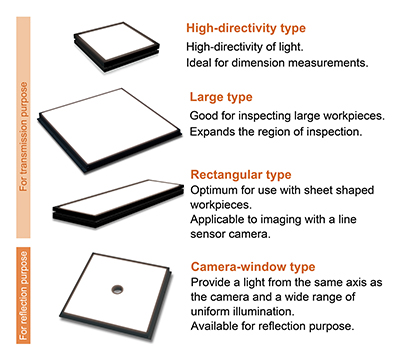

Rich product lineup

Our abundant product lineup can meet a wide range of needs. A total of 73 models of different types of Flat Lights.

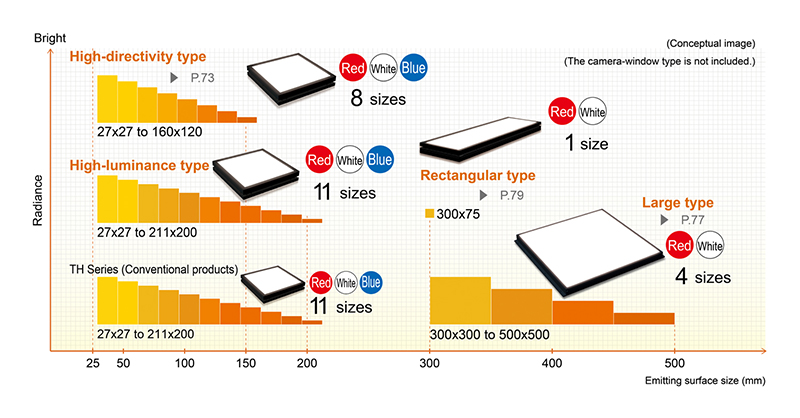

Brightness and size of each Light Unit type

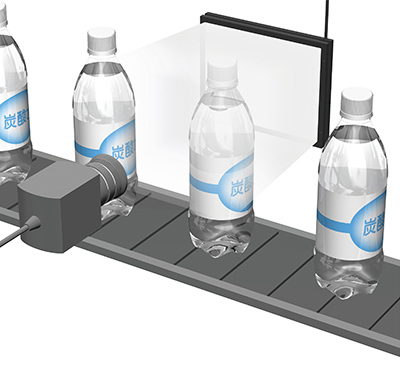

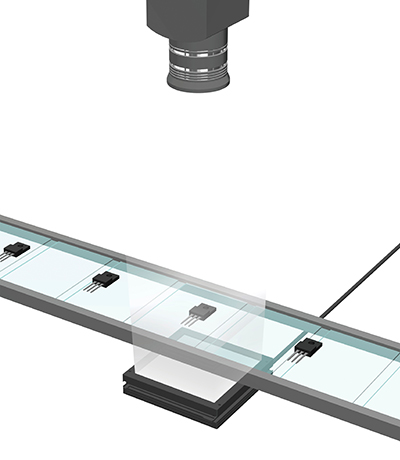

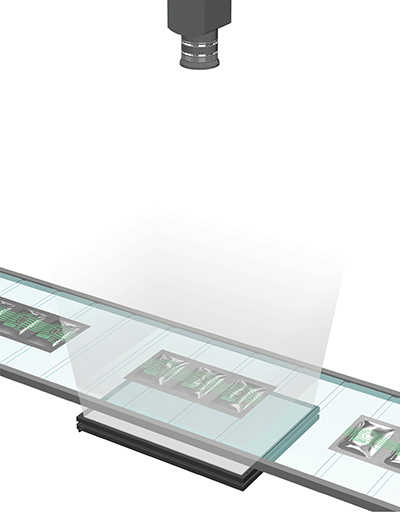

Example configuration

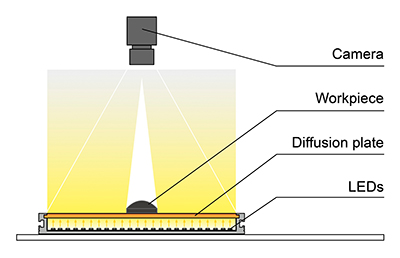

Achieved high output with a flat shape. Light from the LEDs is transmitted through the diffusion panel and illuminated on the rear of the workpiece.

TH2-140X105

Characteristics/Data

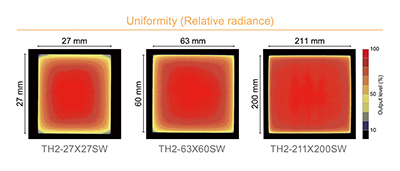

Data : Uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

Imaging example

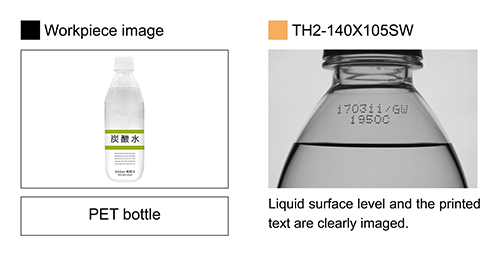

Imaging of liquid surface level in PET bottle

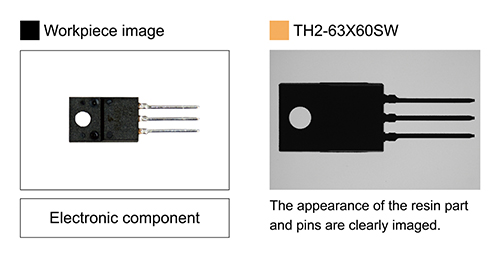

Imaging of the appearance of electronic components

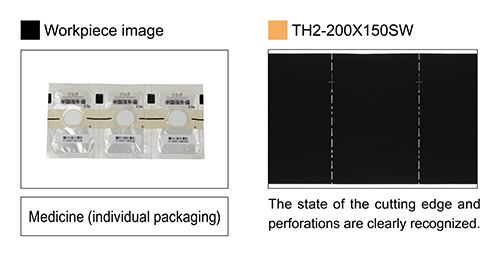

Imaging of the appearance of medicine (individual packaging)

High-Directivity Type

Features

Achieved high directivity of light

These high-output flat light units are equipped with improved light directivity. This makes them ideal for dimension measurements and other inspections that require outline extraction of the workpiece.

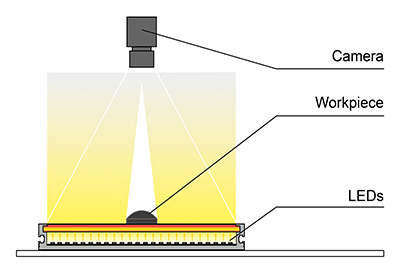

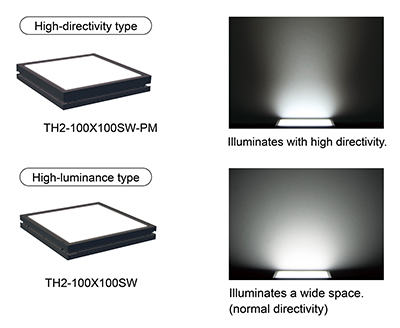

Comparison of light directivity

Comparison of images

Abundant emitting surface sizes

Abundant product lineup allows you to select the optimum size that will match your workpiece.

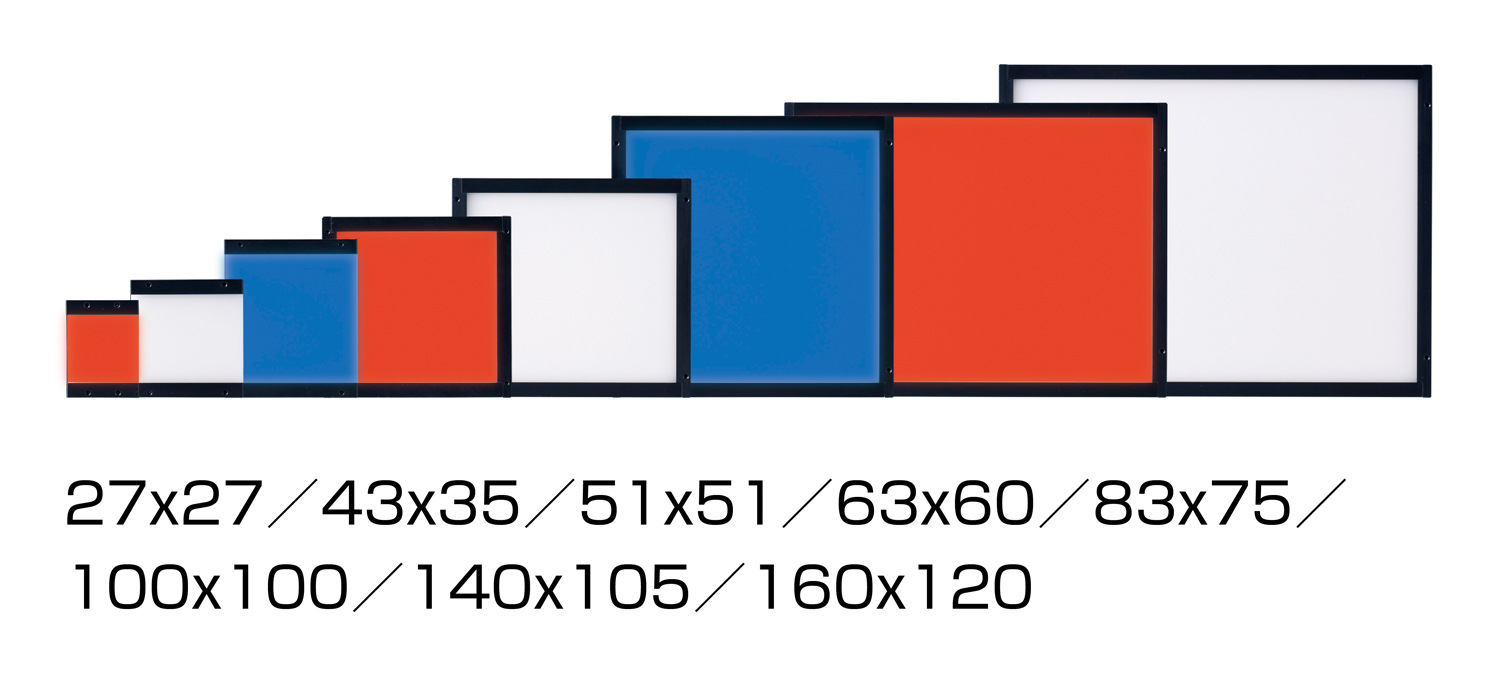

Emitting surface size (mm)

LED colors

The product lineup includes white, red, and blue light units, which can deal with a wide variety of inspection contents.

The rich lineup consists of 24 models, with 8 sizes in each color.

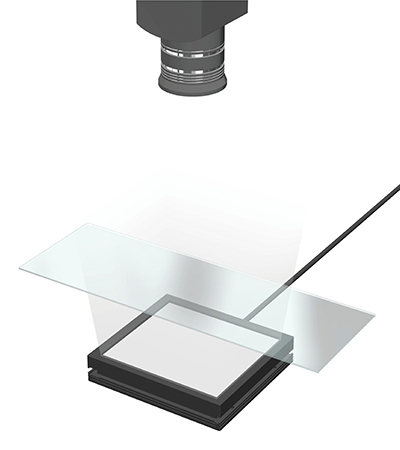

Example configuration

These high-output flat light units are equipped with improved light directivity. This makes them ideal for dimension measurements and other inspections that require outline extraction of the workpiece.

TH2-140X105-PM

Characteristics/Data

Data : Uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

LED properties

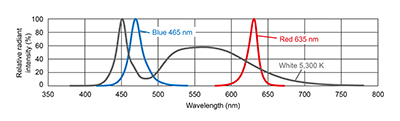

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Imaging Example

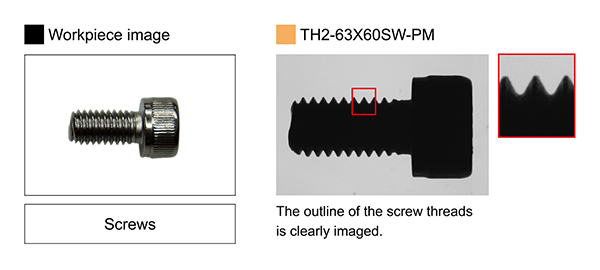

Imaging of the appearance of screws

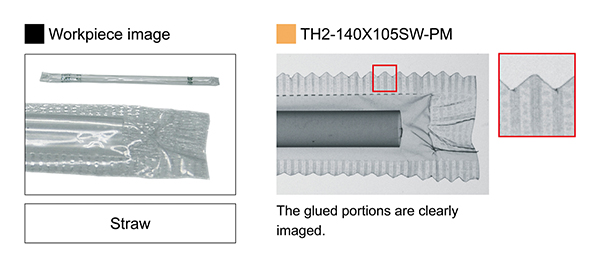

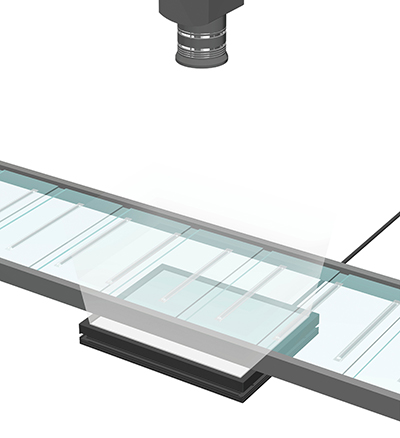

Imaging of the appearance of transparent straw bags

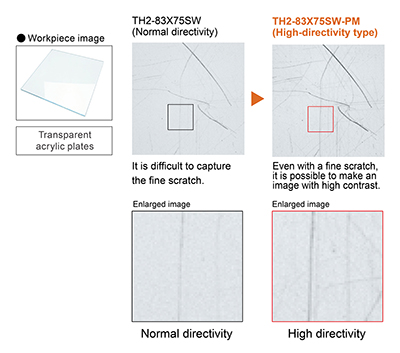

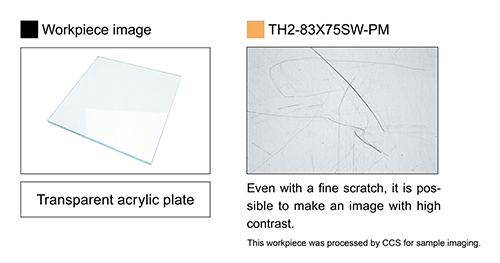

Imaging of the appearance of acrylic plates

Large Type

Features

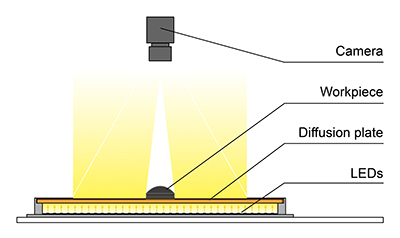

Example configuration

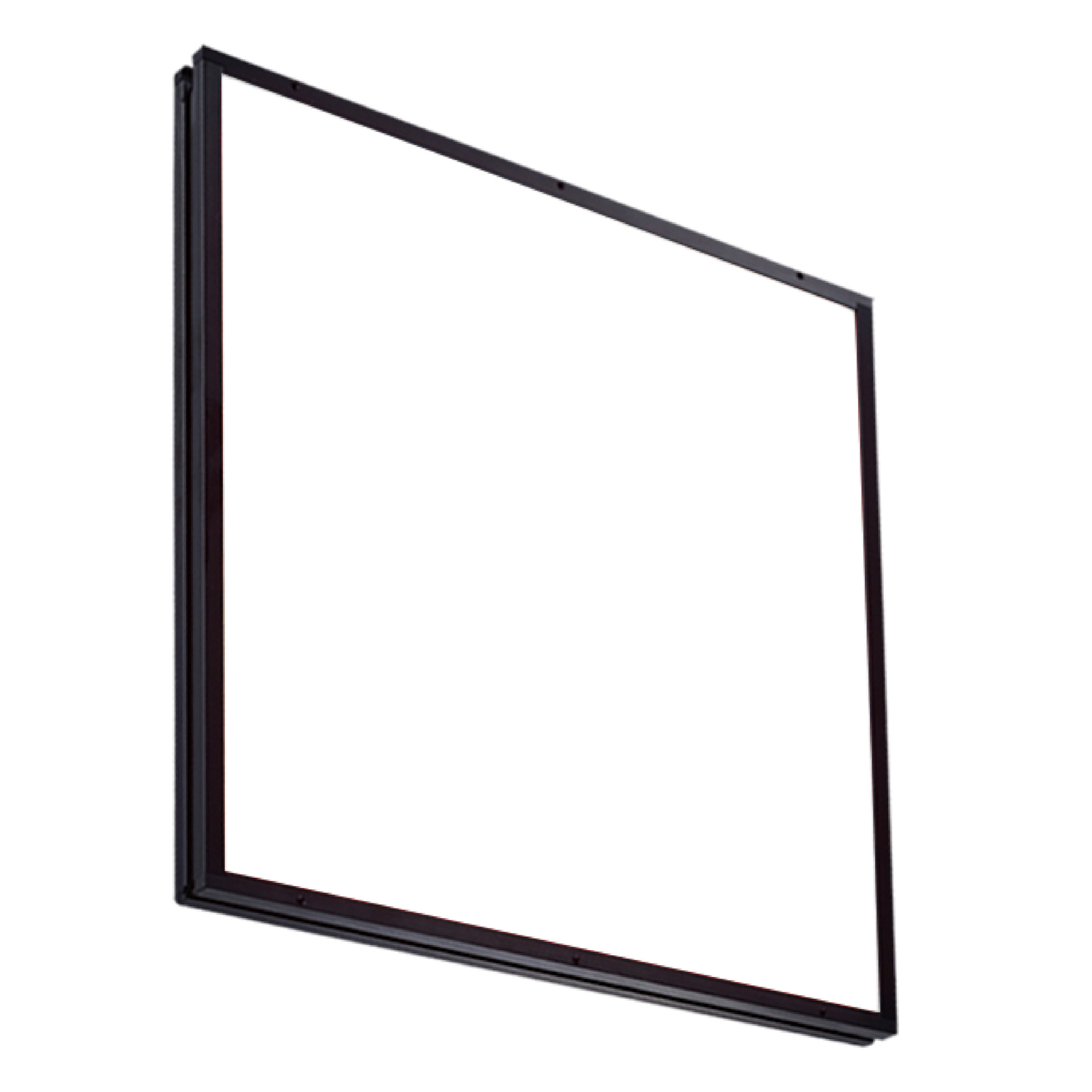

Flat light units with an emitting surface of up to 500 x 500 mm.
They are ideal for inspecting large workpieces and available to inspect a wide area.

TH2-300X300

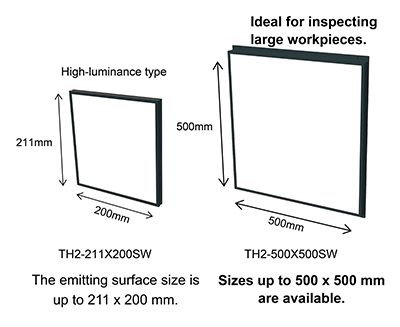

Comparison of emitting surface sizes

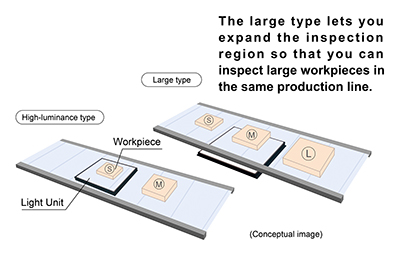

Comparison of the maximum workpiece size in a production line

Characteristics/Data

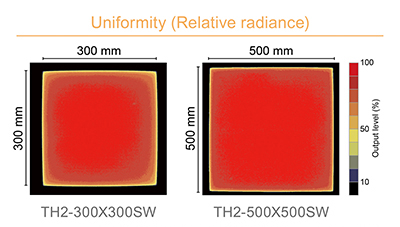

Data (Representative example)

※The data included is for reference only. Actual values may vary.

LED properties

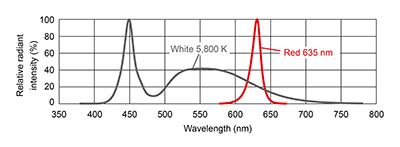

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

We accept custom orders.

Please feel free to inquire.

  • Shape modifications
  • Brightness increases
  • Changes in wavelength, etc.

Imaging Example

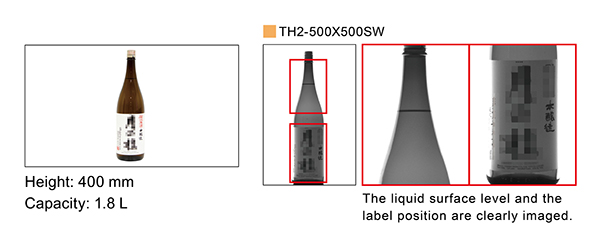

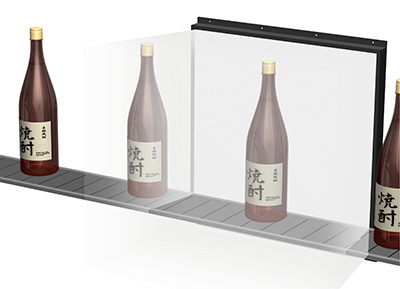

Liquid surface level in large bottles

Rectangular Type

Features

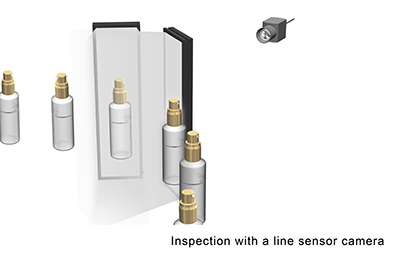

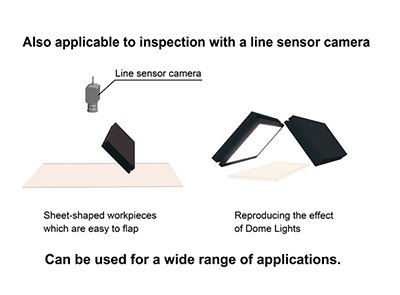

These flat lights are optimum for inspecting rectangular workpieces. Also applicable to inspections with a line sensor camera.

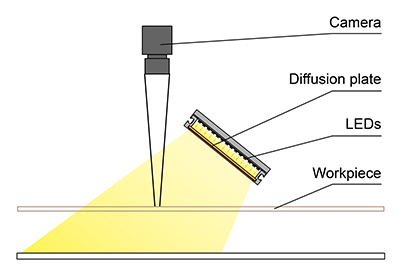

Example configuration

TH2-300X75

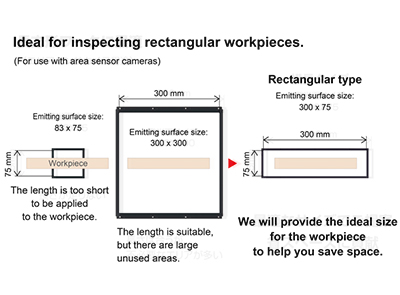

Comparison of emitting surface sizes

Characteristics/Data

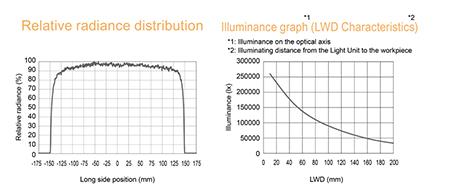

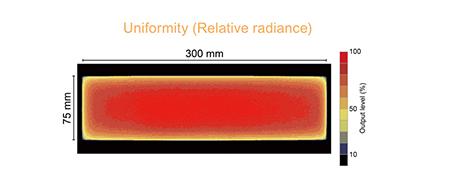

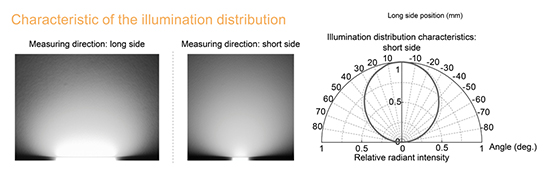

Data (Representative example)

※The data included is for reference only. Actual values may vary.

TH2-300X75SW

LED properties

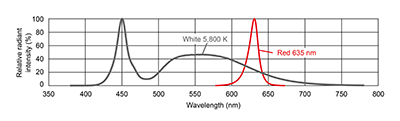

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order

Custom order example: size change

Manufactured with a light size that matches the workpiece

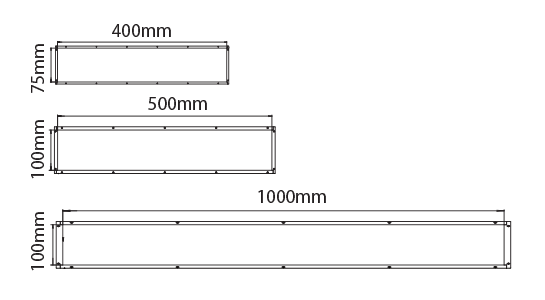

Example custom sizes

Previous custom orders
  • TH2-400X75xx
  • TH2-500X100xx
  • TH2-1000X100xx-ME
  • TH2-1760X60xx-ME
  • TH2-2000X100xx-ME

Imaging Example

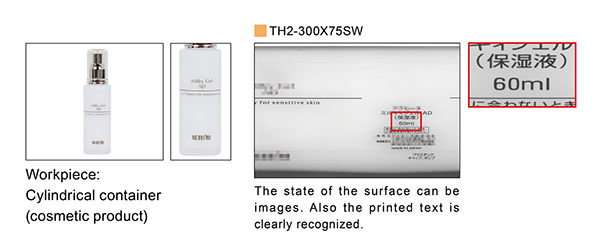

Appearance of cylindrical containers

For details about the lens

Camera-Window Type

Illumination from the same axis as the camera

Illumination from the same axis as the camera

Flat lights with a camera window at the center of the emitting surface. They do not serve as a back light but provide a light from the same axis as the camera like dome lights and coaxial lights.

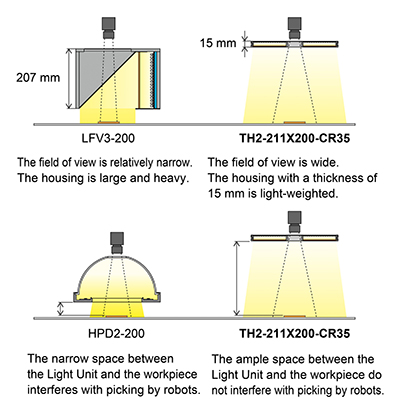

Comparison of structures

Uniform illumination of a wide range

These light units have a wider emitting surface compared to that of coaxial lights and dome lights. This enables uniform illumination of a wide range.

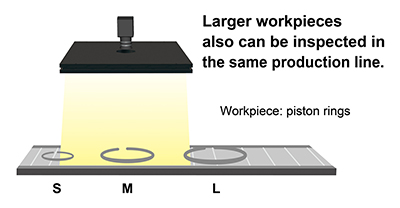

Applicable to a wide range of workpiece sizes

Product lineup

Available LED colors: white or red.
Three sizes of emitting surface: 150x150 mm, 211x200 mm, and 300x300 mm.
These light units can deal with a wide variety of inspection contents.

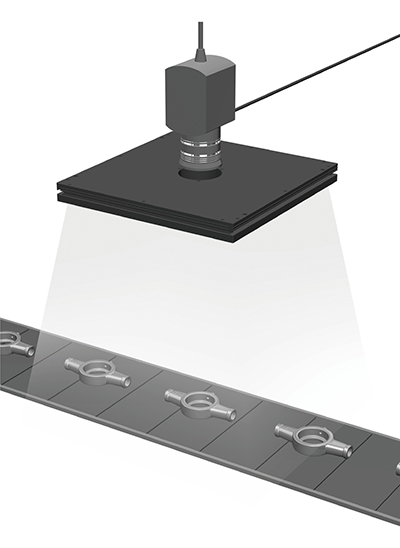

Example configuration

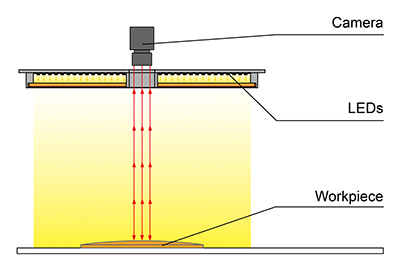

Flat lights with a camera window at the center of the emitting surface.They provide light from the same axis as the camera.

TH2-300X300-CR35

Characteristics/Data

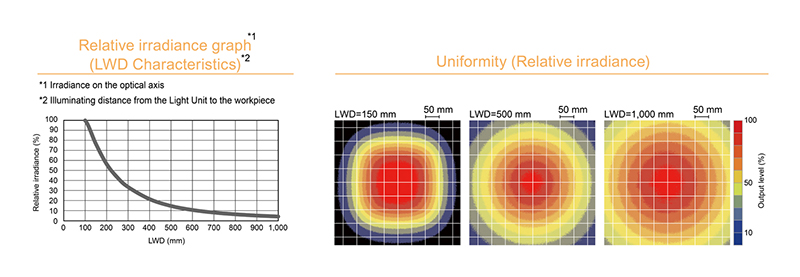

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

TH2-300X300SW-CR35

LED properties

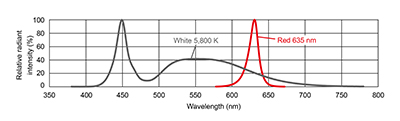

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

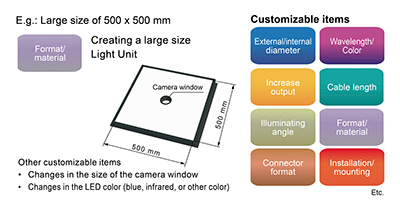

Custom Order Example

Imaging Example

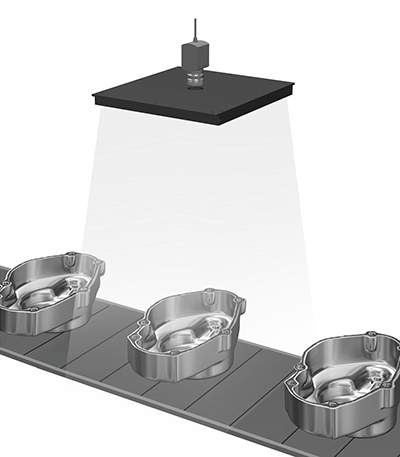

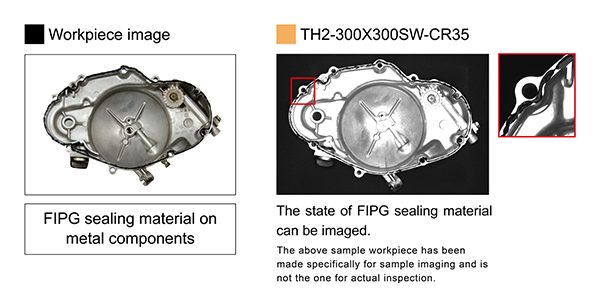

Imaging of FIPG sealing material on metal components

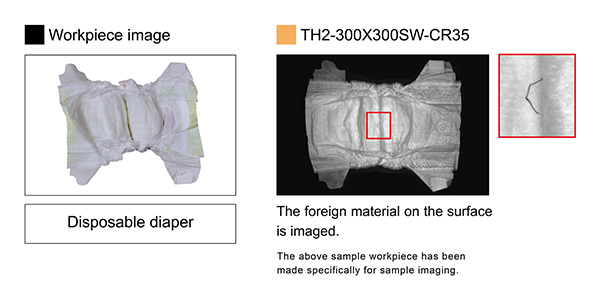

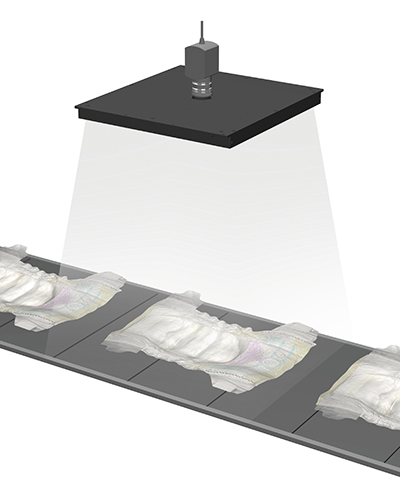

Imaging of stains and foreign materials in disposable diapers

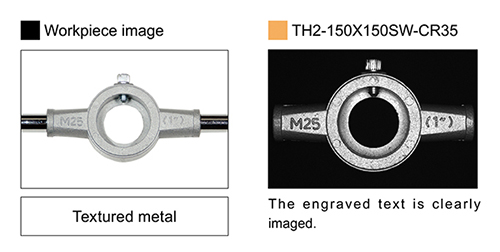

Imaging of engraved text on textured metal surface
