LFR Series

LEDs are embedded around a light-guiding diffusion plate.
Uniform light is radiated from a flat emitting surface.
The product lineup includes the LFR-100K and LFR-130K Light Units, in which light is radiated from an emitting surface arranged at an angle.

Features

LEDs embedded around a circular light-guiding diffusion plate.
Uniformly diffused light is illuminated from a flat emitting surface.

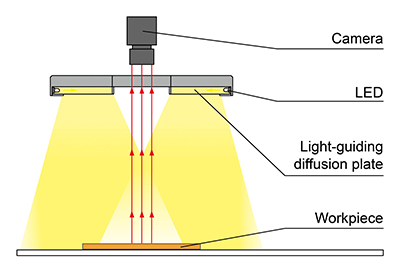

Example configuration

LFR-100

Characteristics/Data

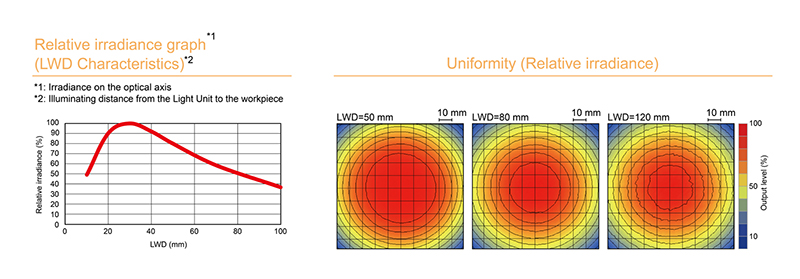

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

LFR-130RD2

Custom Order Example

We accept custom orders.

Please feel free to inquire.

  • Shape modifications
  • Brightness increases
  • Changes in wavelength, etc.

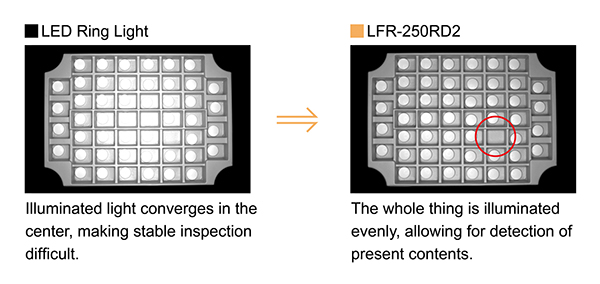

Imaging Example

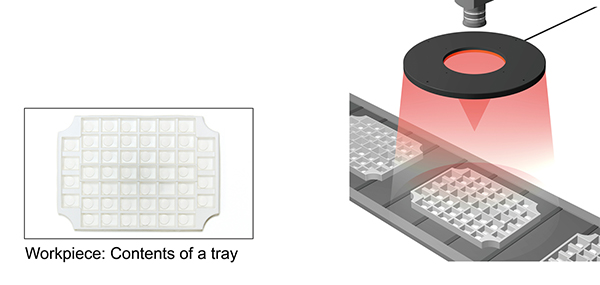

Imaging fordetecting contents of a tray
