HLND Series

Red lights unavailable from "Dec/31/2021".White lights unavailable from "Dec/31/2023".
Please contact us for the recommended alternative model.

Contact Us


Use of high intensity LEDs and unique illumination structure enables high power output.
The TT type units are used for transmission lighting and the RR type lights are used for reflection lighting.
The light-emitting surface length can be made from 100 mm to 2,700 mm in units of 100 mm.

Download Pamphlet PDF

Features

Can create up to a maximum of 2,700 mm

Provides a Light Unit with the optimal length to meet your needs.

Emitting surface length

From 100 mm to 2,700 mmCan be made in units of 100 mm

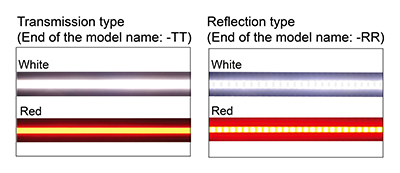

Two types, with different diffusion plate transmittance rate, are available

You can select from a uniform type perfect as transmission lighting, and a high output type perfect as reflection lighting.

Uses a unique illumination mechanism

We used surface-mounted LEDs and a unique illumination mechanism to achieve a high output Line Light. Two types of diffusion plates to be equipped are available. Select one to match your needs.

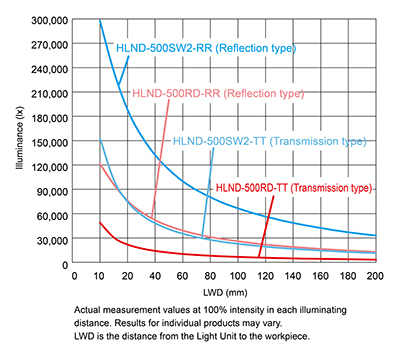

Illumination comparison for the HLND series

※The graph included is for reference only. Actual values may vary.

Applications

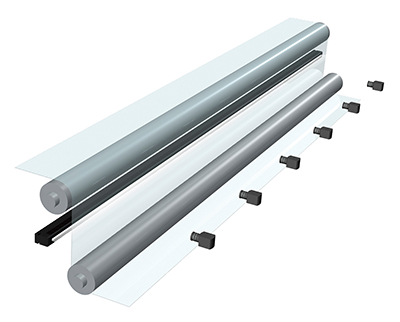

Foreign material inspection for clear film(Transmission type)

Visual inspection for color sheet steel (Reflection type)

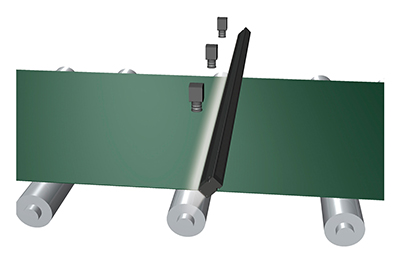

Example configuration

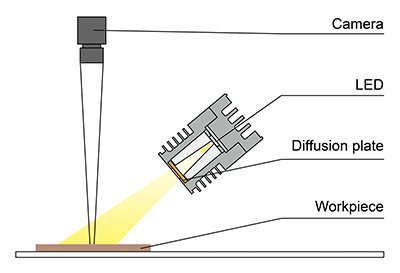

LEDs are mounted on a flat circuit board. The light is transmitted through the diffusion plate and diffused light is illuminated in a line shape.
The emitting surface can be made up to 2,700 mm long.

HLND series

Characteristics/Data

Data (Representative example)

※The graph included is for reference only. Actual values may vary.

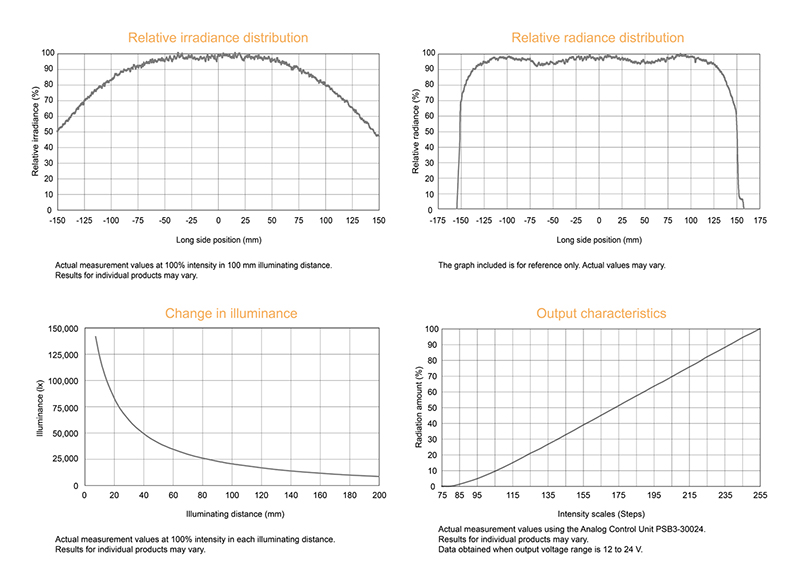

HLND-300SW2-TT (Transmission type)

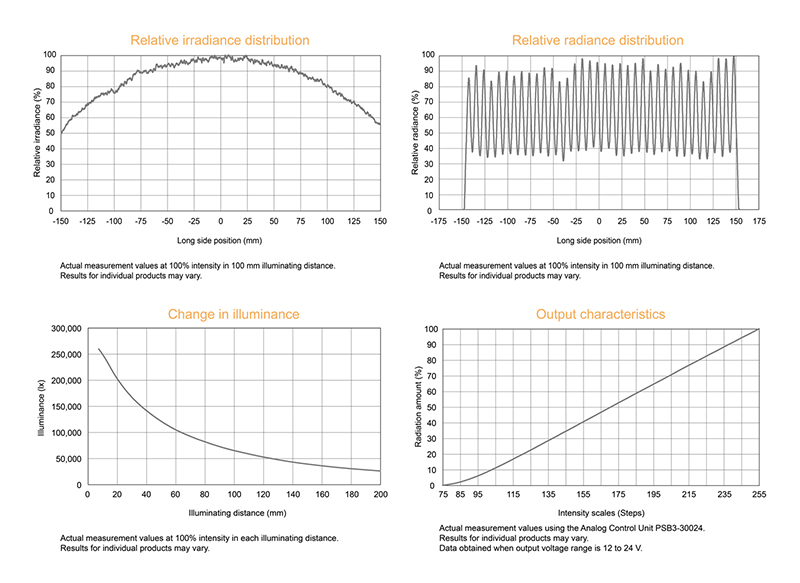

HLND-300SW2-RR (Reflection type)

LED properties

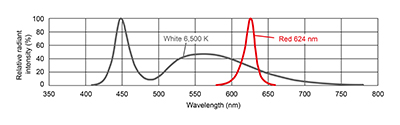

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

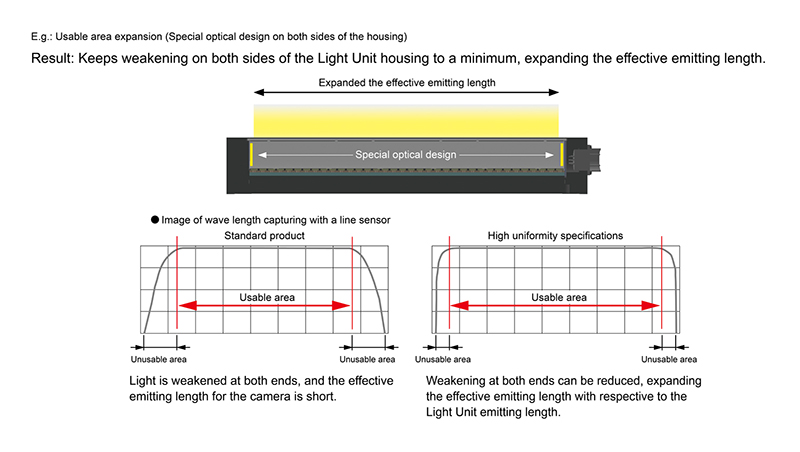

Custom Order Example

Please contact your CCS sales representative.
