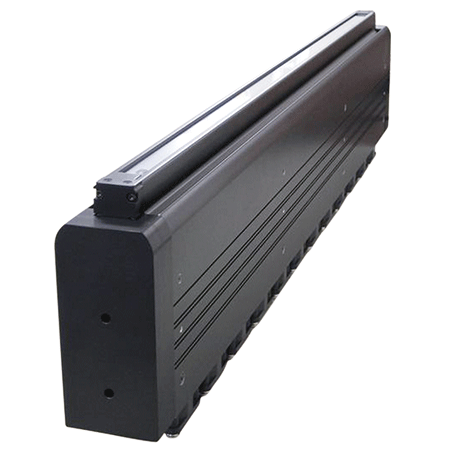

LN-GA Series
High-Illuminance Line Lights
- Well-Suited for High-Speed Line Scanning 2.8million lx LED
- Provides High Output to Easily Replace Metal halide lamp Sources
- Light emitting surface length up to 3 m for standard products.(* For sizes longer than 3 m, please contact us)
- Forced air cooling system with fans and unique design reduces exhaust airflow directed to the workpiece
- "n" in the model name indicates the light emitting surface length (in 100 mm units)
- "△" in the model name indicates the LED color with one of the following letters: SW (white), RD (red), or BL (blue)
- Available only in specific regions.Please contact your CCS sales representative for more information
![CCSxAItec](png/icn_ccsaitec.png)
Features / Imaging Example
High-Illuminance Line Lights
LN-GA Series
![2.8Million lx Measured at the illuminating distance of 0 mm, white](png/ln-ga_1_en.png)
![LED color red white blue](png/ln-ga_2_en.png)
![Light Emitting Surface Length Up to 3,000mm](png/ln-ga_3_en.png)
![RohmS COMPLIANT](png/ln-ga_4.png)
![”CE”](png/pscc-j1a_3.png)
Features
- Well-Suited for High-Speed Line Scanning 2.8million lx LED.
- Provides High Output to Easily Replace Metal halide lamp Sources.
- Light emitting surface length up to 3 m for standard products.
(* For sizes longer than 3 m, please contact us.) - Forced air cooling system with fans and unique design reduces exhaust airflow directed to the workpiece.
Fan Exhaust Airflow
Imaging Examples

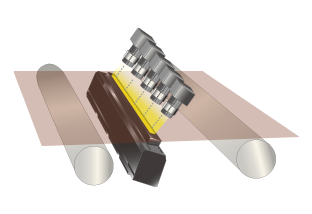

![Inspection for Coating Irregularities on Film with Light Transmission image](png/ln-ga_5.png)

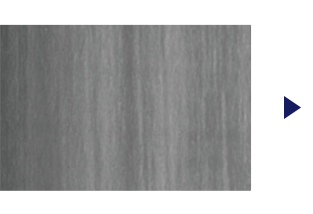

![Conventional line light image](png/ln-ga_6.png)
It is difficult to detect the coating irregularities due to lack of brightness.

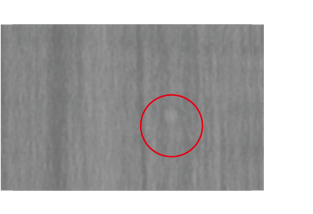

![LN-GA-series Light Unit image](png/ln-ga_7.png)
High-power light output makes it possible to detect the coating irregularities.
Other Applications
Steel plate inspection; glass inspection; sheet inspection; metal surface inspection; edge inspection; light source for line sensors, visual inspection, or image processing; etc.

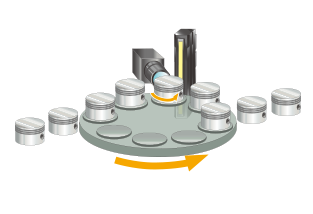

Visual Inspection of Pistons
Characteristics/Data

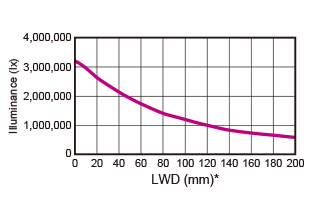

Illuminance Characteristics
*Distans from the Light unit to the workpiece.
The data included is for reference only. Actual values may vary.

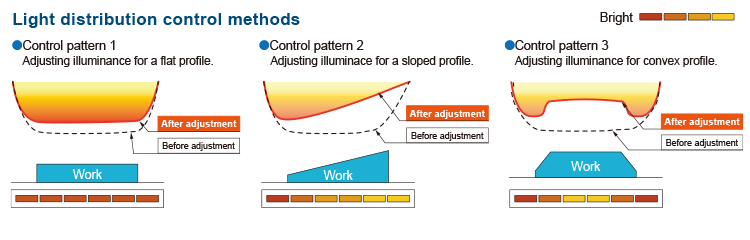

You can adjust the light intensity separately for each LED block.(25 mm)
Dimensions and specifications

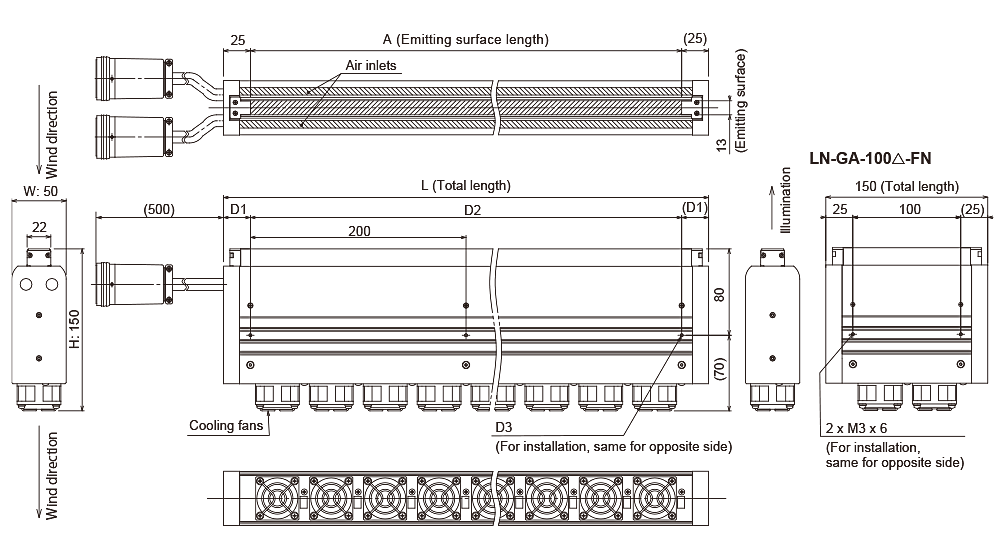

Dimensions
Please check the download document for details of the external dimensions.
Please check specifications for size details.
Specifications
Model name*1 | LxWxH (mm) | Emitting surface length (Dimension A)*2 (mm) |
D1 | D2 | D3 | Weight (kg) |
Number of LED blocks*3 | Power consumption |
Required light cable connection | Applicable Control Units |
---|---|---|---|---|---|---|---|---|---|---|
LN-GA-100△-FN | 150x50x150 | 100 | See the above diagram. | 1.5 | 4 | 77 | 12-pin metal connector, 5-pin temperature sensor connector, 2-pin fan connector |
PSCC-J1A-30048-0401 | ||
LN-GA-200△-FN | 250x50x150 | 200 | 25 | 1 x 200 = 200 | 2 x M3 x 6 | 2.3 | 8 | 154 | 12-pin metal connector x 2pcs., 5-pin temperature sensor connector, 2-pin fan connector |
|
LN-GA-300△-FN | 350x50x150 | 300 | 75 | 1 x 200 = 200 | 2 x M3 x 6 | 3.2 | 12 | 231 | ||
LN-GA-400△-FN | 450x50x150 | 400 | 25 | 2 x 200 = 400 | 3 x M3 x 6 | 4 | 16 | 308 | 37-pin metal connector x 2pcs. | PSCC-J1A-60048-0401 |
LN-GA-500△-FN | 550x50x150 | 500 | 75 | 2 x 200 = 400 | 3 x M3 x 6 | 4.8 | 20 | 384 | ||
LN-GA-600△-FN | 650x50x150 | 600 | 25 | 3 x 200 = 600 | 4 x M3 x 6 | 5.7 | 24 | 461 | ||
LN-GA-700△-FN | 750x50x150 | 700 | 75 | 3 x 200 = 600 | 4 x M3 x 6 | 6.5 | 28 | 538 | PSCC-J1A-10C48-0401 | |
LN-GA-800△-FN | 850x50x150 | 800 | 25 | 4 x 200 = 800 | 5 x M3 x 6 | 7.4 | 32 | 615 | 37-pin metal connector x 3pcs. | |
LN-GA-900△-FN | 950x50x150 | 900 | 75 | 4 x 200 = 800 | 5 x M3 x 6 | 8.2 | 36 | 692 | ||
LN-GA-1000△-FN | 1,050x50x150 | 1,000 | 25 | 5 x 200 = 1000 | 6 x M3 x 6 | 9.1 | 40 | 768 |
Model name*1 | LxWxH (mm) | Emitting surface length (Dimension A)*2 (mm) |
D1 | D2 | D3 | Weight (kg) |
Number of LED blocks*3 | Power consumption |
Light cable connection | Applicable Control Units |
---|---|---|---|---|---|---|---|---|---|---|
LN-GA-1100△-FN | 1,150x50x150 | 1,100 | 75 | 5 x 200 = 1000 | 6 x M3 x 6 | 9.9 | 44 | 845 | 37-pin metal connector x 3pcs. | PSCC-J1A-15C48-0401 |
LN-GA-1200△-FN | 1,250x50x150 | 1,200 | 25 | 6 x 200 = 1200 | 7 x M3 x 6 | 10.7 | 48 | 922 | 37-pin metal connector x 4pcs. | |
LN-GA-1300△-FN | 1,350x50x150 | 1,300 | 75 | 6 x 200 = 1200 | 7 x M3 x 6 | 11.6 | 52 | 999 | ||
LN-GA-1400△-FN | 1,450x50x150 | 1,400 | 25 | 7 x 200 = 1400 | 8 x M3 x 6 | 12.4 | 56 | 1,076 | ||
LN-GA-1500△-FN | 1,550x50x150 | 1,500 | 75 | 7 x 200 = 1400 | 8 x M3 x 6 | 13.3 | 60 | 1,152 | ||
LN-GA-1600△-FN | 1,650x50x150 | 1,600 | 25 | 8 x 200 = 1600 | 9 x M3 x 6 | 14.1 | 64 | 1,229 | 37-pin metal connector x 5pcs. | PSCC-J1A-10C48-0401 x 2 |
LN-GA-1700△-FN | 1,750x50x150 | 1,700 | 75 | 8 x 200 = 1600 | 9 x M3 x 6 | 15.0 | 68 | 1,306 | ||
LN-GA-1800△-FN | 1,850x50x150 | 1,800 | 25 | 9 x 200 = 1800 | 10 x M3 x 6 | 15.8 | 72 | 1,383 | ||
LN-GA-1900△-FN | 1,950x50x150 | 1,900 | 75 | 9 x 200 = 1800 | 10 x M3 x 6 | 16.6 | 76 | 1,460 | 37-pin metal connector x 6pcs. | |
LN-GA-2000△-FN | 2,050x50x150 | 2,000 | 25 | 10 x 200 = 2000 | 11 x M3 x 6 | 17.5 | 80 | 1,536 |
Model name*1 | LxWxH (mm) | Emitting surface length (Dimension A)*2 (mm) |
D1 | D2 | D3 | Weight (kg) |
Number of LED blocks*3 | Power consumption |
Light cable connection | Applicable Control Units |
---|---|---|---|---|---|---|---|---|---|---|
LN-GA-2100△-FN | 2,100x50x150 | 2,100 | 75 | 10 x 200 = 2000 | 11 x M3 x 6 | 18.3 | 84 | 1,613 | 37-pin metal connector x 6pcs. | PSCC-J1A-15C48-0401 x 2 |
LN-GA-2200△-FN | 2,200x50x150 | 2,200 | 25 | 11 x 200 = 2200 | 12 x M3 x 6 | 19.2 | 88 | 1,690 | ||
LN-GA-2300△-FN | 2,300x50x150 | 2,300 | 75 | 11 x 200 = 2200 | 12 x M3 x 6 | 20.0 | 92 | 1,767 | 37-pin metal connector x 7pcs. | |
LN-GA-2400△-FN | 2,400x50x150 | 2,400 | 25 | 12 x 200 = 2400 | 13 x M3 x 6 | 20.9 | 96 | 1,844 | ||
LN-GA-2500△-FN | 2,500x50x150 | 2,500 | 75 | 12 x 200 = 2400 | 13 x M3 x 6 | 21.7 | 100 | 1,920 | ||
LN-GA-2600△-FN | 2,600x50x150 | 2,600 | 25 | 13 x 200 = 2600 | 14 x M3 x 6 | 22.5 | 104 | 1,997 | ||
LN-GA-2700△-FN | 2,700x50x150 | 2,700 | 75 | 13 x 200 = 2600 | 14 x M3 x 6 | 23.4 | 108 | 2,074 | 37-pin metal connector x 8pcs. | |
LN-GA-2800△-FN | 2,800x50x150 | 2,800 | 25 | 14 x 200 = 2800 | 15 x M3 x 6 | 24.2 | 112 | 2,151 | ||
LN-GA-2900△-FN | 2,900x50x150 | 2,900 | 75 | 14 x 200 = 2800 | 15 x M3 x 6 | 25.1 | 116 | 2,228 | ||
LN-GA-3000△-FN | 3,000x50x150 | 3,000 | 25 | 15 x 200 = 3000 | 16 x M3 x 6 | 25.9 | 120 | 2,304 |
- *1 "△" mark in the model name indicates the LED color with one of the following letters: SW (white), RD (red), or BL (blue).
- *2 The available emitting surface lengths are in units of 100 mm.
- *3 An LED block is a batch of LEDs implemented on the same circuit. This is also the minimum scope of settings for light intensity and alarm on the dedicated power supply, PSCC-J1A series. Customers can selectively replace the Implementation Board including the LED blocks to repair the Light Unit by themselves. If that is required,」⇒「To repair the Light Unit , customers can selectively replace the Implementation Board including the LED blocks. If this replacement is required, please contact your local sales representative.
- These Light Units conform to the safety standard EN 62471.
- Input volutage : DC48 V
Connection image
Model name | Light cable connection | Extension cables | Control Units |
---|---|---|---|
LN-GA-100△-FN | 2-pin fan connector 5-pin temperature sensor connector 12-pin metal connector |
|
PSCC-J1A-30048-0401![]() |
LN-GA-200△-FN LN-GA-300△-FN |
2-pin fan connector 5-pin temperature sensor connector 12-pin metal connector×2 |
|
|
LN-GA-400△-FN LN-GA-500△-FN LN-GA-600△-FN |
37-pin metal connector×2 |
|
PSCC-J1A-60048-0401![]() |
LN-GA-700△-FN | PSCC-J1A-10C48-0401![]() |
||
LN-GA-800△-FN LN-GA-900△-FN LN-GA-1000△-FN |
37-pin metal connector×3 |
|
|
LN-GA-1100△-FN | 37-pin metal connector×3 |
|
PSCC-J1A-15C48-0401![]() |
LN-GA-1200△-FN LN-GA-1300△-FN LN-GA-1400△-FN LN-GA-1500△-FN |
37-pin metal connector x 4 |
|
|
LN-GA-1600△-FN LN-GA-1700△-FN LN-GA-1800△-FN |
37-pin metal connector x 5 |
|
PSCC-J1A-10C48-0401 x 2![]() |
LN-GA-1900△-FN LN-GA-2000△-FN |
37-pin metal connector x 6 |
|
|
LN-GA-2100△-FN LN-GA-2200△-FN |
37-pin metal connector x 6 |
|
PSCC-J1A-15C48-0401 x 2![]() |
LN-GA-2300△-FN LN-GA-2400△-FN LN-GA-2500△-FN LN-GA-2600△-FN |
37-pin metal connector x 7 |
|
|
LN-GA-2700△-FN LN-GA-2800△-FN LN-GA-2900△-FN LN-GA-3000△-FN |
37-pin metal connector x 8 |
|
