LNIS-FN Series

These Line Lights are best for the streak inspection and finding moving-direction scratches.

Download Pamphlet PDF

Features

Illuminance of 678,000 lx using forced air (fan)

This is a high-output (fan-equipped) type of the LNIS series, developed to detect moving-direction scratches such as streaks. It meets the needs of customers who require even brighter lights.

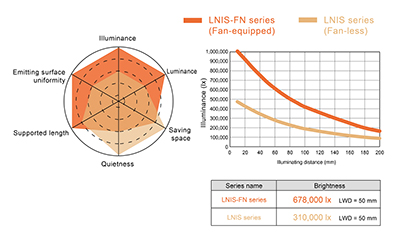

Comparison between the LNIS and LNIS-FN

Other features

  1. Emitting surface 100 to 1,500 mm long (can be made in units of 100 mm)
  2. Due to the constant-current drive system, the emitting
    surface has uniformity higher than the LNIS series.

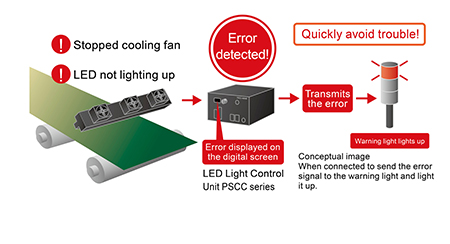

Avoid trouble with error detection

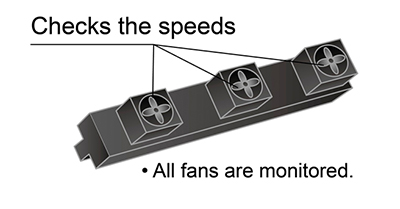

①Error detection for cooling fans

An error is detected should a fault occur, such as insufficient speed or a stop in the cooling fans.

②Error detection for the LEDs

Detects dead LEDs due to an open in the Light Unit circuit or a shorted LED.

Error detection is a function included with the PSCC series,the recommended Control Units.

Applications

Scratch inspection on plate glass

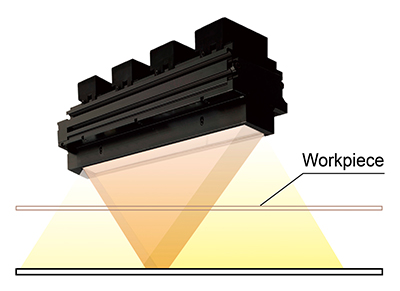

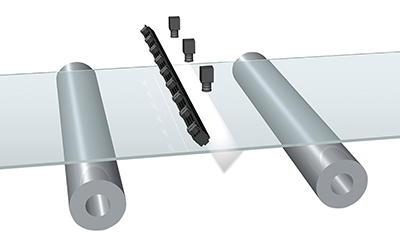

Example configuration

Achieves bi-directional angled illumination using an original optical design. This is a line sensor light perfect for detecting moving-direction scratches. (fan cooling type)

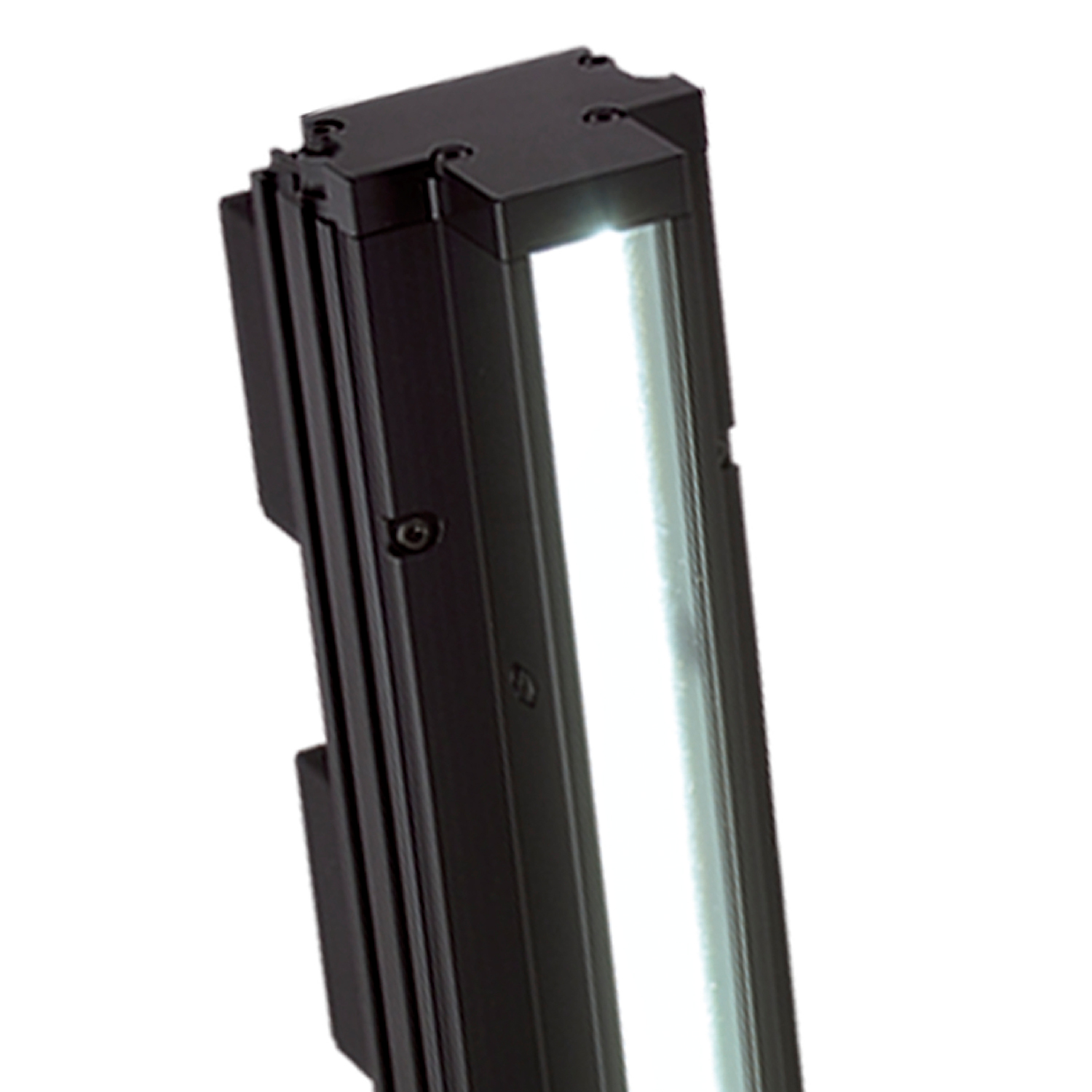

LNIS-FN series

Characteristics/Data

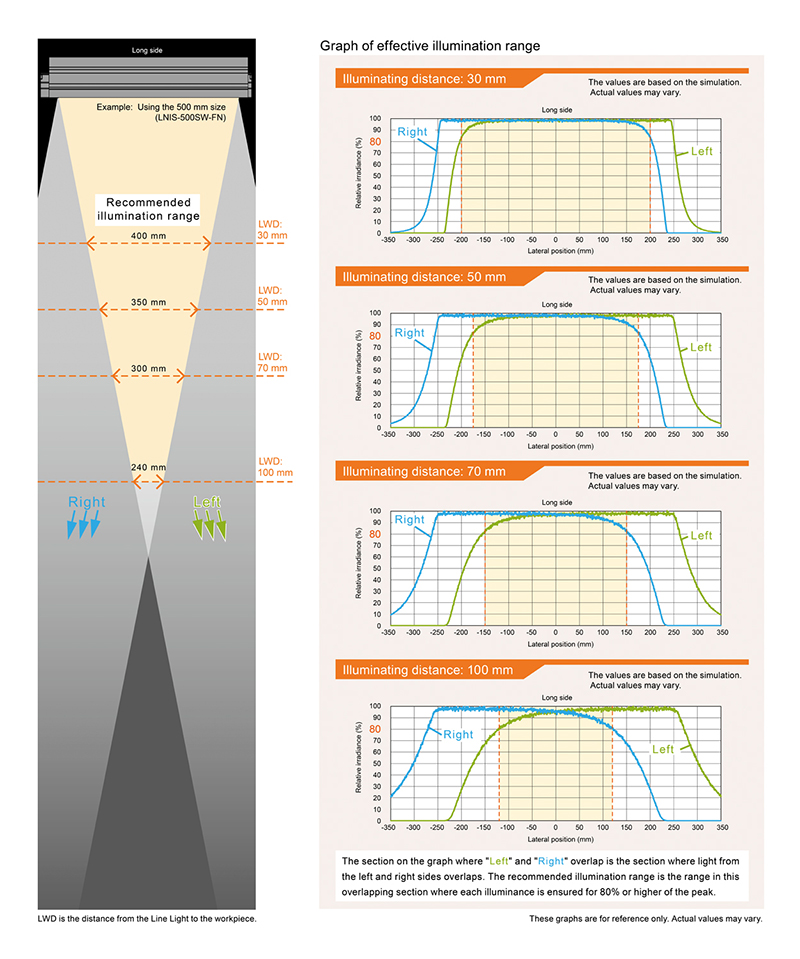

Recommended illumination range

Light Unit in use: LNIS-500SW-FN

Table of the recommended illumination range

(Where illuminance of the left/right beam is 80% of the peak value or more.)

(mm)

LWD:
Illuminating distance		 Emitting surface length
100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
10 40 140 240 340 440 540 640 740 840 940 1040 1140 1240 1340 1440
30   100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
50   50 150 250 350 450 550 650 750 850 950 1050 1150 1250 1350
70     100 200 300 400 500 600 700 800 900 1000 1100 1200 1300
100     40 140 240 340 440 540 640 740 840 940 1040 1140 1240
These values are based on the simulation. Actual range of the effective illumination depends on your imaging environment.

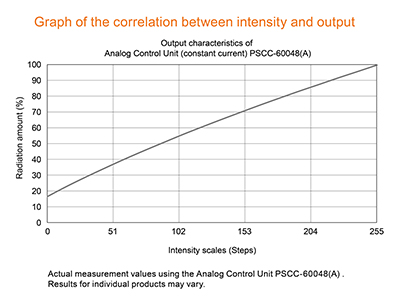

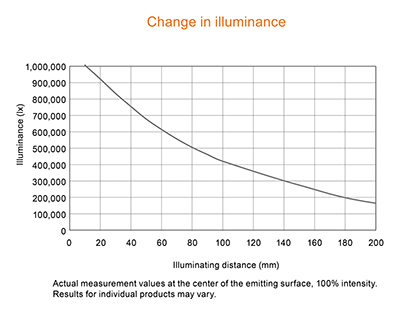

Data (Representative example)

※The graph included is for reference only. Actual values may vary.

LNIS-400SW-FN

LNIS-1500SW-FN

LED properties

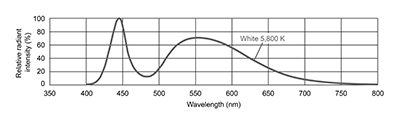

Spectral distribution

Be sure to read the “Instruction Guide” included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.
