Flood Lights

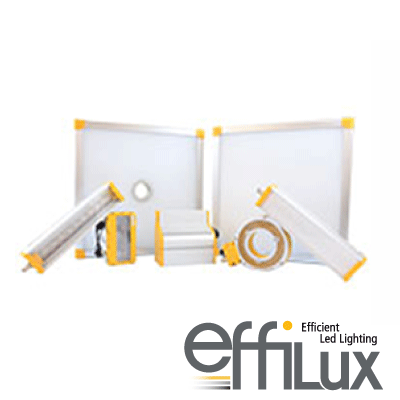

CCS is pleased to introduce a new range of high-quality plug & play flood
lights, designed and manufactured by its subsidiary EFFILUX, which achieves
an innovative advancement in flexible design. This comprehensive range of
flood light includes LED bar light, ring light, brick light, and flat light
with a camera hole.

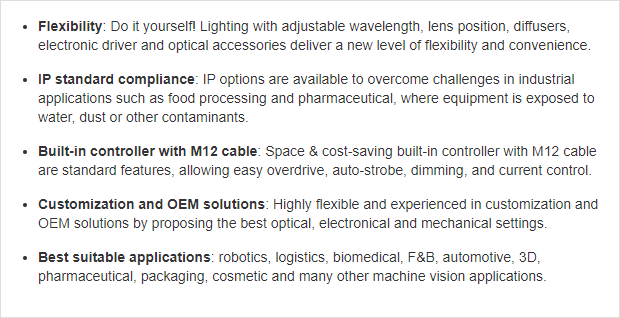

Highlights
BAR LIGHT
![](png/floodlights_01.png)
![](png/floodlights_02.png)
![](png/floodlights_03.png)

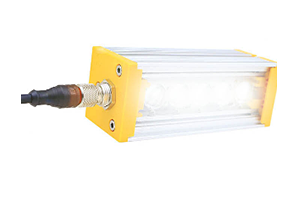

High-power adjustable bar light featuring high intensity and uniformity offers 24 possible configurations in just one light.
- 3 diffuser plates (Clear, Semi-diffuse, Diffuse) are included to create a suitable balance between power and homogeneity.

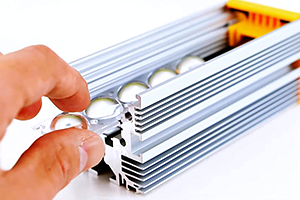

- 4 adjustable lens positions to easily change the emission angle from 90° to 10° to provide the optimal amount of coverage.
- Integrated controller with Auto-strobe feature that automatically illuminates at 300% increased intensity in strobe mode as compared to continuous operation.
- Easy-to-use standard M12 connector.
- Easy to open to make optical adjustments (lens position, diffuser, optical accessories).
- Robust design for challenging inspection environments.
- Available in UV, blue, green, red, IR, white.

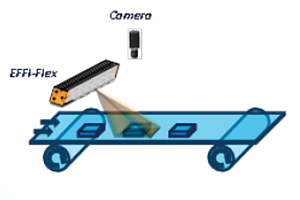

Common uses: Most machine vision inspection applications with large FOV.
TALK TO THE EXPERT

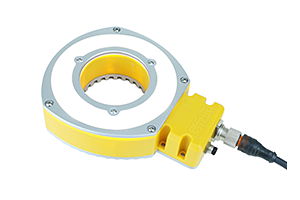

RING LIGHT
![](png/floodlights_04.png)
![](png/floodlights_05.png)
![](png/floodlights_06.png)

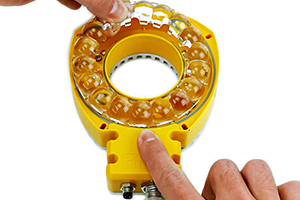

High-power adjustable ring light with changeable diffuser plates and lens positions offers 24 possible configurations in just one light.
- 3 diffuser plates (Clear, Semi-diffuse, Diffuse) are included to create a suitable balance between power and homogeneity.
- 4 adjustable lens positions to easily change the emission angle from 90° to 10° to adapt from flood lighting to a spotlight.
- Integrated controller with Auto-strobe feature allows for automatic 700% increased intensity in strobe mode as compared to continuous operation.
- IP65 rating for dust & water protection.
- Easy-to-use standard M12 connector.
- Easy to open to make optical adjustments and easy to mount on the end of a robotic arm.
- Available in UV, blue, green, red, IR, white, RGB, WUI.
- Compatible with most lenses (58mm camera hole).

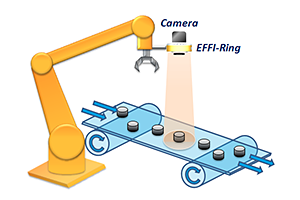

Common uses: Robot guidance, pick & place and any large FOV inspection.

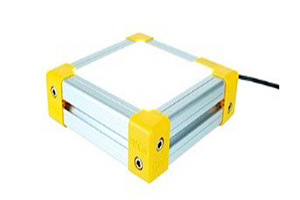

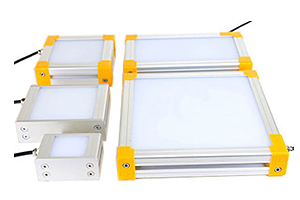

BACK LIGHT
![](png/floodlights_10.png)
![](png/floodlights_11.png)
![](png/floodlights_12.png)

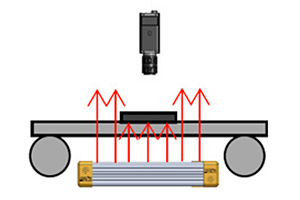

High performance back light offers exceptional contrast, high intensity & uniformity to provide a superior solution for strobed or continuous backlight inspections.
- Excellent uniformity (>90%).
- Anti-reflection system to absorb unwanted reflections from interfering light.
- Built-in dimming controller offers convenient and precise Analog Intensity Control.
- Easy-to-use M12 connector.
- Easy to mount with the built-in T-slot profile.
- Robust design for challenging inspection environments.
- Available in blue, green, red, IR, white.
Common uses: Inspection which requires high accuracy measurement of work piece shape.

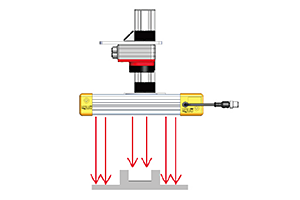

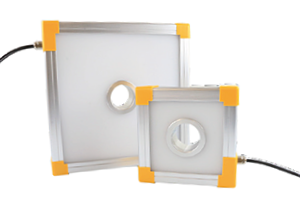

FLAT LIGHT WITH CAMERA HOLE
![](png/floodlights_13.png)
![](png/floodlights_14.png)
![](png/floodlights_15.png)

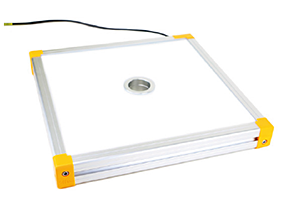

High-power flat light with camera hole offers high uniformity plus an integrated intensity controller.
- Excellent uniformity (>90%).
- Anti-reflection system to absorb unwanted reflections from interfering light.
- Built-in dimming controller offers convenient and precise Analog Intensity Control.
- Strobe or Continuous use.
- Easy-to-use M12 connector.
- 39mm standard size camera hole.
- Available in blue, red, IR, white.
Common uses: Inspection with reflective work pieces and applications with a large field of view or mechanical constraints.
