* Low-angle Light Units perfect for square workpieces:
detecting the outline of corners and preventing glare.
* Achieved high output up to double that of conventional products.

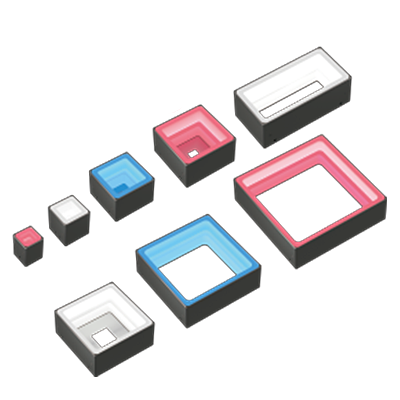

* 8 sizes and a total of 24 models.
* Installation holes on the top and lateral surfaces increase installation flexibility.

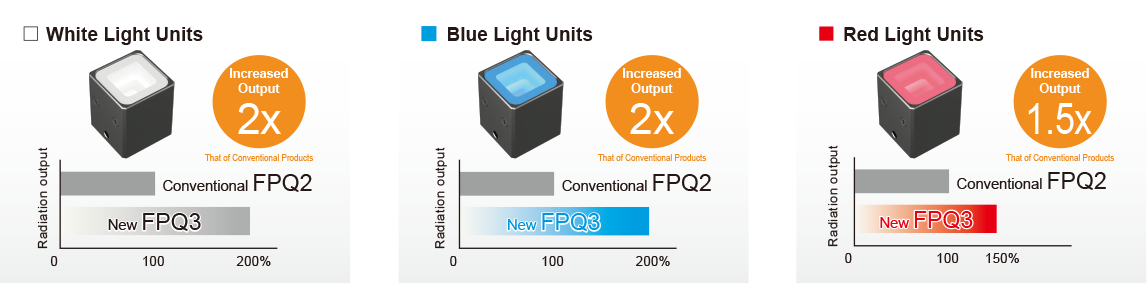

High-Output (2x Conventional Products)

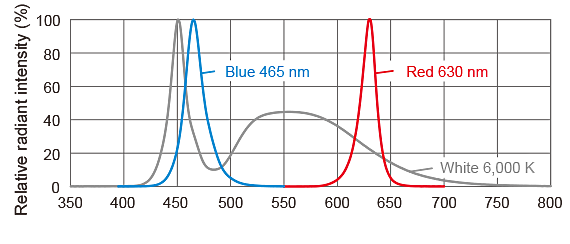

Output has been increased by 2x for white and blue, 1.5x for red Light Units.
Furthermore, output is more than doubled when used with a POD-series Strobe Overdrive Control Unit.
Comparison of the conventional products of the same color. The data included is for reference only. Actual values may vary.

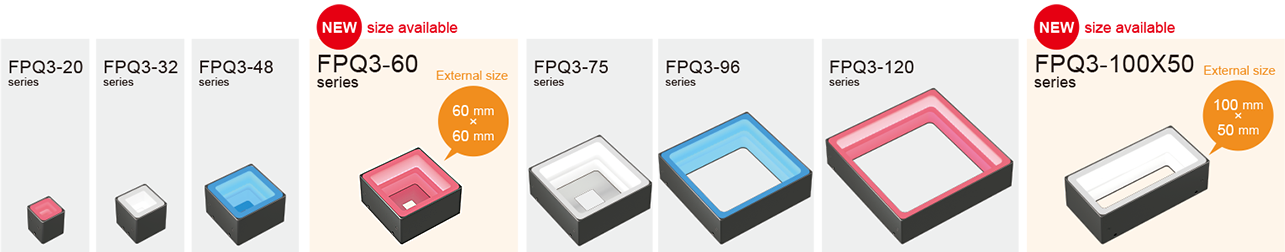

Expanded Line with 8 Sizes and a Total of 24 Models
External sizes of 60 × 60 mm and 50 × 100 mm (rectangular type) are supported.
The outer dimensions are not changed for the products of the same size as the conventional products.
Perfect for Square Workpieces

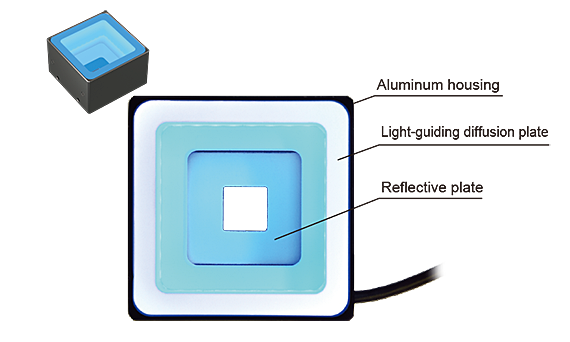

Light from the LEDs installed above is transmitted through the light-guiding diffusion plate and diffused light is illuminated from four directions on the workpiece from a low angle.
This is perfect for square workpieces.
High-Flexibility in Installation
Newly added installation holes on the lateral surfaces of all models increase installation flexibility.
The products of the same size of the conventional products can be installed with the same holes.

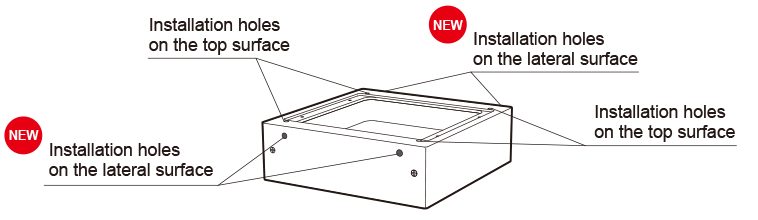

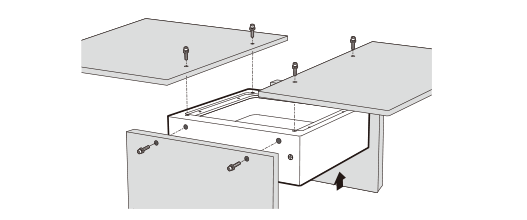

Installation Holes on the Lateral Surfaces

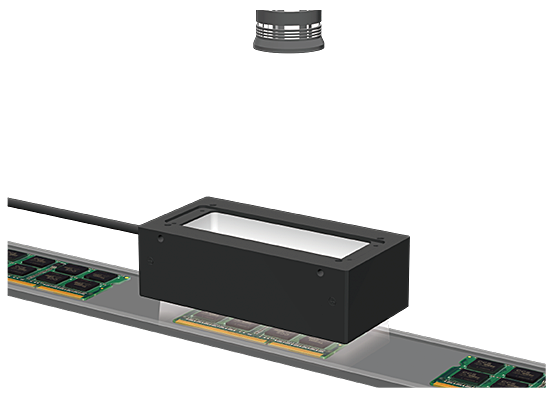

Conceptual Image for Installation
The data included is for reference only. Actual values may vary.

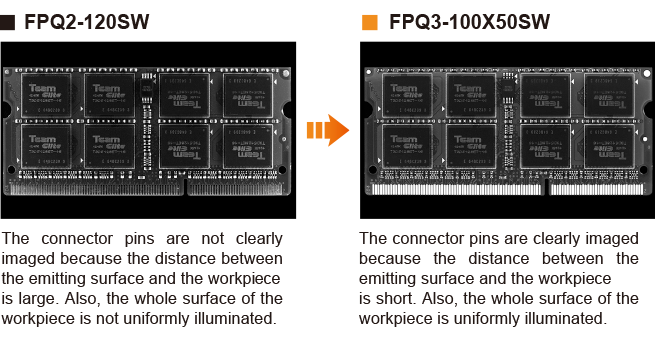

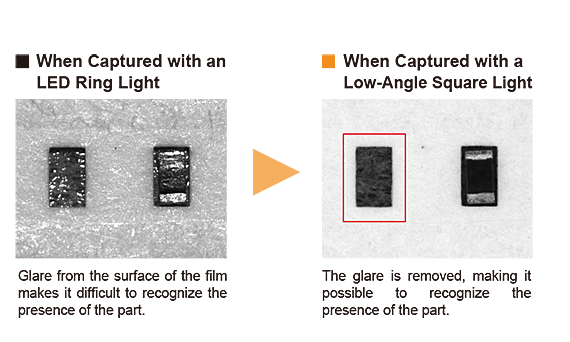

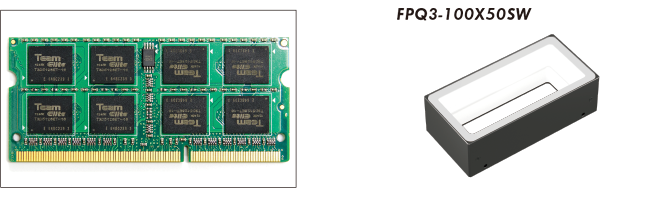

Imaging Examples for the FPQ3-100X50 Light Unit
Illumination from a low angle clearly highlights the outline of workpieces.

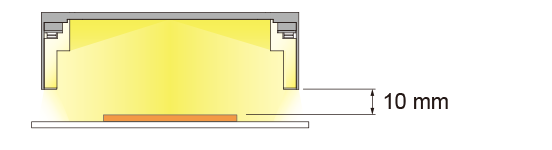

Conceptual Image for Illumination
With uniform and diffused light at a low angle from four directions of the workpiece, the corners stand out.
Custom Order Example
Custom Ordered Products and Computational Imaging
Controls red, blue, and green light to create the color you want
with just one Light Unit.
If there are workpieces with different colors but the same shape, or if there are different types of products on the same assembly line, you were required to set up the Light Units of different LED colors to detect the features. Full-color type Light Unit emits and controls red, blue, and green light with a single unit. This enables you to take the best image to meet your needs.
The segmented emitting surfaces strobe separately
to image the peculiarity of the workpiece.
The emitting surface is divided into four segments, which correspond to the four sides of the unit and are separately controlled. This enables the optimum illumination to select the target surface and to fit with the shape of the workpiece. You can select the brightness, strobing ON/OFF, and the timing for each segment and image the peculiarity of the workpiece.

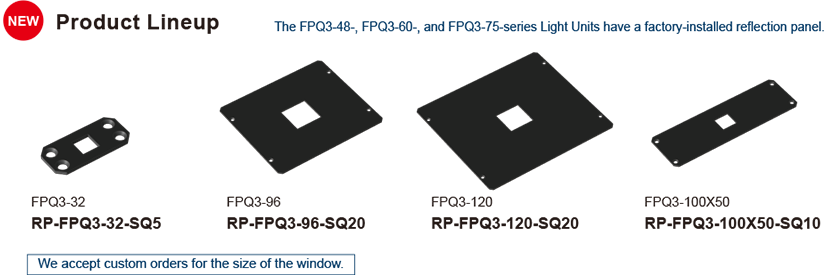

Optional Reflection Plates (Sold Separately)

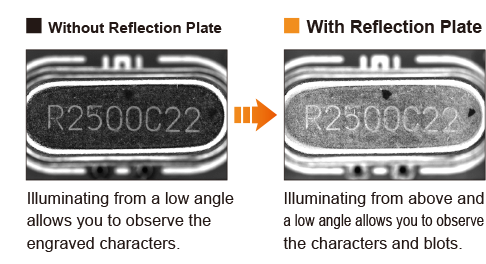

Installing the reflection plate on the Light Unit enhances the dome effect, which enables highly-uniform and diffused illumination.
Refer to "Reflection Plates" page for the detailed information including the dimensions.
Watch the video below.
