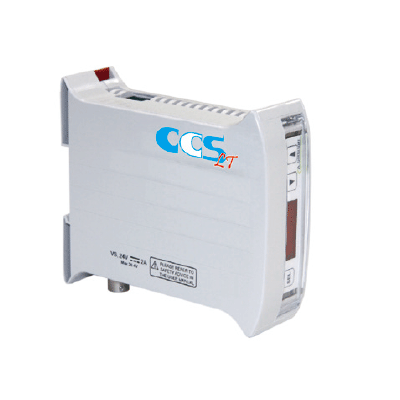

OC-0736-1-ET

Dedicated controller for OLF-LT / OLB-LT Series(Organic LED Lights for Machine Vision)

A predictive maintenance function is provided by automatically recognizing connected lights and accumulating data on lighting usage.
24 VDC Input
Equipped with 1 channel
Regular Emission, ON/OFF Emission,
Strobe Emission (With Overdrive Mode)
Configuration via Ethernet or buttons on the panel
Strobe Light Emission Time Setting: 100µs to 10 ms (100µs units)
Light Emission Delay Time Setting: 2µs to 10 ms (100µs units)
Weight: 300 g max.

Add to Watch List

Number of channels	1 channel
Lighting method	Regular Emission [Continuous], ON/OFF Emission [Switch], Strobe Emission (With Overdrive Mode) [Pulse]
Drive method	Constant-current system
Input voltage	24 VDC (21.6 to 26.4 V)
Power consumption	12 W [Continuous light emission at time of maximum load ]
Strobe time settings	[Strobe light] 100 µs to 10 ms (100 µs units)
Lighting delay settings	2 µs to 10 ms [100 µs units]
Intensity control	Manual: Operation on the front panel External: Command input via TCP/IP or UDP communications(Ethernet)
Lighting delay	[Strobe emission response speed] Max. 10 μs　　 [ON/OFF emission response speed] Max. 100
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85% RH (with no condensation)
Storage temperature and humidity	Temperature: - 20 to 60°C, Humidity: 20 to 85% RH (with no condensation)
Cooling method	Natural air-cooling
Trigger	[Trigger cycle] Max. 100 Hz [Trigger input] 3 to 24 VDC input TTL, NPN, and PNP Input impedance (nominal) 8 kΩ(Trigger input)
Input current	1 A [ Input current peak ]
Conformed standards	[CE marking] EMC standard: Conforms to EN61000-6-2, EN61000-6　 [Environmental regulations] RoHS2 compliant
Weight	300 g max.
Accessories	Wurth 351 Series 2 pins x1, Wurth 361 Series 4 pins x1
Caution	Use OC-G-5646-2-ET when using OLF-LT-92 model in overdrive mode.

Product Details Dimensions (mm) Downloads

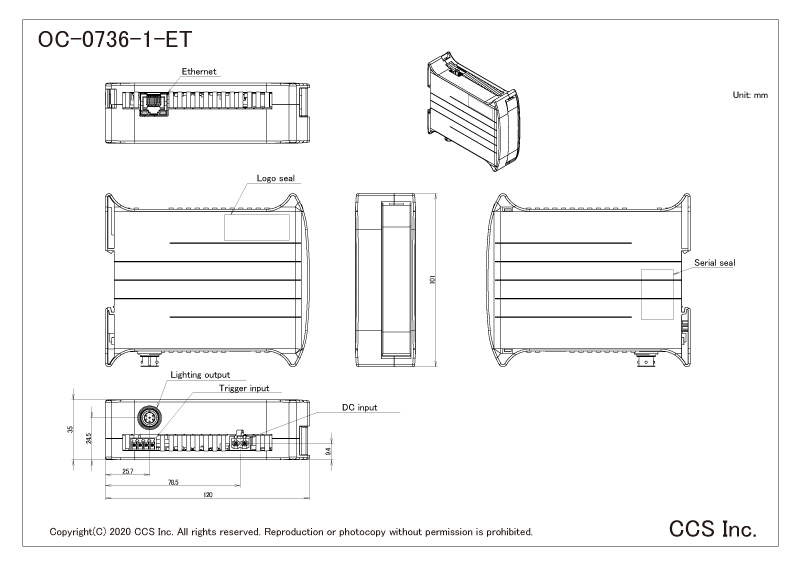

Dimensions (mm)

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	Maintenance Application.
