HLDR-IP Series

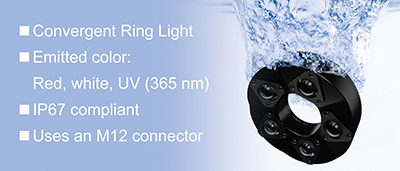

These waterproof Ring Lights ensure the brightness with condensing lenses. IP67 compliance. Adopting an M12 connector.
Download Pamphlet PDF
Features
Achieves convergent illumination

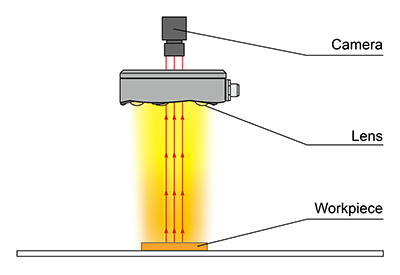

The HLDR-IP series features convergent Ring Lights that ensure brightness with a convergent lens.

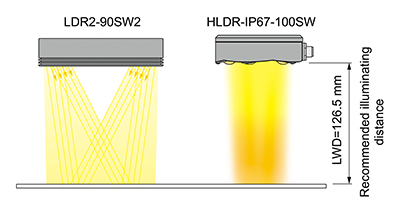

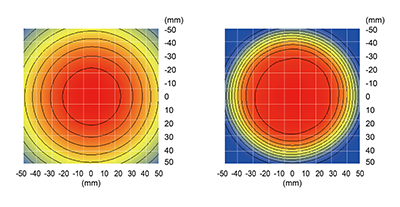

Comparison of illumination between a Ring Light and the HLDR-IP series
IP67 compliant
It has a waterproof and rustproof structure for use in harsh environments. Optimal for sites where manufacturing lines must be cleaned, such as for food and chemicals.
Waterproof Ring Light HLDR-IP series

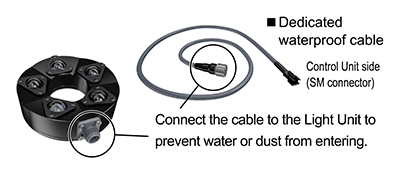

Uses an M12 connector

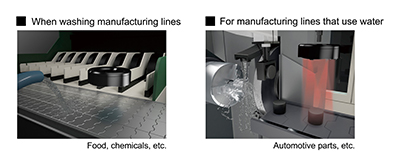

Safe to use when washing manufacturing lines
Example configuration
Convergent waterproof Ring Light that ensures brightness with a convergent lens.

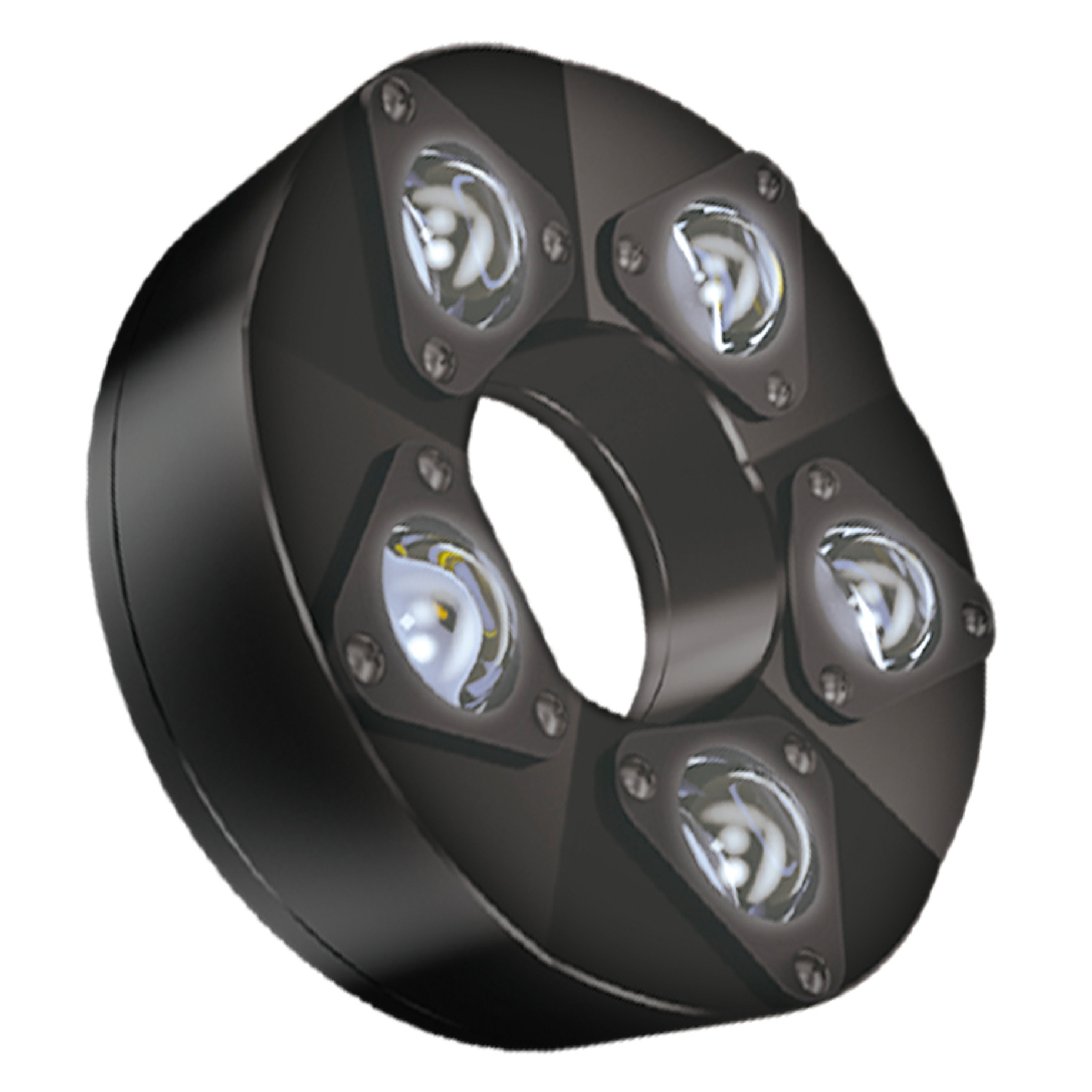

HLDR-IP67-100
Characteristics/Data

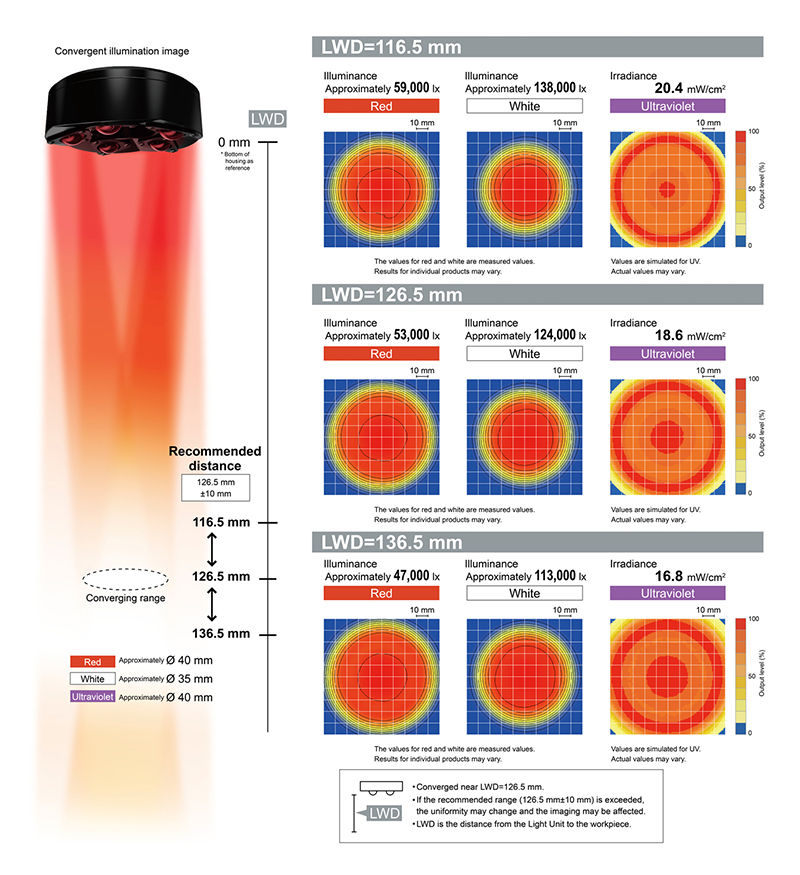

Regarding recommended distance
※The data included is for reference only. Actual values may vary.
LED properties

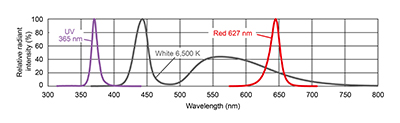

Spectral distribution
CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.
The data included is for reference only. Actual values may vary.

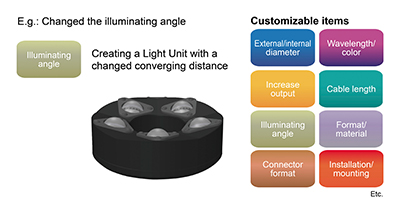

Custom Order Example
Please contact your CCS sales representative.
Imaging Example

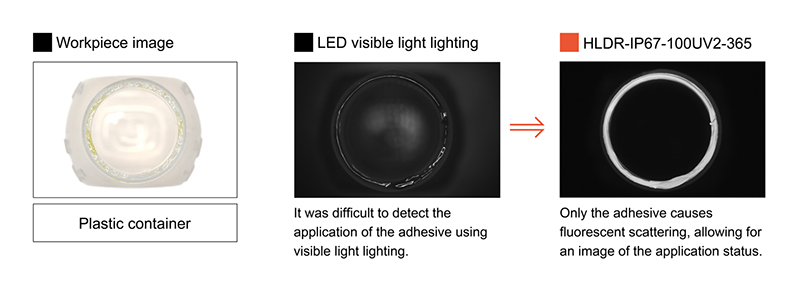

Fluorescent observation of adhesive on a plastic container
![](jpg/hldr_ip_09.jpg)
Description | Application inspection for adhesive |
---|---|
Workpiece | Plastic container |
Conventional lighting | LED visible light lighting |
New lighting | HLDR-IP67-100UV2-365 |
Result | Only detects the adhesive |
