HPR2 Series

These Ring Lights have "easy to use", "bright", and "uniform" characteristics.
The product lineup includes abundant size variations, full color (RGB) models, and satisfying accessories such as the Light Joint Brackets.

Download Pamphlet PDF

Features

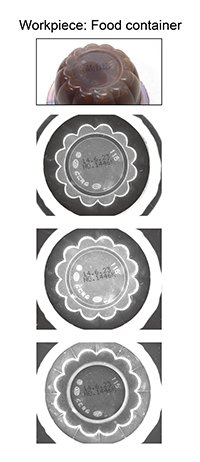

Supports from low angles to high angles

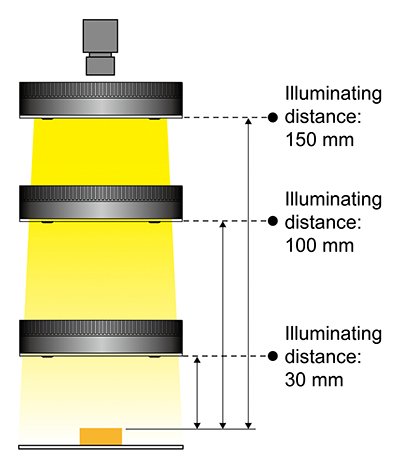

Provides diffused light from the LEDs without waste using a unique illuminating mechanism. Even if the distance from the workpiece to the Light Unit is changed, there is little variation in the uniform region and it can therefore be used for a wide variety of uses.

Achieves a uniform region with a high degree of freedom

Provides diffused light at high output

It achieves uniform illumination of diffused light at high output using surface-mounted LEDs and a specially processed diffusion plate.

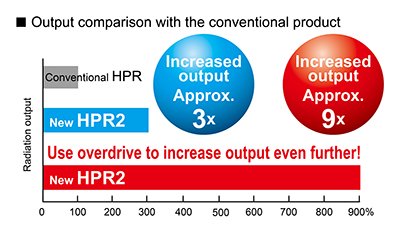

Achieved higher output than the conventional product

  • This is a comparison between the HPR-100 and HPR2-100, using red and white colors.
  • It can be combined with a Strobe Control Unit for even brighter emission than continuous emission.
    Full color type cannot be used.
  • The data included is for reference only and does not guarantee the quality of this product.

Added two sizes and a full color (RGB) type

We added the HPR2-75 and HPR2-200 models. Also, we added a full color (RGB) type to the lineup as variation for wavelengths, increasing the applications of our products.

Characteristics/Data

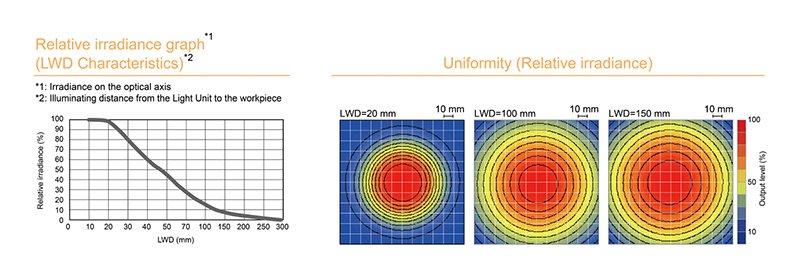

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

HPR2-75SW

LED properties

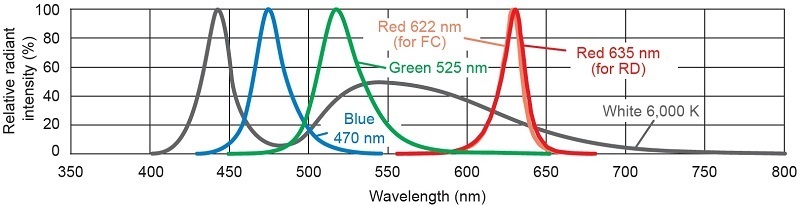

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

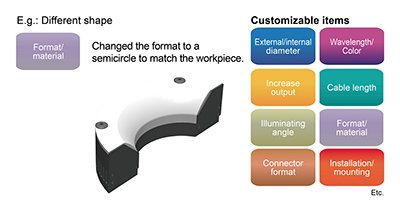

Custom Order Example

Please contact your CCS sales representative.

Imaging Example

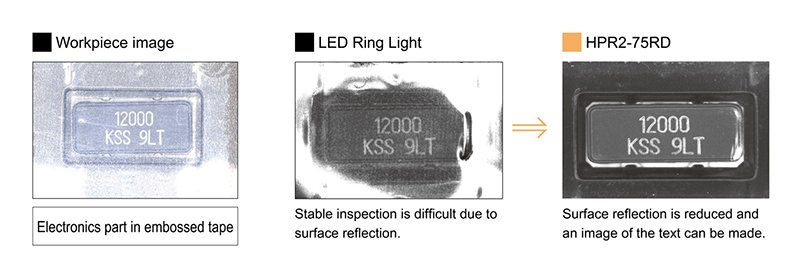

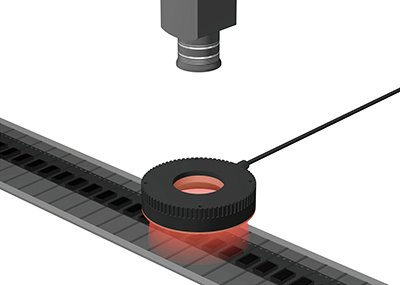

Imaging of text on electronic parts

Description Printing inspection
Workpiece Electronics part in embossed tape
Conventional lighting LED Ring Light
New lighting HPR2-75RD
Result Improved uniformity

Exterior imaging of a multi-colored workpiece

Description Visual inspection

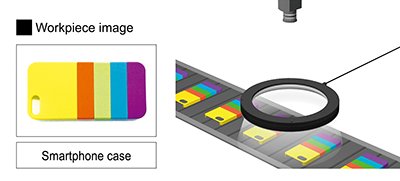

Workpiece Smartphone case
Conventional lighting -

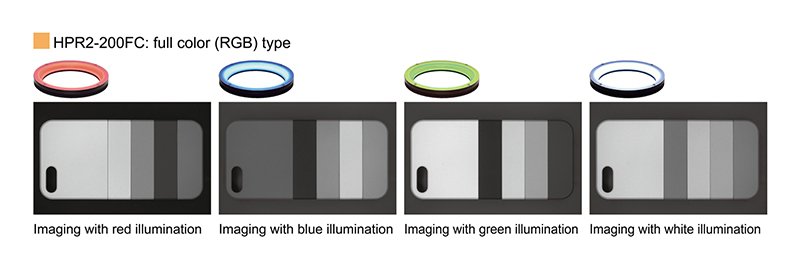

New lighting HPR2-200FC: full color (RGB) type
Result Allows for color determination.
