LNSD Series

Easy-to-use, compact, and lightweight Line lights.
2 types (High luminance/uniformity) x 3 colors (White, red, and blue LEDs) x 30 sizes (100 mm to 3,000 mm) = 180 models.

Download Pamphlet PDF

Features

Easy-to-setup, compact, and lightweight

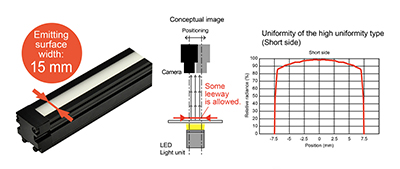

The wide and uniform emitting surface facilitates the positioning of the camera. You can improve the efficiency of the setting work.

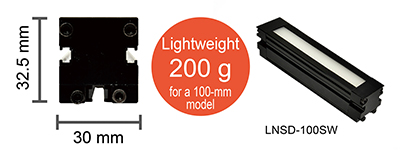

Compact and lightweight

Stable quality even in a harsh environment

Optimum for replacing your fluorescent lights

Excellent brightness and the same uniformity as a fluorescent light

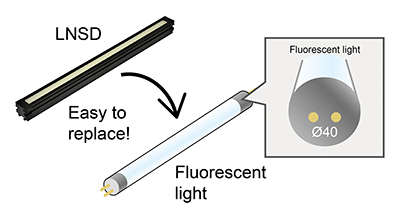

Great for replacing fluorescent lights due to the equal size

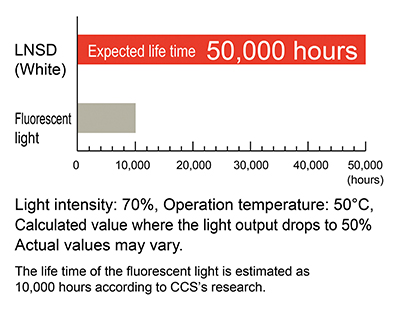

Life time comparison

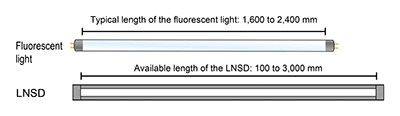

Supports 1,600 to 2,400 mm length as with the fluorescent light

Applications

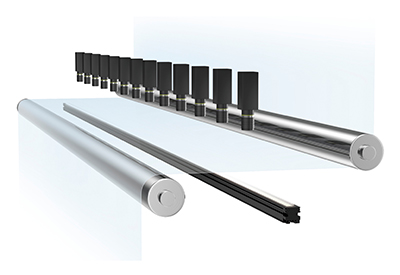

Foreign material inspection for clear film

Example configuration

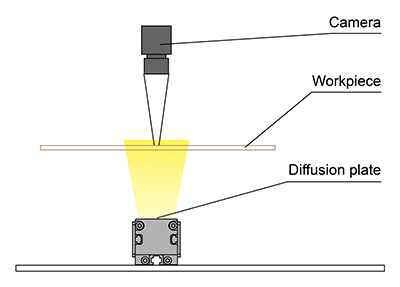

Light from the chip LEDs on the flat boards passes through a diffusion plate to produce a band of diffused illumination.

LNSDseries

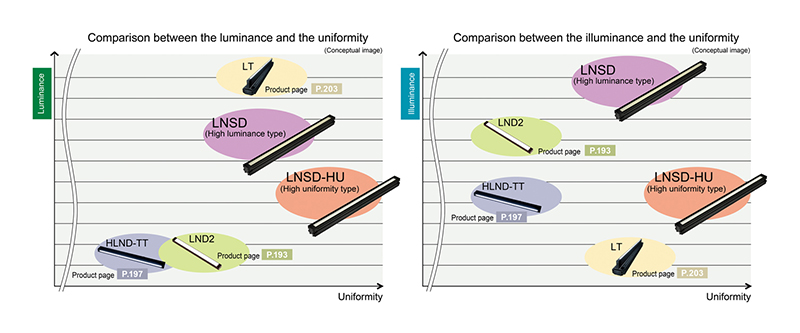

Comparing performance of the LNSD with other CCS Line Lights

Characteristics/Data

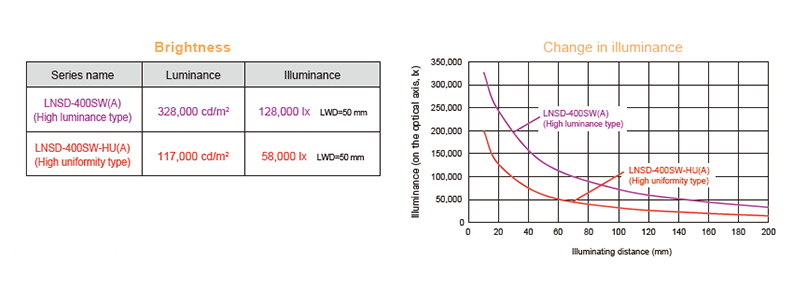

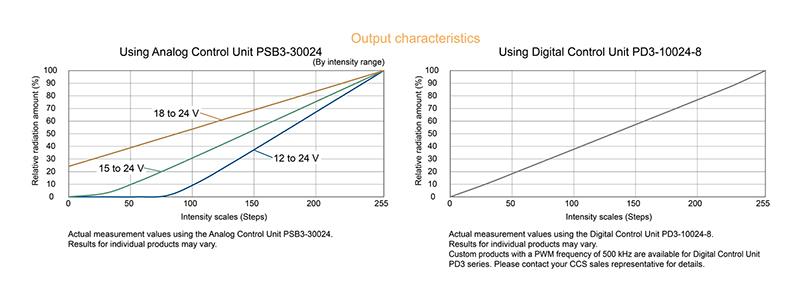

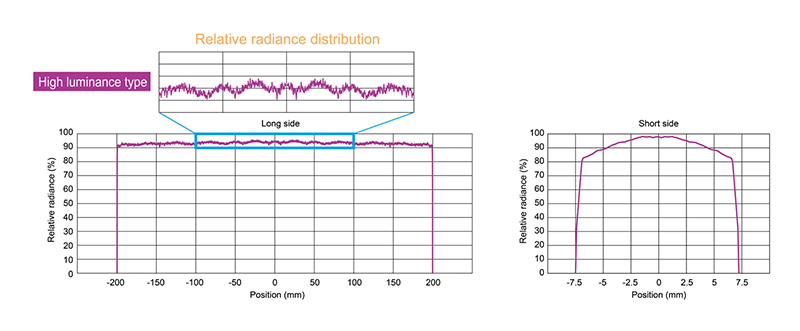

Data (Representative example)

※The graph included is for reference only. Actual values may vary.

LNSD-400SW(A)

LNSD-400SW-HU(A)

LNSD-400SW(A)/LNSD-400SW-HU(A)

LED properties

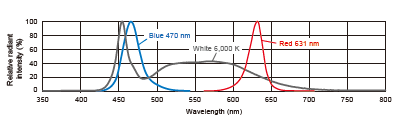

Spectral distribution

High power type white data is model number (A).
CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the “Instruction Guide” included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Options (Coaxial unit)

Coaxial unit : CU-LNSD-300-GL

Capable of imaging by illumination from the same axis as the camera.
*This is a custom-order product. Contact our local sales office for details.

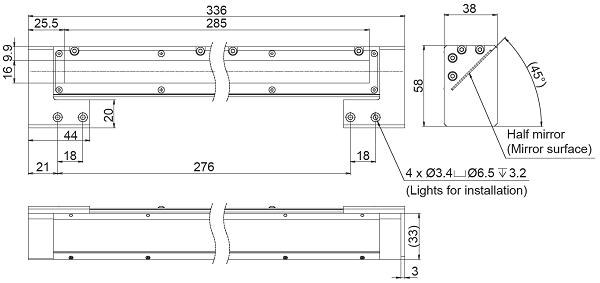

CU-LNSD-300-GL Dimensions

Change to White LED Models

Discontinued models and successor models

Applicable Models

LNSD Series white LED lights (all models)
Ex. LNSD-100SW2 -> LNSD-100SW2(A)

Impact on Function and Performance

New white LEDs have been used in the successor models.
The correlated color temperature is lower and the color is yellowish-white.

Link (PDF)

Discontinuation of LNSD Series, white LED color
