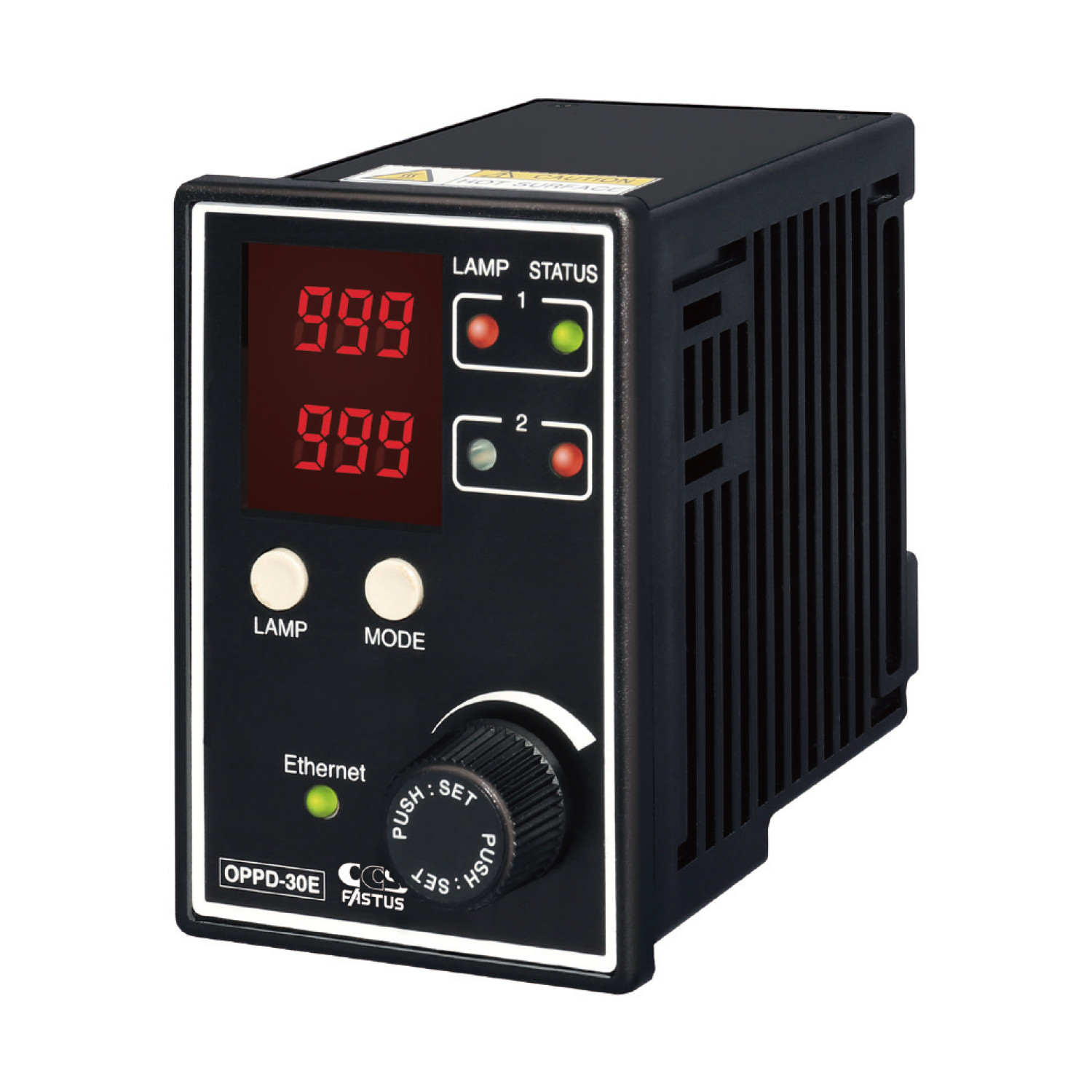

OPPD-30E

[Not available in Japan]
Easy Ethernet connectivity

Features

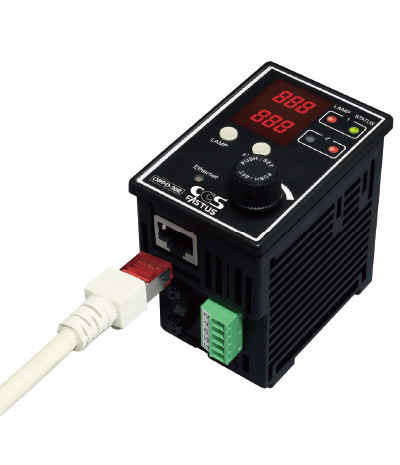

Simple light intensity and ON/OFF control through Ethernet communication Connecting is simple.
Just plug in a LAN cable!

With support for DHCP, the OPPD-30E automatically obtains IP addresses and other information necessary for connection.
Manual configuration of network settings required with conventional models is unnecessary, and communication can be easily established simply by connecting a LAN cable within a DHCP server network environment.

High-speed communication

With the OPPD-30E, light intensity values can be rewritten for both channels in about 6 ms.

  • OPPD-30E : Approx. 6 ms / 2 ch
  • Conventional Optex FA models : Approx. 11 ms / 2 ch
  • Other manufacturer products or equivalent : Approx. 18 ms / 1 ch

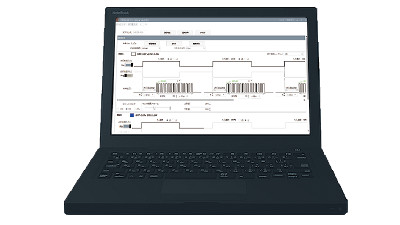

Simple PC software-based setup

Dedicated PC software is available for the OPPD-30E. This software can be used to configure light intensity, ON/OFF control and frequency, among other aspects. brAccess the Optex FA homepage to download the software for free.

*LAN cable required separately.

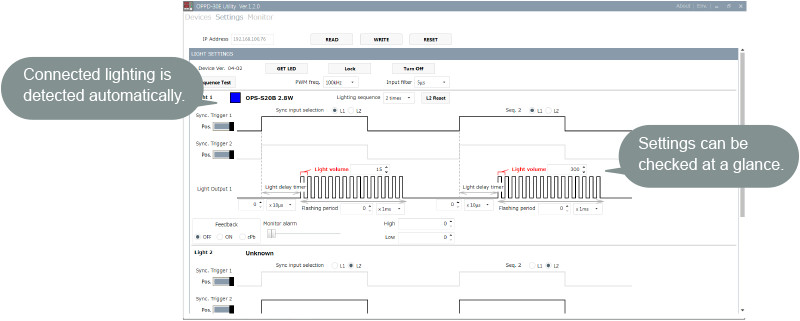

  • Intuitively operable interface

    The software interface has been developed so that light intensity and ON/OFF control can be seen at a glance.
    Settings can be easily configured through pull-down menus or through direct input.

    *Screen content and layout subject to change.

  • Configurable settings
    • PWM frequency
    • Illumination control input selection
    • Light intensity value/Light emission width
    • Lighting delay time
    • Feedback
    • Monitor brightness alarm, etc.

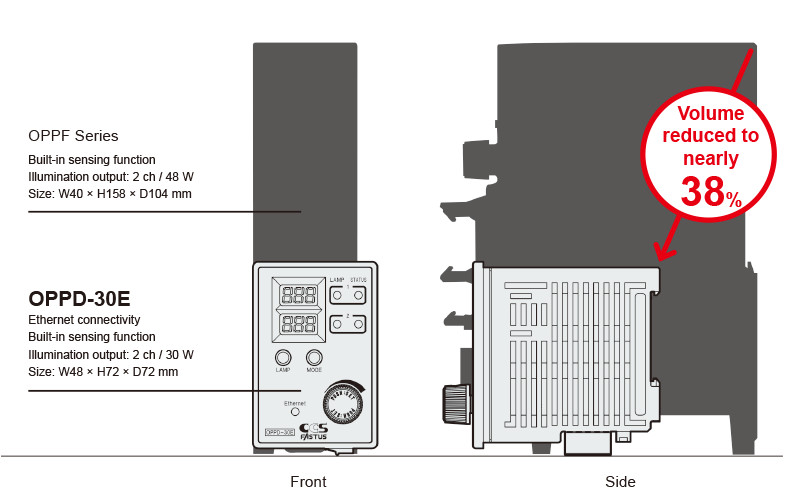

Compact size

Thanks to high-density mounting technology and an optimuml heat dissipation design, the OPPD-30E boasts a size just 38% that of OPPF Series products.

Connection to external device (illumination control)

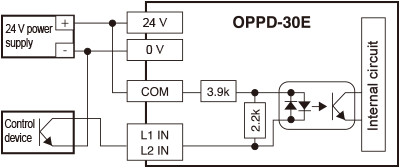

With NPN open collector output device

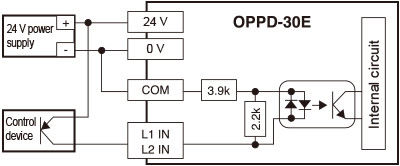

With PNP open collector output device

*When connecting voltage output control equipment, apply 12 to 30 VDC between IN and COM. The photocoupler input is bipolar.

New lighting control features

Illumination control input allocation function

With conventional models, one lighting output is allocated per controller input.
With the OPPD-30E, users can switch between one or two lighting units for every input at the controller.
In addition to reducing the number of wiring, the OPPD-30E enables flexible input changes even after wiring has been completed.

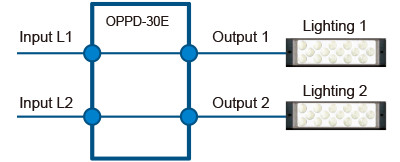

Conventional setup

Allocation examples

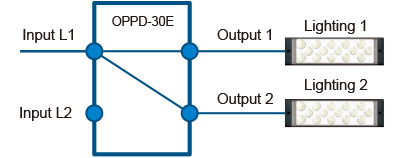

Ex. 1: Simultaneous output to 2 channels for 1 input

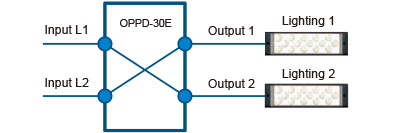

Ex. 2: Switchable output

Lighting control sequence

With the OPPD-30E, up to four illumination setting patterns including light intensity values can be configured. Each pattern can be configured in an illumination control sequence with ordered switching for each illumination control input. (Lighting delay time settings are shared.) With intensity values and illumination widths set in advance, automatic switching is only performed for illumination control input, allowing the time required for changing settings to be kept to a minimum.
With conventional models, control is not possible without using a PLC and setting up complex ladders.
With the OPPD-30E, such control can be achieved with no other equipment required.

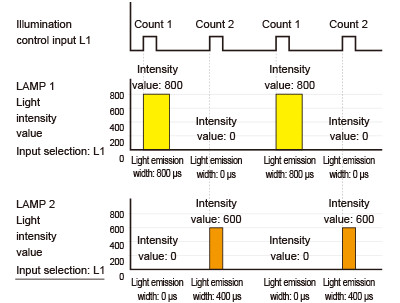

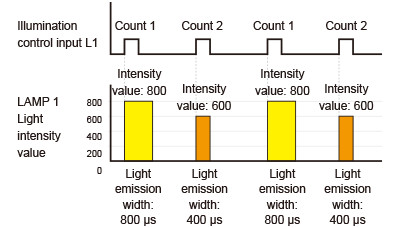

Ex. 1: Light intensity value and emission width switching

Lighting control sequence: 2-count setting

Ex. 2: Lighting switching

Lighting control sequence: 2-count setting

Automatic brightness management and predictive lighting maintenance

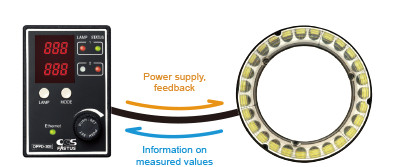

　Brightness/temperature monitoring and feedback control

Connecting the OPPD-30E to lighting equipped with “FALUX sensing” enables monitoring of the lighting brightness and temperature.
Based on these monitored values, light intensity feedback control can be performed, allowing brightness to be kept constant.

  • Monitoring function

    The lighting’s built-in photodiodes are used to monitor the brightness of the lighting.
    Alarm output: Setting a threshold in advance makes it possible to output an alarm when brightness decreases to a predetermined level.
    Instrumental error adjustment: Absolute brightness monitoring makes it possible to adjust for lighting instrumental errors.

  • Light intensity feedback control

    Automatic brightness management

    With LED lighting, decreases in brightness can occur due to various factors including drops in voltage caused by extension cables
    and LED deterioration.
    The factory default brightness is maintained through automatically corrected intensity values to prevent drops in brightness.
    Corrections can be verified as “Corrected intensity value.”
    The feedback range is determined by the set intensity value and the maximum intensity value (999).
    A signal is output as a feedback error when the maximum intensity value is reached.

    [Feedback mechanism]

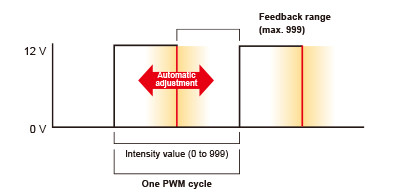

    OPPD-30E

    The PWM ON time is corrected according to changes in brightness, allowing brightness to be automatically adjusted.

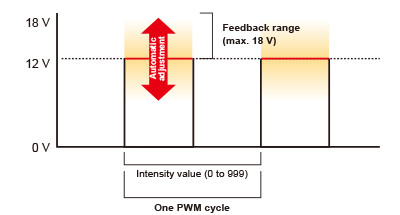

    <Reference> OPPF Series

    Output voltage is corrected according to changes in brightness, allowing brightness to be automatically adjusted.

Measured brightness/temperature logging function

Measured values such as brightness and temperature can be collected and displayed in a graph using the dedicated software (PC).
Data can be output as a .csv file. Displaying monitored values allows users to recognize LED degradation. This feature is useful as a function for predictive lighting maintenance.

  • Recordable items
    • Light intensity value
    • Monitored value
    • Corrected intensity value
    • Lighting temperature
    • Controller temperature

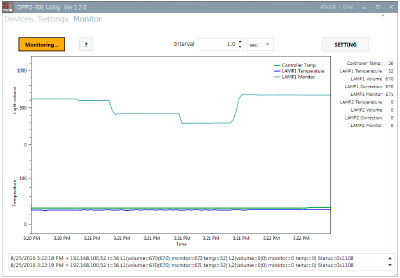

Monitor screen
(dedicated software)
