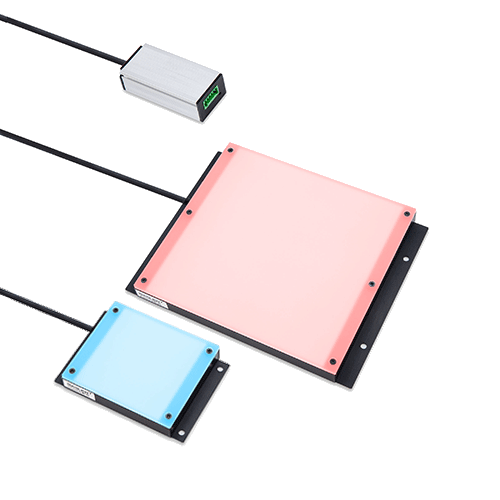

BCBL Series (Flat Light)

BCBL series flat lights connect to Basler ace U and ace L camera models by plug and play. Control lighting mode, lighting time, and dimming of lighting through the camera software.
Available in 2 sizes: 60 x 60 mm and 120 x 120 mm, and 3 LED light emitting colors: red, blue and white.
Diffuser and polarizing plate are available as options.
Warranty for this product are not the same as CCS standard lighting. Contact our local sales o ice for details.<br />

Features

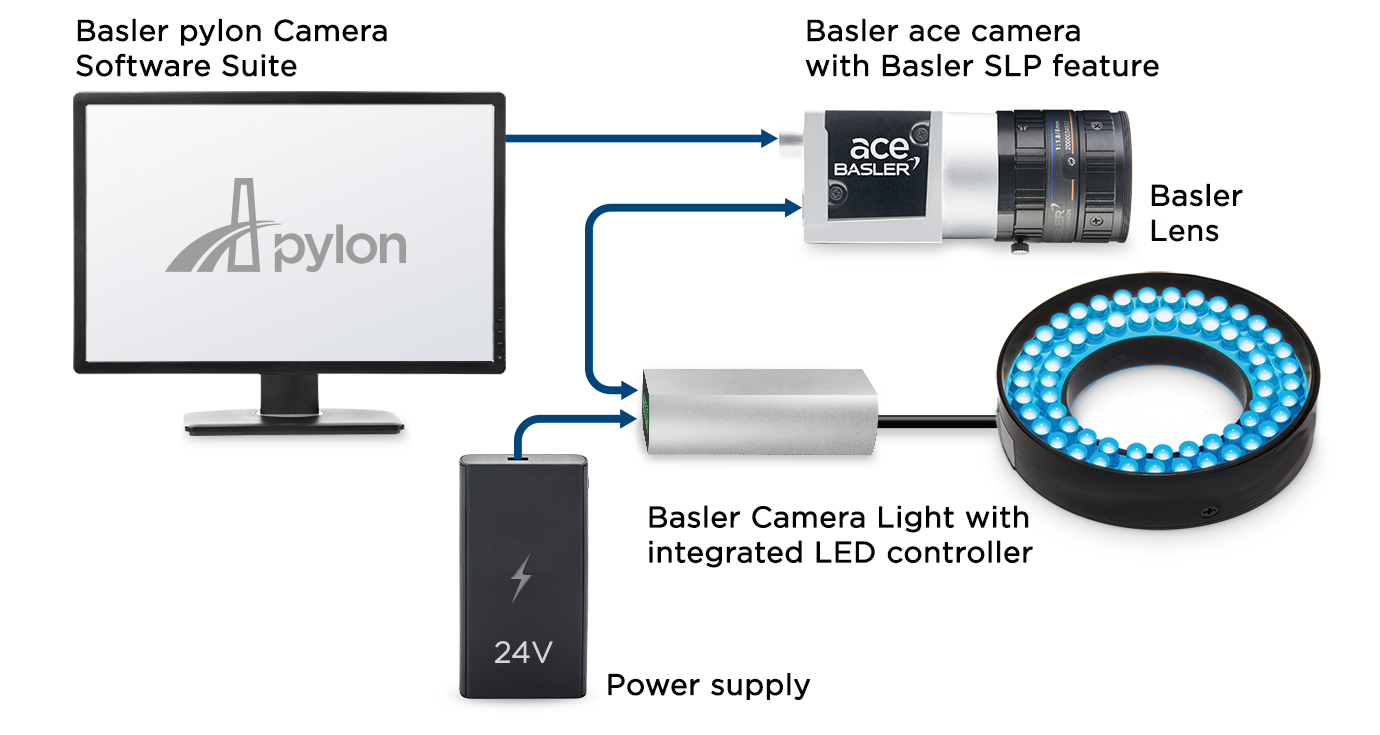

Direct communication between camera and light thanks to the Basler SLP feature

  • Basler SLP feature does not require complicated calculation or lighting setup. which is a bottleneck when building an image inspection system using a camera and lighting.
  • Lighting control is possible with Basler's dedicated pylon Camera Software Suite.
  • By sharing the power supply for cameras and lighting, it is possible to reduce the number of devices for system construction and reduce costs.
Direct communication between camera and light thanks to the Basler SLP feature

Abundant lighting lineup

  • Four types of lighting: bar, ring, flat, and flood lights, available in red, white, and blue emission colors (27 models in total)
  • Ideal for speedily building an image inspection system.

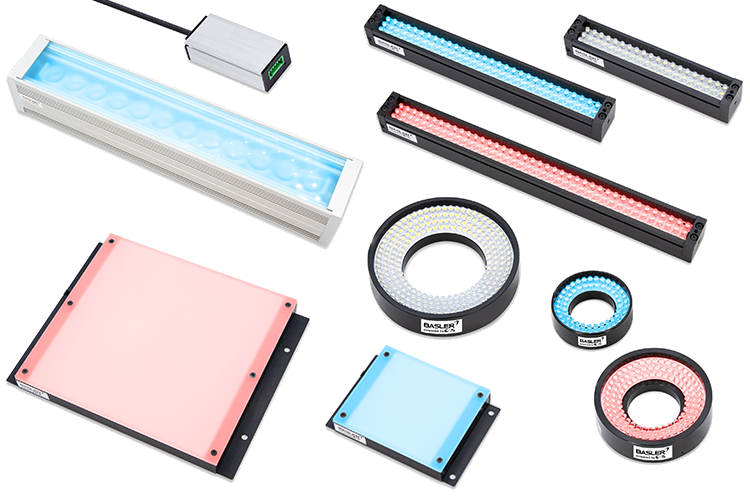

Basler Camera Light lineup

Characteristics/Data

Reference model data: BCBL-120X120W

Note: The data included is for reference only. Actual values may vary.

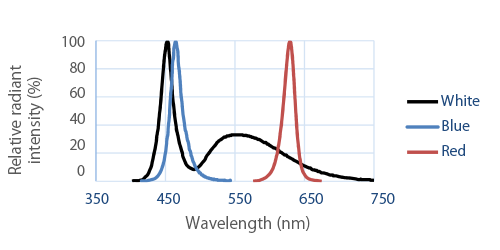

Spectrum

Spectrum

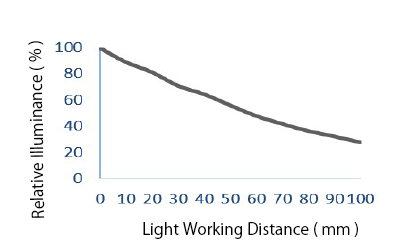

Relative Illuminance

elative Illuminance

Relative Uniformity

Relative Uniformity

Imaging Example

Imaging of the level of liquid inside a plastic container

Description Liquid volume inspection
Workpiece Plastic container
Conventional lighting LED Ring Light
New lighting LED Flat Light
Result Emphasizes the level of the liquid
Workpiece image

Plastic containers

Plastic containers
Unsuitable lighting

It is difficult to form an image of the liquid level due to surface reflection.

It is difficult to form an image of the liquid level due to surface reflection.
Suitable lighting.

It is possible to form an image of the liquid level without surface reflection.

It is possible to form an image of the liquid level without surface reflection.

Introduction Video
