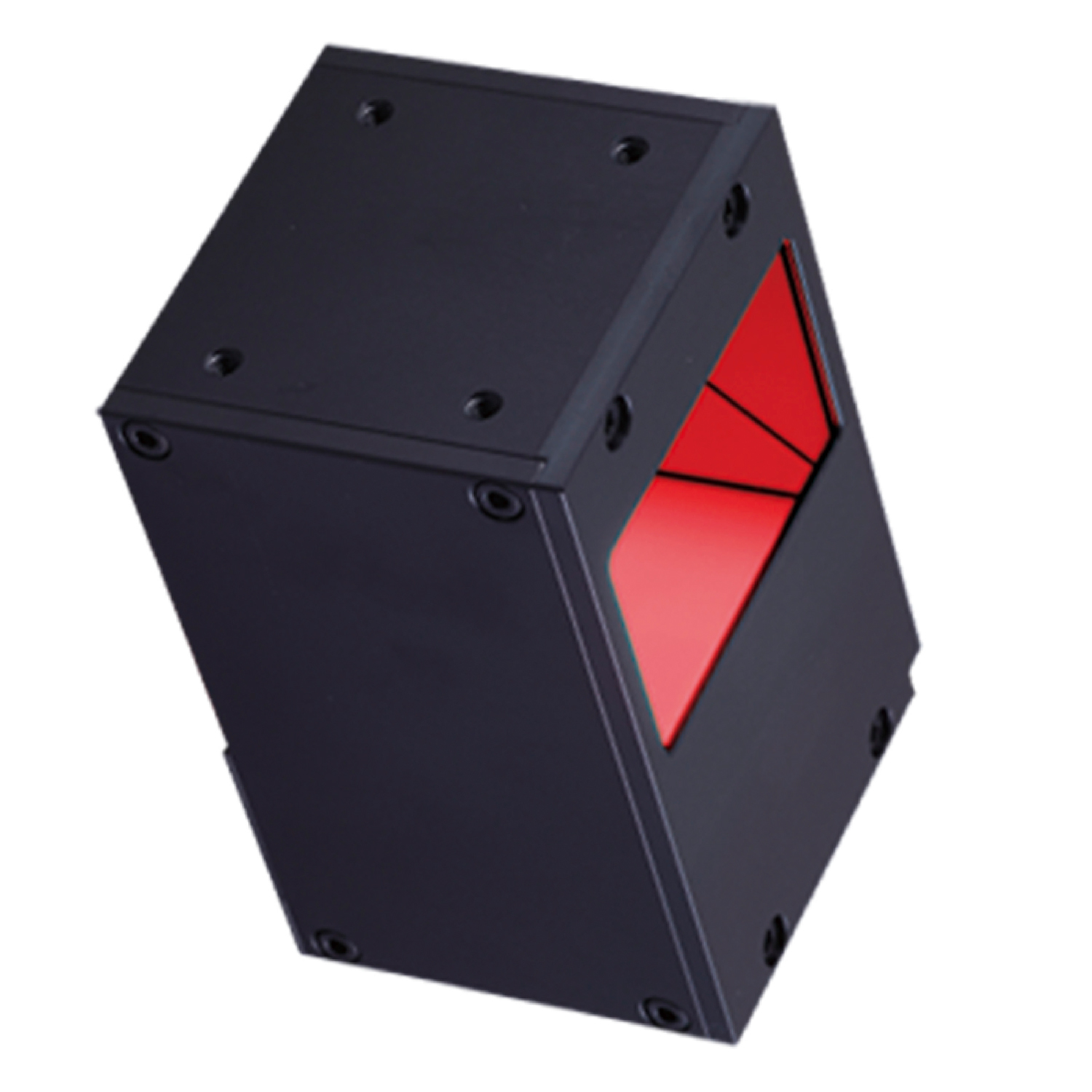

LFV3 Series
These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens.
Mirror surface workpieces are uniformly illuminated without unevenness.
The diffusion plate is adjustable and exchangeable.
Download Pamphlet PDF
Features
Freely customize the diffusion
Customize the diffusion
Diffusion plate status | Result |
---|---|
Change the transmittance rate from (high) to (low) | Increased uniformity |
Change the installation position to the LED side | Emphasized directionality |
1) Prepared two types of diffusion plates with different transmittance rate.
Replace the diffusion plate to change the transmittance rate.
2) The installation position of the diffusion plate can be adjusted.
Change the position to achieve various imaging effects.
LFV3-CP series
Replacing the half-mirror with a beam splitter increased accuracy. It is perfect for tiny workpieces and environments with limited installation space.

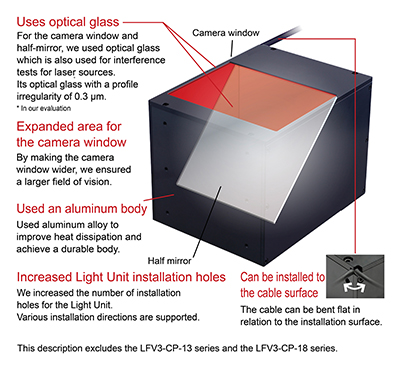

Coaxial Light that supports high-resolution cameras
Highly-accurate optical glass is used for the camera window and the half-mirror. This allows for stable imaging when using high-resolution cameras.
LFV3 series, a Coaxial Light with improved quality
Example configuration

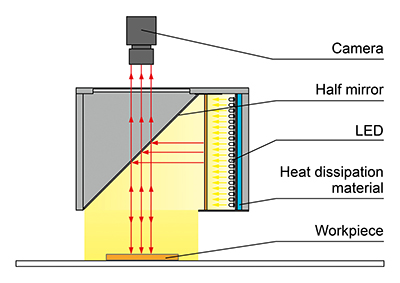

By using the half mirror, diffused light from the LED is illuminated on the same axis as the camera axis.
LFV3-100
Characteristics/Data

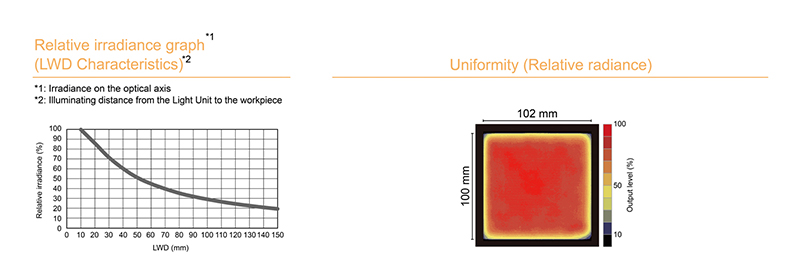

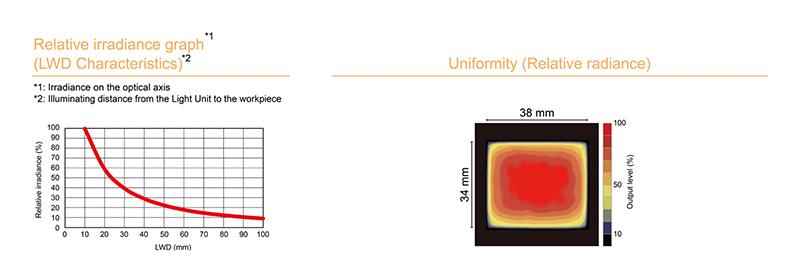

Data: Relative irradiance graph and uniformity (Representative example)
※The data included is for reference only. Actual values may vary.
LFV3-35RD(A)
LFV3-100SW(A)
LED properties

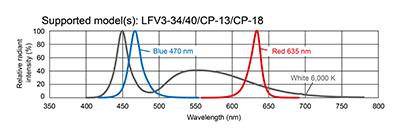

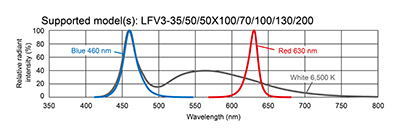

Spectral distribution
CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.
The data included is for reference only. Actual values may vary.
Imaging Example

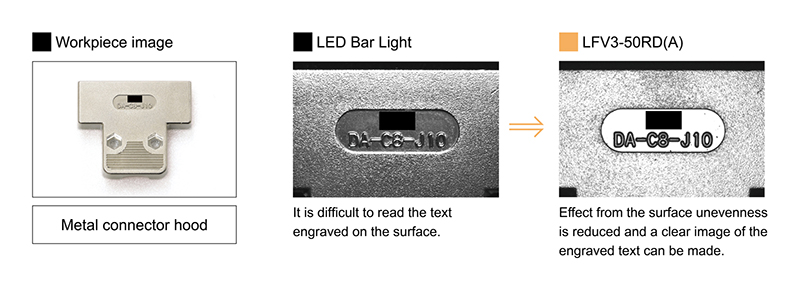

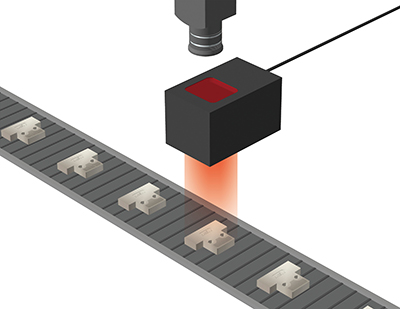

Imaging of engraved text on a metal connector hood
![](jpg/lfv3_06.jpg)
Description | Character recognition |
---|---|
Workpiece | Connector hood |
Conventional lighting | LED Bar Light |
New lighting | LFV3-50RD(A) |
Result | Emphasizes the engraved text |

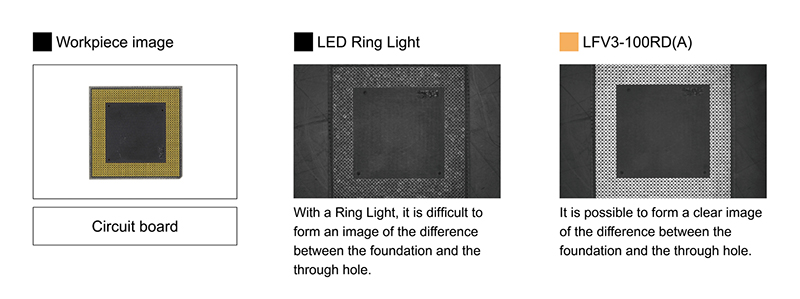

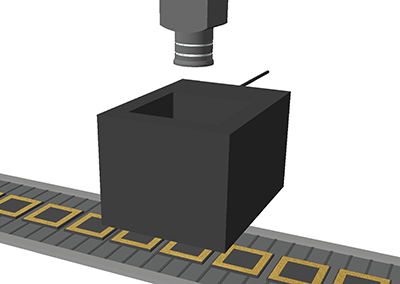

Imaging for circuit board through holes
![](jpg/lfv3_08.jpg)
Description | Visual inspection |
---|---|
Workpiece | Circuit board |
Conventional lighting | LED Ring Light |
New lighting | LFV3-100RD(A) |
Result | Improved uniformity |
LFV3-RA Series (Custom Order Example)
Features
![](png/lfv3-ra_e_p.png)

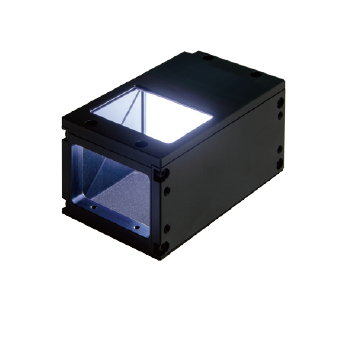

LFV3-RA Series
- The position of the illumination port of a standard coaxial light is changed by 90°.
- Suitable for inspections where there are restrictions on camera installation conditions and lighting space, such as inside inspection machines.
*
![Built to order](png/icn_tokuchu_en.png)
This is a made-to-order product. For queries and details, contact your CCS sales representative.

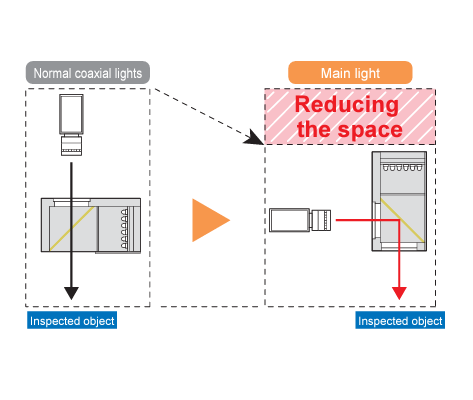

1. Reducing the installation space in the vertical direction
![1. Reducing the installation space in the vertical direction](png/lfv3_01_en.png)
Compared to normal coaxial lights, this light helps reduce the installation space in the vertical direction.
2. Reducing the installation space in the horizontal direction
![2. Reducing the installation space in the horizontal direction](png/lfv3_02_en.png)
Compared to normal coaxial lights, this light helps reduce the installation space in the horizontal direction.
Imaging Example
Workpiece:air freshener
It suppresses the reflection of the wrapping film on the surface and captures printing.
