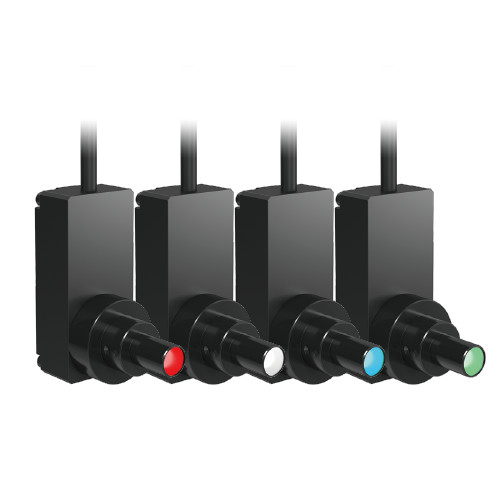

HLV3 Series
* Achieved both high output and high uniformity
* Full lineup with a total of 29 models* Reduced individual differences in brightness
* Achieved high output up to double that of conventional products (HLV3-22-4S type)
* Infrared (860 nm) models available* Optimized for CCS’s high-resolution telecentric lenses* For broad applications with high-performance collimated lighting and condenser lenses
Download Pamphlet PDF
Note: These lights require the Control Units provided with the output connectors for Spotlights.
The available Control Units vary depending on the input current of lights.
For details, refer to the "Power Supplies" column on the page describing each light model name.
Features
Full Lineup with a Total of 29 Models

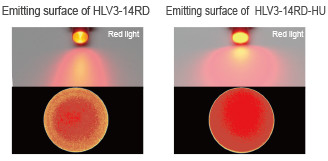

HLV3-14HLV3-14-HU
Compact and Lightweight Models
Both standard and high-uniformity types are available
The data included is for reference only and the results for individual products may vary.
HLV3-22-1HLV3-22-2
Standard Models

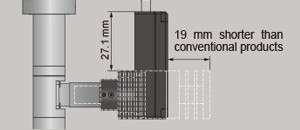

Housing has been redesigned and optimized from that of conventional products.
Horizontal space saved by using an L-shaped housing.HLV3-22-2-1220

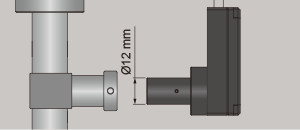

φ12-mm Light Emitting Tip
Supports lenses with a 12-mm diameter socket for mounting Spot Light
Substitution from straight light guide also offers peace of mind.HLV3-22-4MHLV3-22-4SHLV3-22IR860

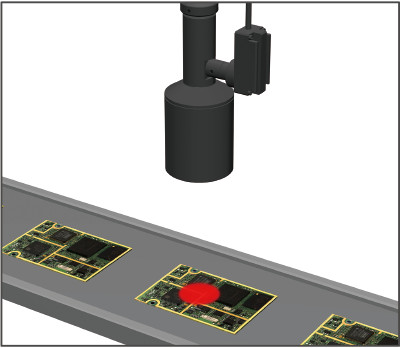

Optimized for Use with Telecentric Lenses

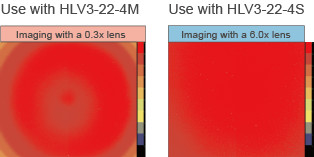

Optimum Spot Lights for lens magnifications
The results for individual products may vary.
Revamped Line of Lights to Satisfy Your Specific Needs
HLV3 Series Comparison Table
Model | Description | Input current (max.) |
Brightness (index) | |||
---|---|---|---|---|---|---|
RD (red) | SW (white) | BL (blue) | GR (green) | |||
HLV3-22-4S | High output model | 1,000 mA | 1.6x | 1.9x | 2.0x | 1.6x |
HLV3-22-4M | High uniformity model | 1,000 mA | 1.0x | 1.3x | 1.2x | 1.0x |
HLV3-22-2 | Standard model | 700 mA | 1.1x | 1.5x | 1.5x | 1.2x |
HLV3-22-1 | Standard model | 385 mA | 0.6x | 0.9x | 0.9x | 0.8x |
HLV3-14 | Compact model with condensed light | 275 mA | 1.0x | 0.8x | 1.3x | 1.1x |
HLV3-14-HU | Compact model with diffused light | 275 mA | < 0.1x | 0.1x | < 0.1x | 0.1x |
HLV2-22-3W | Brightest model in HLV2 series (Reference data) |
700 mA | 1.0 | 1.0 | 1.0 | 1.0 |
Reduced Individual Differences (Excluding HLV3-14, HLV3-14-HU, and HLV3-22IR860)
The newly designed HLV3 series Spot Light allows for brightness adjustment to the standard value.
In the production process, the brightness of each HLV3 series Spot Light is measured and adjusted to the standard value established for each model. This allows us to produce high-quality Spot Lights with minimal variations in brightness between units of the same model.
The HLV3 series helps reduce labor time to install, maintain, and adjust brightness of Spot Lights and helps reduce time required on site.
Data

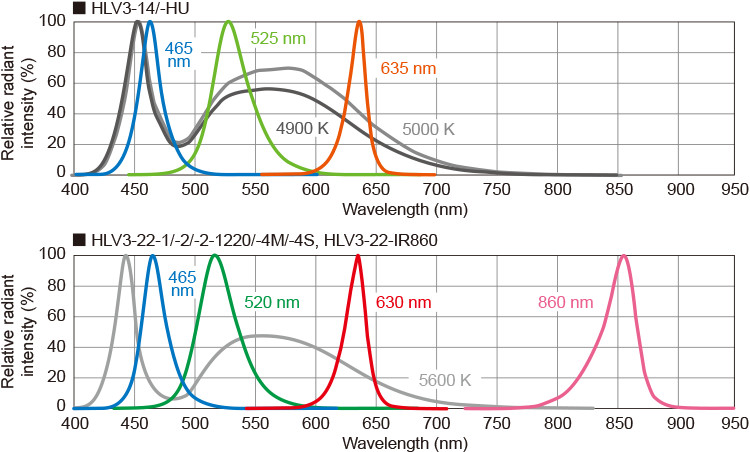

Light Spectrum
Optional Cables (Sold Separately)
Extension cables |
|
---|---|
Straight cables | Robot cables |
FCB-1/-2/-3/-5 (1 m / 2 m / 3 m / 5 m) |
FRCB-1/-2/-3/-5 (1 m / 2 m / 3 m / 5 m) |
FCB-HLV3-10(10 m)* | FRCB-HLV3-10(10 m)* |
Notes |
---|
|

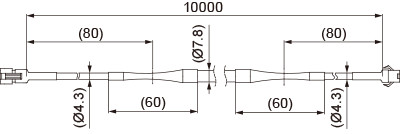

FCB-HLV3-10 Straight cables

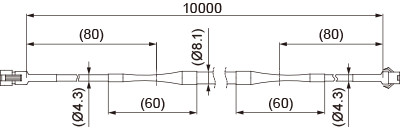

(Unit: mm)FRCB-HLV3-10 Robot cables
(Unit: mm)Video
Watch the video below.
CCS High-Resolution Telecentric Lenses
SE-65-M series / SE-110-M series

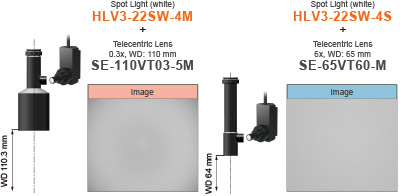

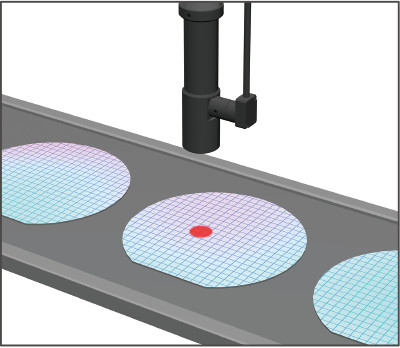

Optimized for the Optical System of CCS High-Resolution Telecentric Lenses
Optimum Spot Lights for lens magnifications.
High uniformity types are available for low magnification lenses and high output types are available for high magnification lenses.
Spot Lights use an original lens to maintain high quality with minimal deviation in the optical axis.
Use Spot Lights with our original telecentric lenses (coaxial type) to create a stable imaging environment.

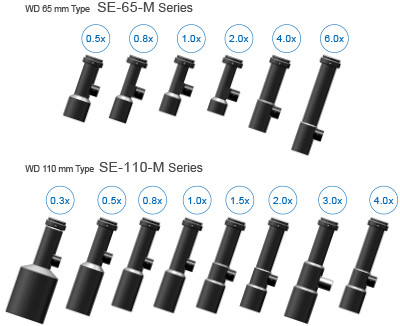

List of the Recommended Lens Magnifications
WD \ Magnification | 0.3 | 0.5 | 0.8 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | 6.0 |
---|---|---|---|---|---|---|---|---|---|
65mm | SE-65 VT05-M |
SE-65 VT08-M |
SE-65 VT10-M |
SE-65 VT20-M |
SE-65 VT40-M |
SE-65 VT60-M |
|||
110mm | SE-110 VT03-5M |
SE-110 VT05-M |
SE-110 VT08-M |
SE-110 VT10-M |
SE-110 VT15-M |
SE-110 VT20-M |
SE-110 VT30-M |
SE-110 VT40-M |
Comparison using our measurement conditions. The data included is for reference only and the results may vary.
CCS High-Resolution Telecentric Lenses SE-65-M/110-M Series
Imaging Example
Imaging with HLV3-14RD
Imaging with HLV3-22RD-4S
Condenser Lenses and Collimated Light
Features
Select lenses according to illuminating distance, illuminating range, and uniform region to achieve optimum illumination, even in imaging environments in which the workpiece is far away.

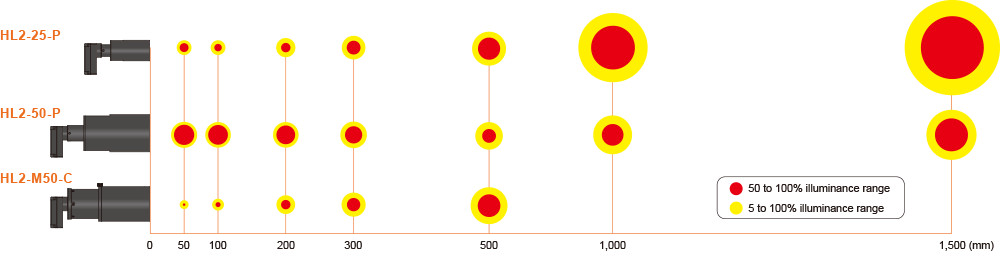

Illuminance Distribution

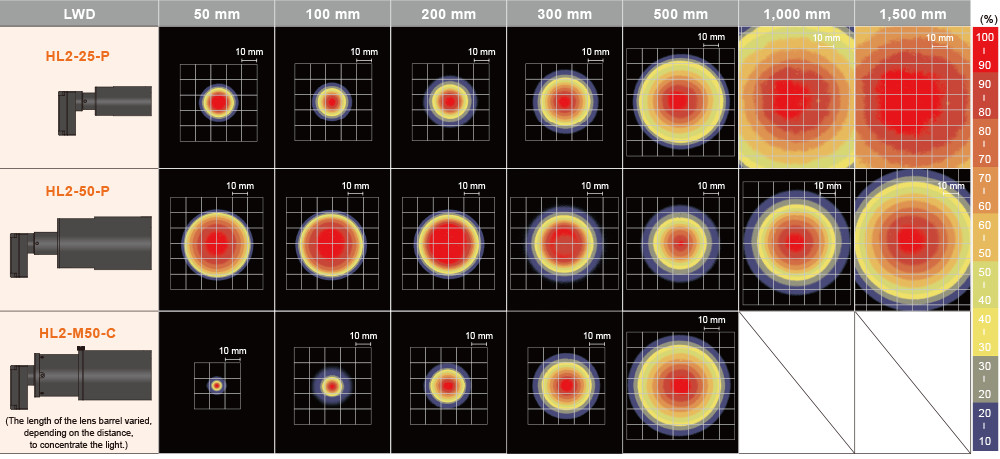

Illuminance Distributions (LWD Characteristics)
HL2-25-P + HLV3-22SW-4S
(Unit of length used for the diameter of illuminated range: mm)
LWD | 50mm | 100mm | 200mm | 300mm | 500mm | 1000mm | 1500mm |
---|---|---|---|---|---|---|---|
50~100% illuminance | φ18 | φ15 | φ19 | φ28 | φ45 | φ89 | φ128 |
5~100% illuminance | φ30 | φ30 | φ39 | φ48 | φ69 | φ141 | φ194 |
HL2-50-P + HLV3-22SW-4S
(Unit of length used for the diameter of illuminated range: mm)
LWD | 50mm | 100mm | 200mm | 300mm | 500mm | 1000mm | 1500mm |
---|---|---|---|---|---|---|---|
50~100% illuminance | φ41 | φ40 | φ38 | φ35 | φ28 | φ44 | φ67 |
5~100% illuminance | φ53 | φ52 | φ52 | φ54 | φ56 | φ79 | φ102 |
HL2-M50-C + HLV3-22SW-4S
(Unit of length used for the diameter of illuminated range: mm)
LWD | 50mm | 100mm | 200mm | 300mm | 500mm | 1000mm | 1500mm |
---|---|---|---|---|---|---|---|
50~100% illuminance | φ5 | φ10 | φ19 | φ27 | φ46 | - | - |
5~100% illuminance | φ18 | φ24 | φ38 | φ49 | φ75 | - | - |
Measured values, where the maximum illuminance within the range is 100%, using our measurement conditions. Results for individual products may vary.
Measured values are in steps of 10%, where the maximum illuminance within the range is 100%, using our measurement conditions. Results for individual products may vary.

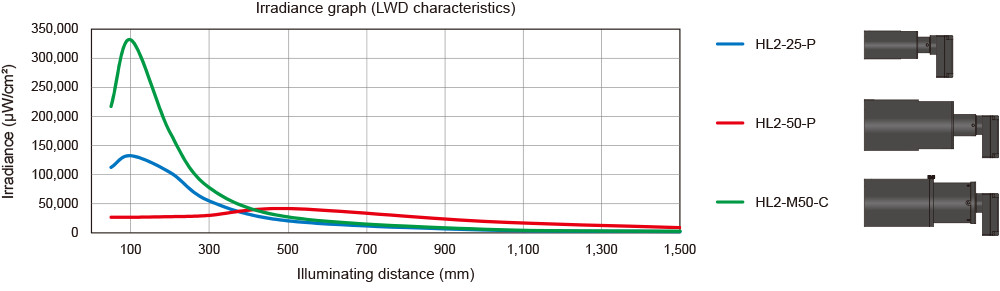

Irradiance Comparison
Condenser Lens Dimensions
HL2-25-P
HL2-50-P
HL2-M50-C
Polarizing filter (sold separately)
Many sizes available for condenser lens.
Use in combination with another one installed on the camera lens.
- For HL2-25-P Model: PL-30/PL-30-NL
(with a screw to lock the polarizing direction) - For HL2-50-P/HL2-M50-C Model: PL2-55-NL
(with a screw to lock the polarizing direction)
Light aperture adapter (sold separately)
Attach the light aperture adapter to the HLV3 Spot Light to change the directivity of emitted light.
When combined with a condenser lens, use the light aperture adapter to make fine adjustments to the illuminating distance and range.
Dedicated Control Units
Dedicated Control Units for the HLV3/HLV2 Series

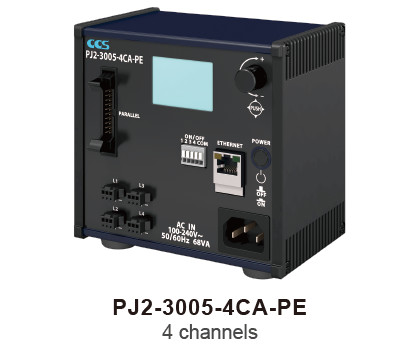

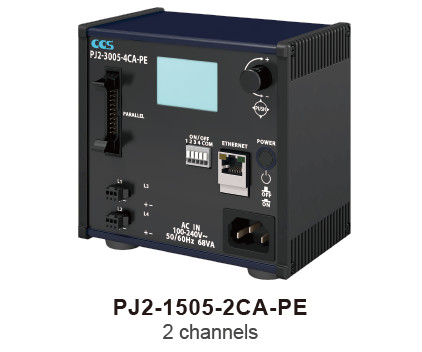

PJ2 series
Easily Check and Set Operation of Spot Lights with the Built-in LCD
Analog Control Unit to which all HLV3-series Spot Lights can be connected.
Light intensity can be set in 1024 steps. The built-in LCD allows for excellent reproducibility and detailed control. Equipped with Ethernet and parallel communications for external control. Available in 2-channel and 4-channel Spot Light output types. Select the type for your application.
Installable on |
---|
|
![]() |
Compliant models PJ2-1505-2CA-PE PJ2-3005-4CA-PE |
---|
