RGB Lighting
* Detect features with RGB Lighting.
* Switch between red, green, or blue and create your own color by blending 3 colors.
* Various models are available to fit your workpieces and inspection schemes.

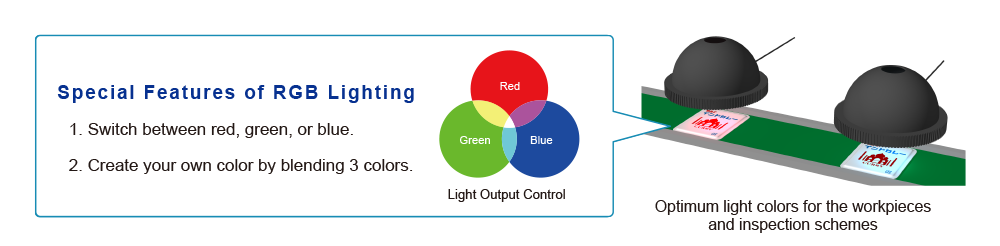

Features of RGB Lighting
Detect Features with RGB Lighting
If there are workpieces with different colors but the same shape, or if there are different types of products on the same assembly line, you need to set up suitable lighting colors to detect the features.
With RGB lighting, you can combine red, green, and blue light. This allows you to take optimum images of the workpieces by changing the illumination.
Aging variations in the radiant quantities are different for different colors of LEDs (red, green, and blue). Periodical adjustment may therefore be needed after the initial settings.
To Meet Your Needs

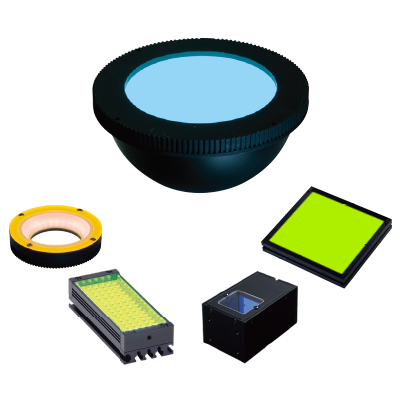

Various models are available to fit your workpieces and inspection schemes, such as Ring Lights, Bar Lights, Dome Lights, and Flat Lights. Furthermore, CCS can provide Custom LED Lights with specialized shapes and irradiation methods to meet your needs.
Ring Lights
Bar Lights

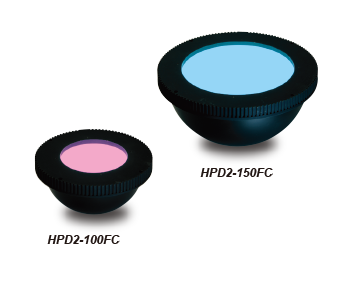

Dome Lights
Flat Lights
Coaxial Lights
* CCS provides different types of custom production. Please contact your sales representatives for details.
Imaging Example
Applications of RGB Lighting

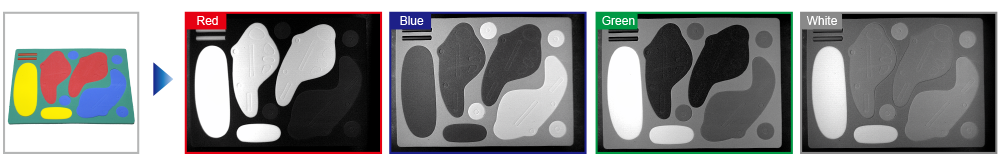

Example 1: Imaging with an RGB Bar Light
Puzzle

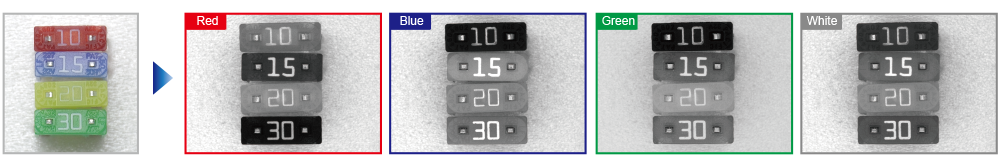

Example 2: Imaging with an RGB Dome Light
Fuse numbers

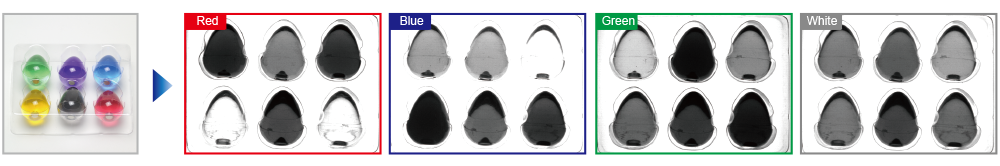

Example 3: Imaging with an RGB Flat Light
Semi-transparent products
Product Examples

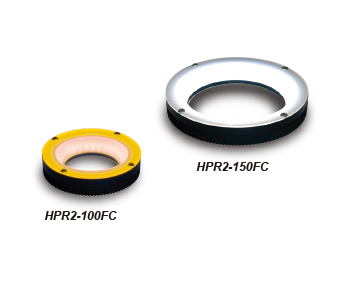

High Power Ring Lights
- The diffusion plate is covered with a light-emitting unit, creating uniform, diffused light.

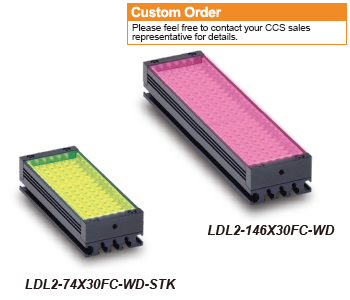

Bar Lights
- Create diffused, irradiated light with an emission width of 30 mm.
- Create diffused, irradiated light with an emission width of 30 mm.

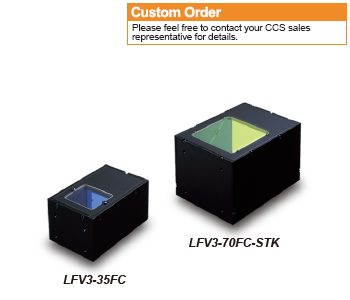

Coaxial Light
- Ideal for illuminating specular metallic surfaces.
- Uniform, diffused light creates perfectly even illumination.

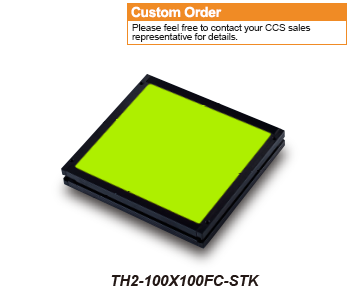

Flat Light
- Diffused light irradiated from a flat surface.
- Ideal for inspecting items using light irradiated from behind and for dimensional measurements.
* The products shown here are examples of custom-made products.
Please contact your sales representative when you are ready to design your own.
Introduction of yellow/orange lighting
Uses LEDs with specific wavelengths for special inspection applications
Series | Model name | Input Power | Power consumption | Peak wavelength(typ.) |
---|---|---|---|---|
LDR2 | LDR2-50OR | 24 V | 3.2 W | 600 nm |
LDR2-LA | LDR2-74OR-LA | 24 V | 5.7 W | 600 nm |
LDL2 | LDL2-41X16-OR | 24 V | 1.9 W | 596 nm |
LDL2-74X30-OR | 24 V | 5.7 W | 594 nm |
![This is a made-to-order product. For queries and details, contact your CCS sales representative.></div><div class=](png/icn_tokuchu_en.png)
