PSCC Series
Constant-current Analog Control Units.
Equipped for Ethernet, EIA-485, and parallel communications external control all in a single unit.
For details, please see PSCC-60048-ALT2 tab on this page or the PSCC-60048-ALT2 model page.
Features
- High-capacity constant current Analog Control Units. 300 W and 600 W models are available.
- The light intensity can be set to any of 256 or 1,000 different levels.※Parallel communications: Adjustment to 256 levels only
- You can adjust the light intensity separately for each Light Unit circuit.※With Ethernet or EIA-485 communication
- External control compatible with parallel, EIA-485 and Ethernet communication using a single unit.
- The error detection function is able to detect insufficient speed or stopping of the Light Unit cooling fan and bulb burn-out errors by disconnected or shorted LED circuit.
Example connections
Refer to the “Instruction Guide” for details.
Parallel communication
Example connections of external signal
ON/OFF input
Example connections of external signal

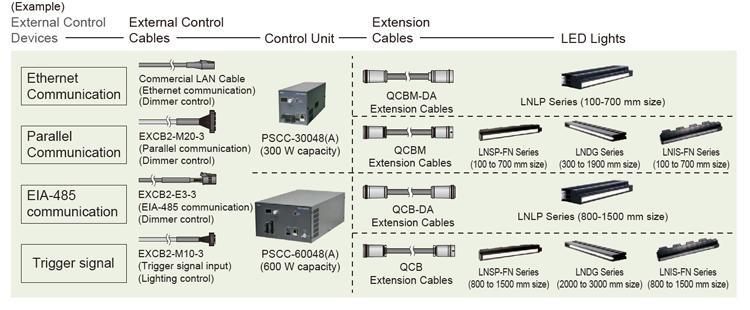

Example system configuration

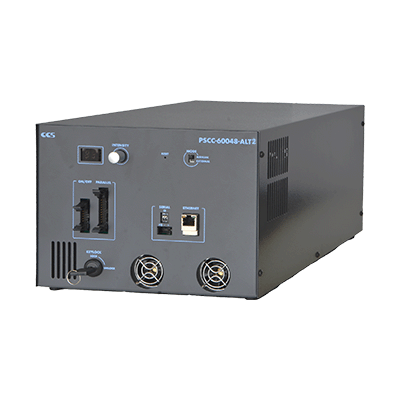

PSCC-60048-ALT2
![PSCC-60048-ALT2](gif/pscc-60048-alt2_p.gif)

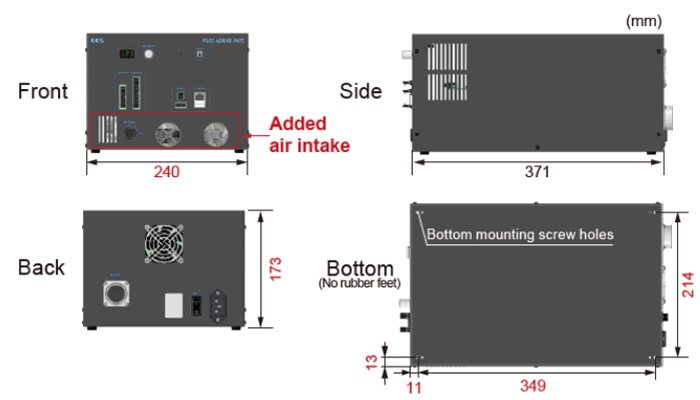

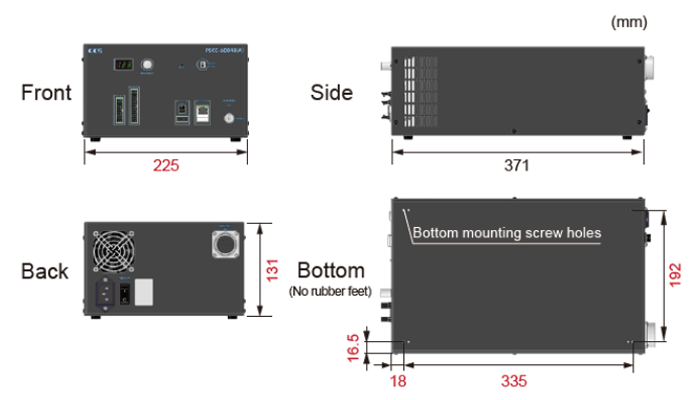

This is a comparison between the PSCC-60048(A) and PSCC-60048-ALT2 (substitute).
For details, please see Comparison (PDF)
Common Specifications
Applicable Light Unit (output ratings) | 43 VDC max., 602 W max. (including 50 W max. for fans) |
---|---|
External Control | Parallel communications, EIA-485 communications or Ethernet communications. |
Differences in main specifications
* Differences highlighted in red.PSCC-60048(A) |
Spec | PSCC-60048-ALT2PSCC-60048(A) Substitute |
---|---|---|
100 to 240 VAC (+10%, -15%), 50/60 Hz | Input power supply | 100 to 240 VAC (+10%, -10%), 50/60 Hz |
55 A (at 100 VAC), 70 A (at 240 VAC) from a cold start |
Inrush current (typ.) | 49 A (at 100 VAC), 105 A (at 240 VAC) from a cold start |
750 VA | Power consumption (typ.) | 770 VA |
10 sec or more | Standby time when power supply is turned on again |
40 sec or more |
W 225 × D 371 × H 131 mm | Dimensions | W 240 × D 371 × H 173 mm |
7,000 or less | Weight | 8,500 or less |
![]() |
Intake port position Bottom mounting screw holes |
![]() |
