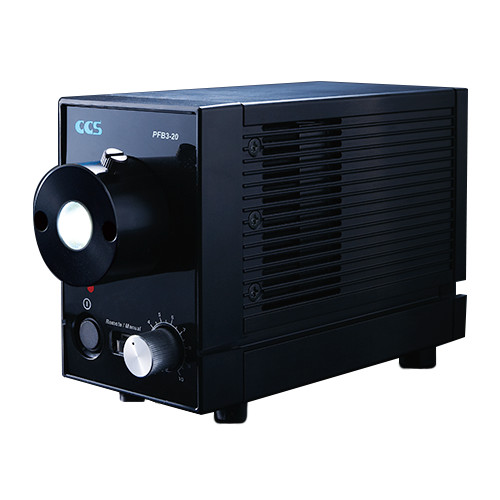

PFB3(A) Series

Provides light output that exceeds that of a 100 W halogen light source.

Advantages of replacing halogen light sources are:
1. Power consumption of 18 W greatly reduces running costs.
2. Long lifetime of 25,000 hours* to greatly reduce maintenance man-hours.
3. The compact design saves space.
4. Ambient temperatures around equipment are greatly reduced by the use of LEDs.
* Lifetime depends on application environment.

Features Light Guide Adapter Dimensions Chart Options Model Change

Features

Renewed with Increased Brightness

Achieved high output up to 1.2x that of the conventional PFB2 series.^*

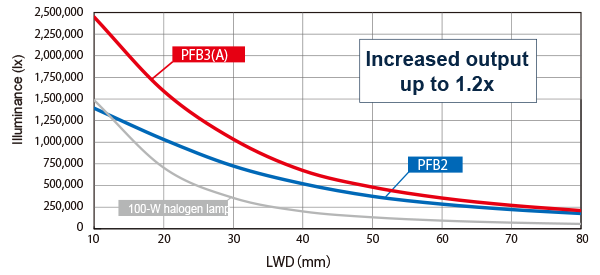

Illuminance comparison with a 100-W halogen lamp

* Actual measurement values with light intensity of 100%, using a straight light guide of Φ8 mm diameter at 50 mm LWD away from the fiber end. The data included is for reference only and the results for individual products may vary.

Select a Power Supply to Match Your Actual Environment

The terminal block on the unit rear supports 24 VDC input. With an optional AC adapter, it can also support 100 to 240 VAC input. You can make a selection to match your actual environment.

DC supply

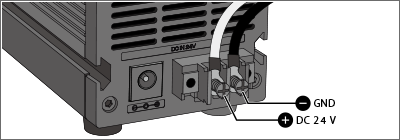

Use the terminal block on the rear of this unit for 24 VDC input.

AC supply

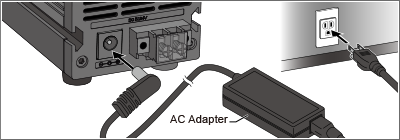

Use the optional AC adapter for 100 to 240 VAC input.
Model name: ADP2460-PFB-JTLV6
(U.S. DoE CEC Level VI External Power Supply Efficiency Standards compliant)

Supports Major Light Guide Manufacturers

Supports major light guide manufacturers (5 Japanese companies, 6 international companies).

Please refer to the "Light Guide Adapter Dimensions Chart" tab.

Selectable External Control

The lineup includes a model where intensity can only be manually adjusted, and models that allow for external control. There are three types of external control: serial, parallel, and analog. ON/OFF control and intensity control are possible by each control type.

Standard type
PFB3-20SW-JT(A)

Standard type Model List
Serial type
PFB3-20SW-SJT(A)

Serial type Model List

External control connector
D-sub 9pin
Parallel type
PFB3-20SW-PJT(A)

Parallel type Model List

External control connector
D-sub 15pin
Analog type
PFB3-20SW-AJT(A)

Analog type Model List

External control connector
D-sub 15pin

Light Guide Adapter Dimensions Chart

Supports Major Light Guide Manufacturers

Supports major light guide manufacturers (5 Japanese companies, 6 international companies).

Light Guide Adapter Dimensions Chart (mm)

Model name	Dimensions (mm)

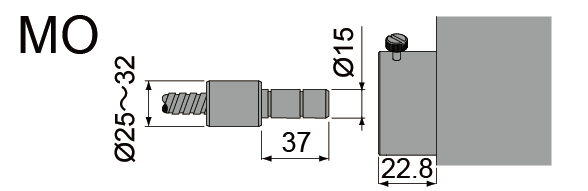

PFB3-20SW-□□□-MO(A)^* Model List

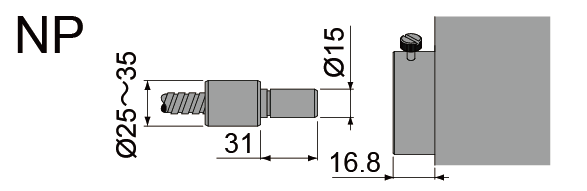

PFB3-20SW-□□□-NP(A)^* Model List

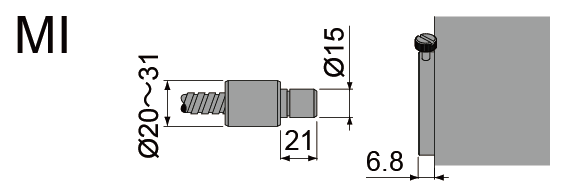

PFB3-20SW-□□□-MI(A)^* Model List

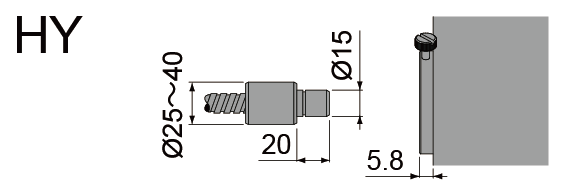

PFB3-20SW-□□□-HY(A)^* Model List

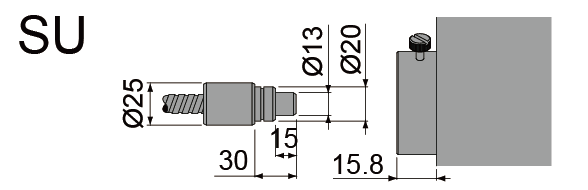

PFB3-20SW-□□□-SU(A)^* Model List

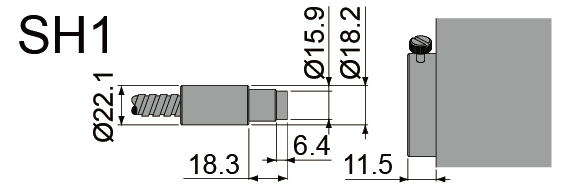

PFB3-20SW-□□□-SH1(A)^* Model List

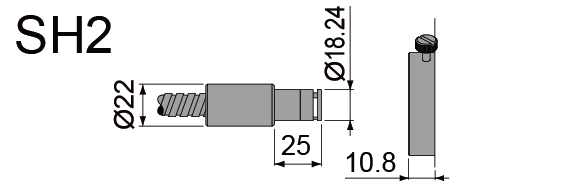

PFB3-20SW-□□□-SH2(A)^* Model List

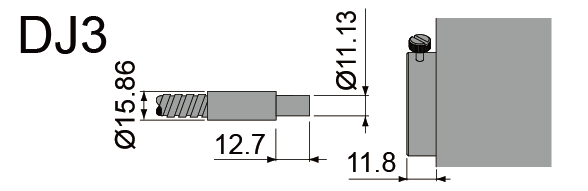

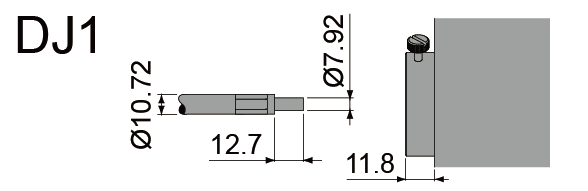

PFB3-20SW-□□□-DJ1(A)^* Model List

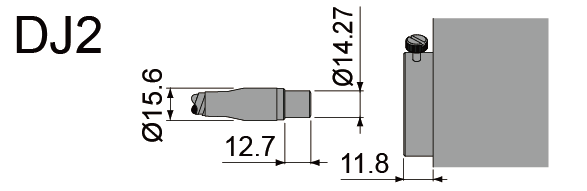

PFB3-20SW-□□□-DJ2(A)^* Model List
PFB3-20SW-□□□-DJ3(A)^* Model List

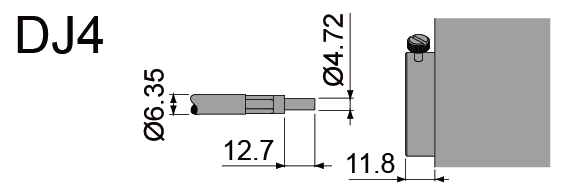

PFB3-20SW-□□□-DJ4(A)^* Model List

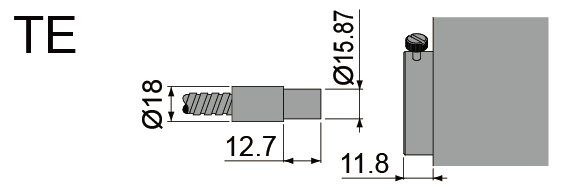

PFB3-20SW-□□□-TE(A)^* Model List

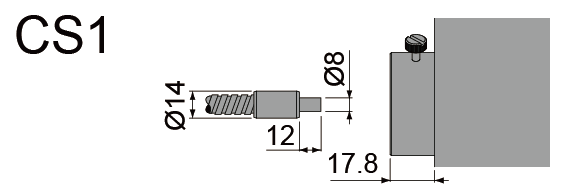

PFB3-20SW-□□□-CS1(A)^* Model List	Only for use with the CCS Micro Fiber Head HFS Series / HFR Series .
