PSB4 Series

Constant-Voltage Analog Control Unit with Ethernet Compatibility.

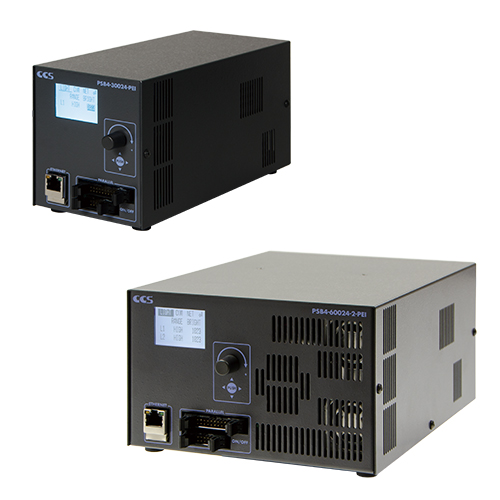

2 in 1(2 X PSB4-30024-PEI in 1)

PSB4-30024-PEI (1 channel)
PSB4-60024-2-PEI (2 channels)

Features

300 W per channel and Ethernet Compatibility

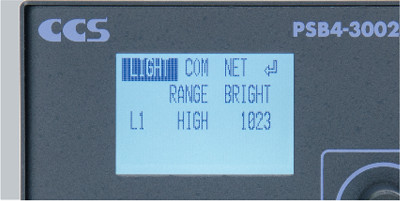

LCD for Improved Legibility

Displays settings, Control Unit status, and operating menus.

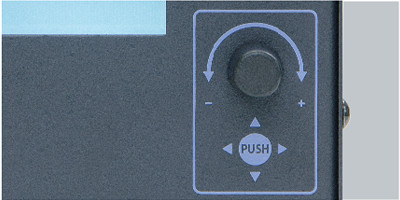

Operating Knob Enables Direct Control

Just turn, press, push in, and push and hold the knob to use the Control Unit.

External Control through Ethernet & Parallel Communications

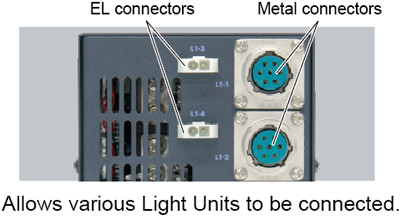

Equipped with Metal & EL Connectors

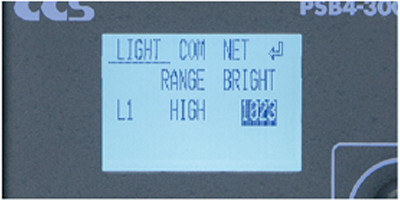

Light Intensity Can Be Set in 256 or 1,024 Levels

Light intensity levels can be selected only when using manual control and parallel communications. Ethernet communications is fixed to 1,024 levels.

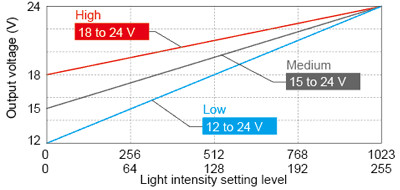

Light Intensity Range Can Be Changed between Three Levels

Select the appropriate range for your application or the characteristics of your Light Units.

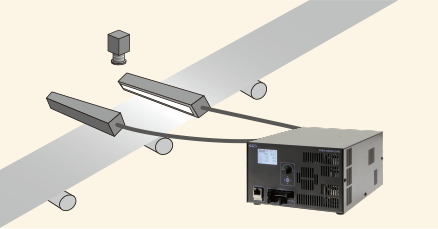

Example Configurations (2 channels)

Equipped with 2 channels. Independent operation possible.

*Image is for illustration purposes.

Multiple lights can be individually controlled with a single control unit.

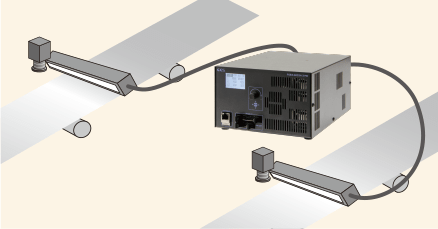

Use individually

Use individually Individually control lights for each inspection line

Individually control lights for each inspection line.

Use on two sides

Use on two sides Can be dimmed individually to adjust variations in brightness.

Can be dimmed individually to adjust variations in brightness.

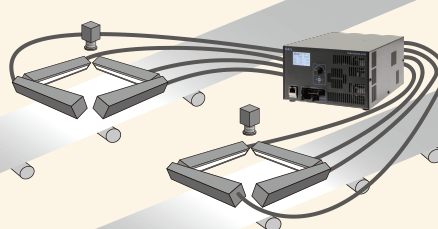

Use on four sides

Use on four sides Surround from four directions for individual line light control.

Surround from four directions for individual line light control.

Up to 300W per channel, for 600W total of connected lights. Lights from our wide lineup can be connected.

Line sensor lights

LNSP2 series

LNSP2 series

LNSD series

LNSD series

LNIS series

LNIS series

Flat lights

Long type

Long type

Large type

Large type

Hole type

Hole type

Lights from our wide lineup can be connected.

Various light models can be connected, such as line sensor lights and area sensor lights. Contact our local sales office for details.

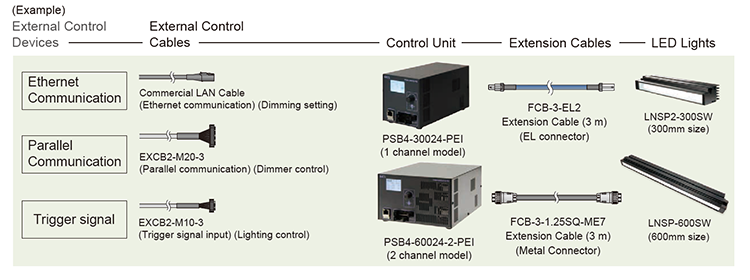

Example system configuration
