IR2 Series (under 1000nm)

These IR Lights provide a selection with peak wavelengths.
A rich product lineup of 7 series and 36 models.

Download Pamphlet PDF

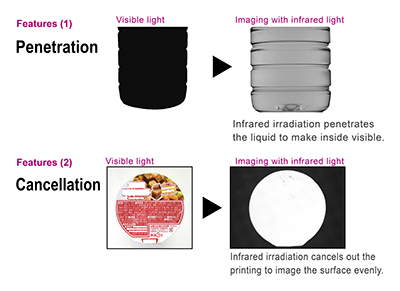

Features

Merits

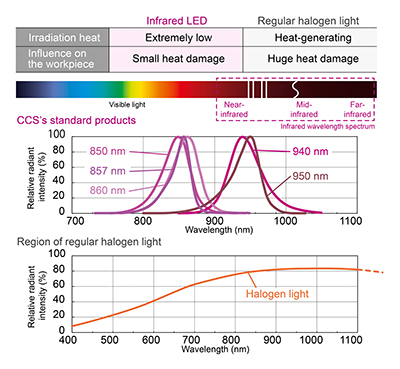

Irradiation of the Infrared LED includes only the energy of specific region of wavelength, so that the irradiation heat is extremely low compared to the halogen lights and gives less damage on the workpiece.

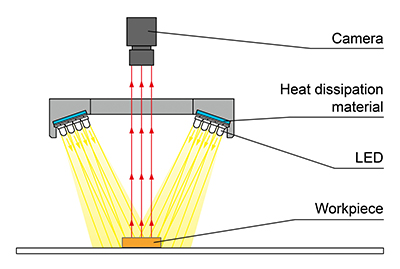

Example configuration

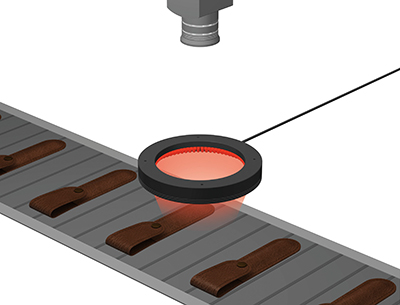

Ring Lights that use infrared LEDs. Bar types and coaxial types are also available. Select your format to match your needs.

LDR2-90IR2-850/940

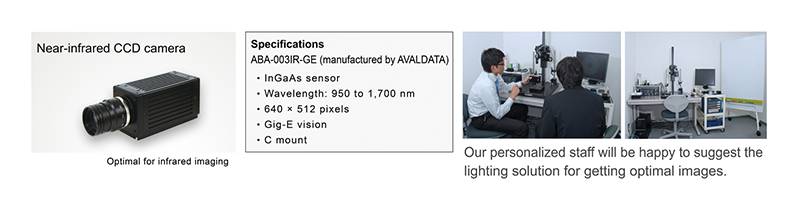

Near-infrared cameras in the testing rooms

Ready for the test with infrared light over 1,000 nm wavelength

CCS is deploying infrared-sensitive CCD cameras in the testing rooms where you can perform workpiece tests directly for yourself using our LED Lights. Please feel free to make an appointment. We are looking forward to helping you.

Characteristics/Data

LED properties

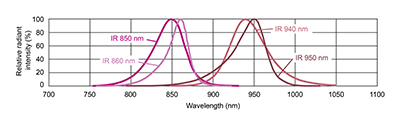

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the “Instruction Guide” included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

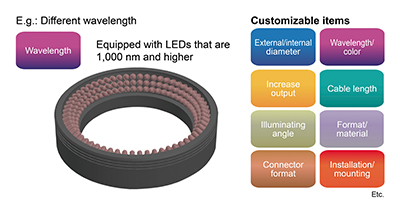

Custom Order Example

Please contact your CCS sales representative.

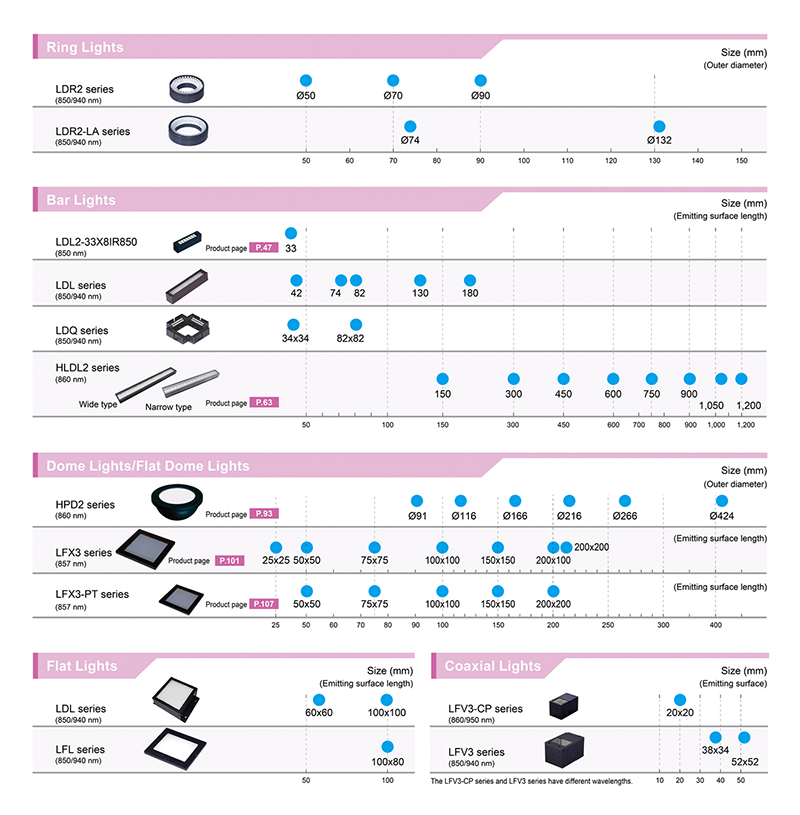

Extensive lineup of Infrared Lights

Custom products with a wavelength of 1,000 nm or more are available, please contact your CCS sales representative for details.

Imaging Example

Imaging the using visible and infrared light

Infrared light is light that has a wavelength longer than that of visible red light and cannot be seen by the human eye. Compared to visible red light, infrared light has a low scattering rate and high transmittance rate, and therefore is used in imaging which penetrates printed patterns or liquids.

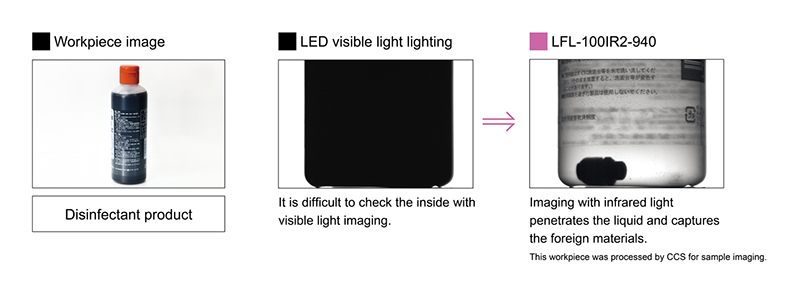

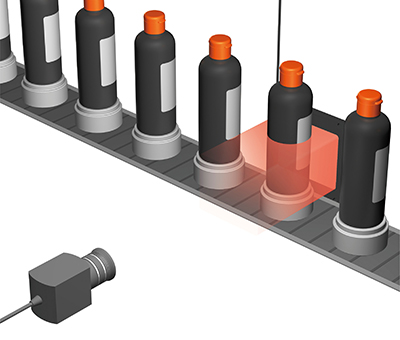

Imaging the foreign materials in disinfectant product

Description Foreign materials inspection
Workpiece Disinfectant product
Conventional lighting LED visible light lighting
New lighting LFL-100IR2-940
Result Infrared lighting penetrates the liquid

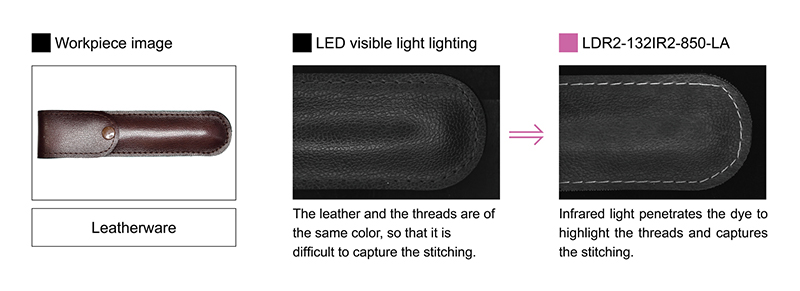

Imaging the appearance of leatherware

Description Visual inspection
Workpiece Leatherware
Conventional lighting LED visible light lighting
New lighting LDR2-132IR2-850-LA
Result Infrared lighting penetrates the dye on the threads
