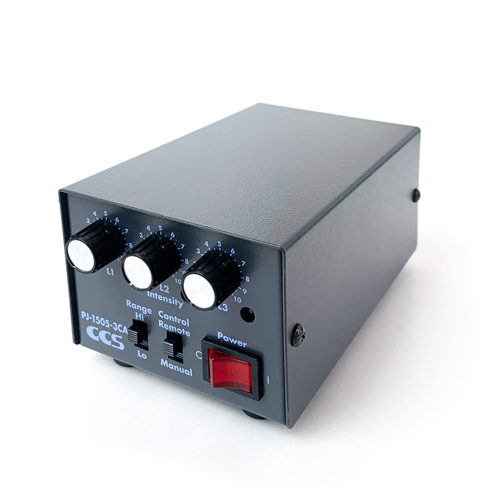

PJ Series

These Analog Control Units enable step-less control of the light intensity through constant-current control.
CCS provides a product lineup of 2-channel and 3-channel units.

Download Pamphlet PDF


Example connection

Refer to the “Instruction Guide” for details.

PJ series

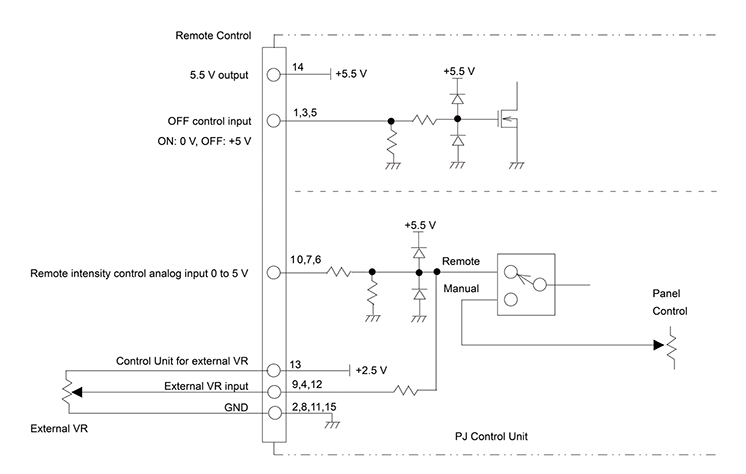

Example connection

Remote intensity control or external VR can be used. (Cannot be used at same time.)

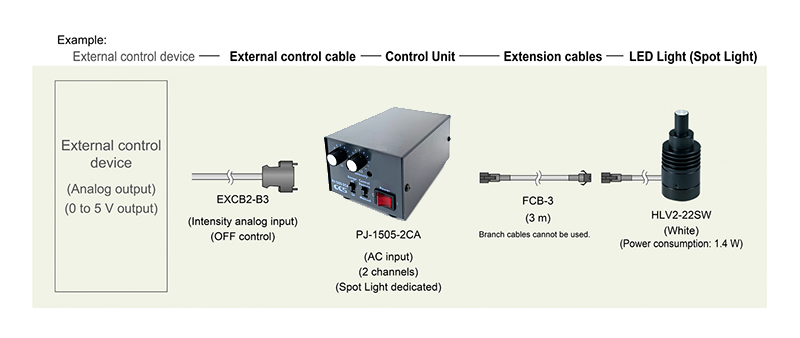

Example system configuration
