LND2 Series

These Line Lights achieve high brightness which is equivalent to a fluorescent lamp while keeping the price down.
Highly uniform diffused light is irradiated.

Download Pamphlet PDF

Features

Suitable for all types of line sensor inspections

This Line Light achieves brightness equivalent to a fluorescent lamp while keeping the price down.

Emitting surface length

You can select from 101 mm, 201 mm, 301 mm, 401 mm, 501 mm, 603 mm, 703 mm, 803 mm, 903 mm, 1003 mm, 1103 mm and 1,203 mm.

For a custom order, we can create an emitting surface with a length with a 100 mm pitch.

LED color

For emitted LED color, we have a lineup consisting of:

Red and White Select your Light Unit based on the details of your inspections.

For a custom order, we can create LEDs that emit blue, green, IR, or UV.

Also perfect for replacing fluorescent lamps

LEDs have a long service life, so the bulbs don't burn out like fluorescent lamps, thus reducing costs for lamp replacement and work hours.

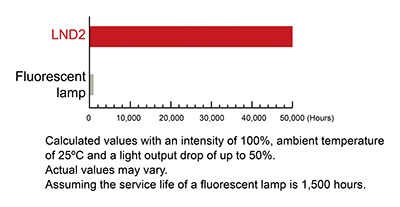

Comparison of service life between the LND2 (red) and a fluorescent lamp

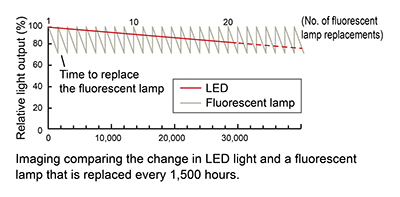

Change in the amount of light from the LEDs and work hours for replacing fluorescent lamps

Applications

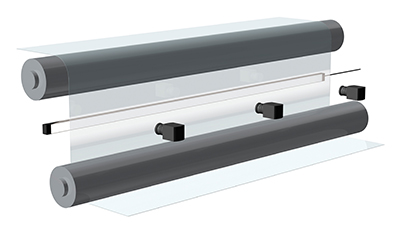

Foreign material inspection for clear film

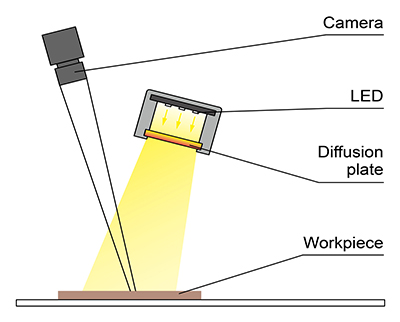

Example configuration

Provides diffused light with a high degree of uniformity by mounting LEDs with high density.

LND2 series

Characteristics/Data

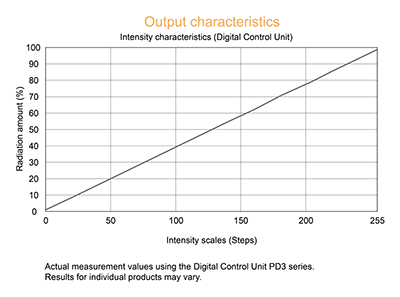

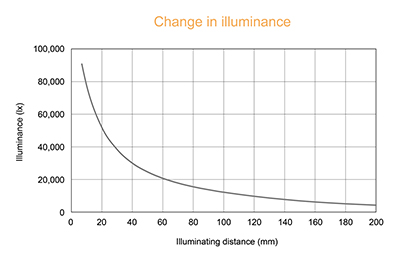

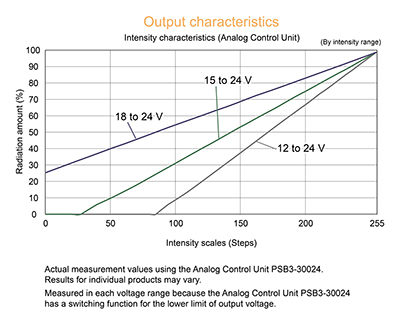

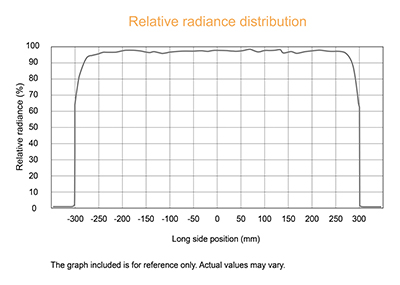

Data (Representative example)

※The graph included is for reference only. Actual values may vary.

LND2-600SW

LND2-300SW

LND2-300SW

LND2-900SW

LED properties

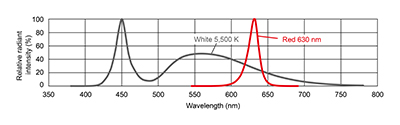

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

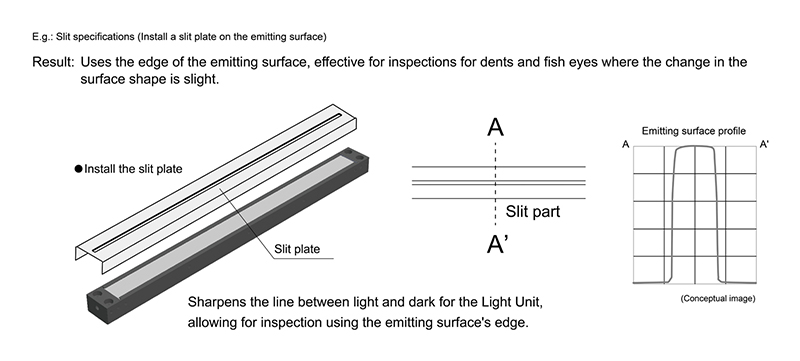

Custom Order Example
