OLCB-2

These cables are used for connecting the light cable and the Dedicated Control Unit for OLED.

Add to Watch List

Cable length	2 m
Connectors (Light Unit side)	connector (6-pin)
Connectors (Control Unit side)	Metal connector (6-pin)
Minimum bending radius (reference value)	35.4 mm
Operating temperature and humidity	Temperature: 5 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 50 ℃, Humidity: 20 % to 85 %RH (with no condensation)
Conformed standards	CE, UKCA、RoHS
Weight	127 g max.

Product Details Dimensions (mm) Downloads

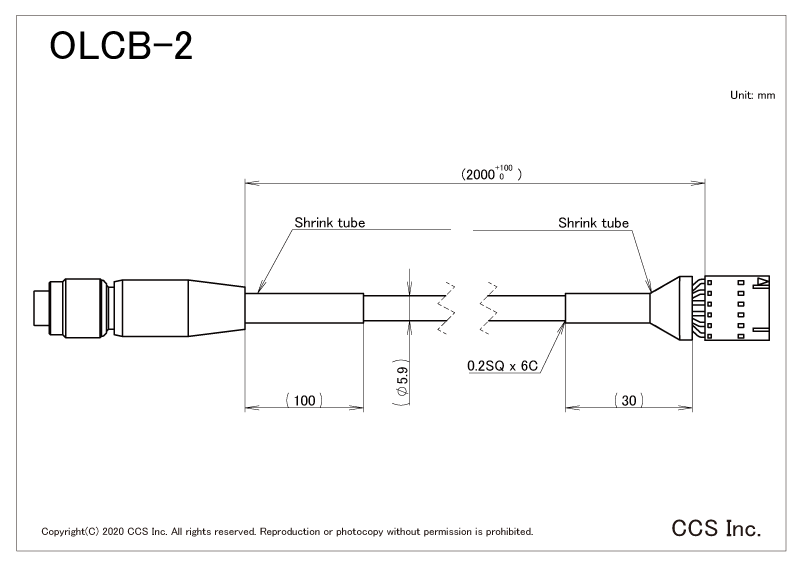

Dimensions (mm)

Downloads

PDF Drawing	DXF Drawing	Pamphlet
