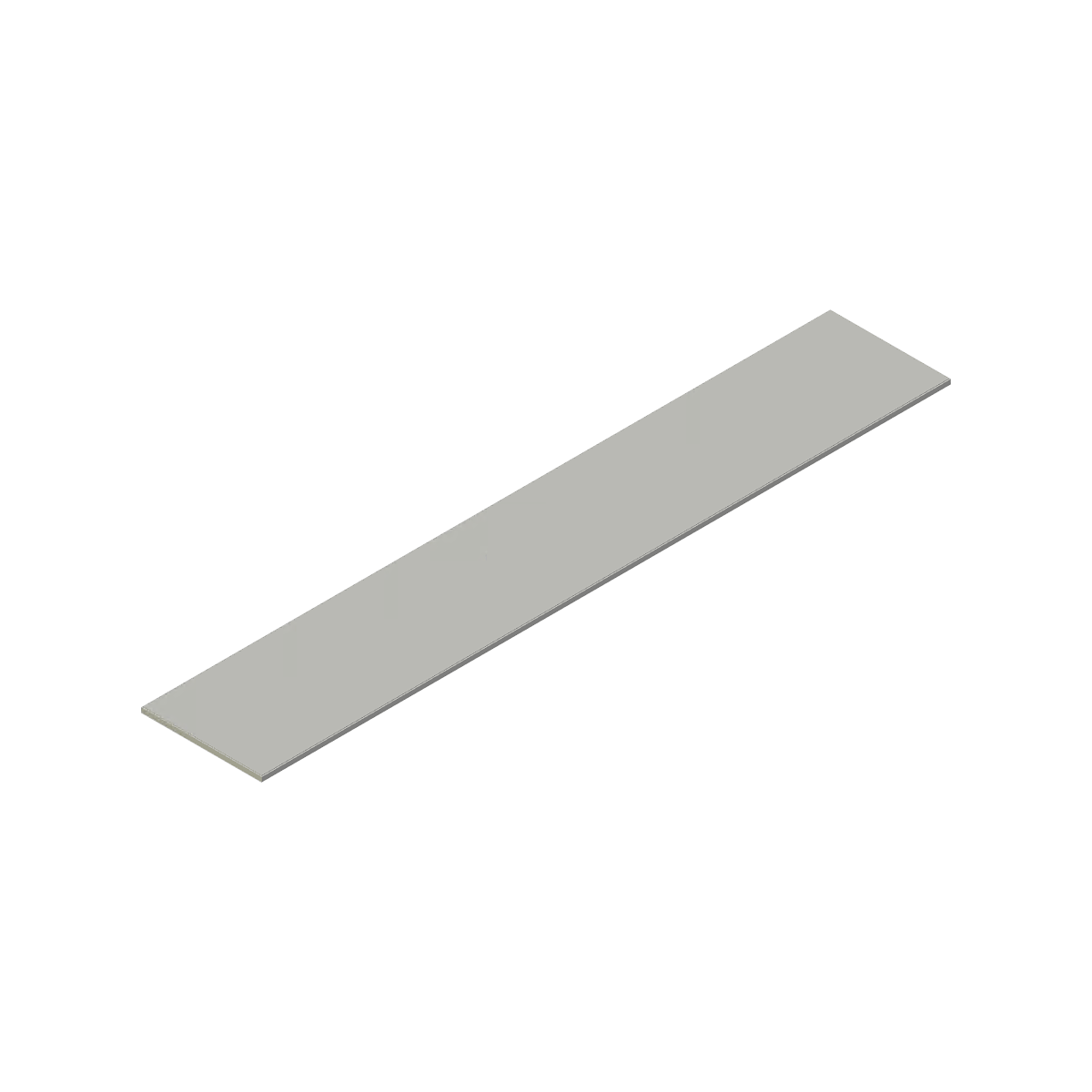

Polarizing Plates [for LB Series]
Polarizing plates for the LB Series.
These plates are used to linearly polarize the light.
Use the polarizing plate in conjunction with a polarizing filter (PL Series, PL2 Series) mounted to the lens to prevent light reflection.

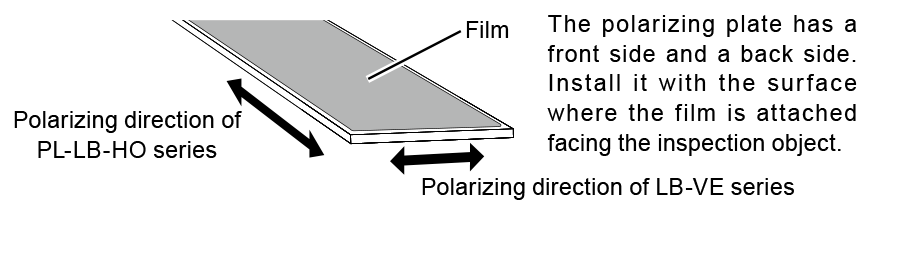

-VE: Polarization direction is perpendicular with respect to the long side.
-HO: Polarization direction is parallel with respect to the long side.
* Not available for infrared models.
About product
Lineup
PL-LB-HO Series (n=200 to 2700) |
PL-LB-VE Series (n=200 to 2700) |
Applicable Light Units (excluding infrared type) |
---|---|---|
PL-LB-nX50-HO | PL-LB-nX50-VE | LB-H-nX50 Series LB-nX50 Series |
PL-LB-nX100-HO | PL-LB-nX100-VE | LB-nX100 Series |
PL-LB-nX150-HO | PL-LB-nX150-VE | LB-nX150 Series |

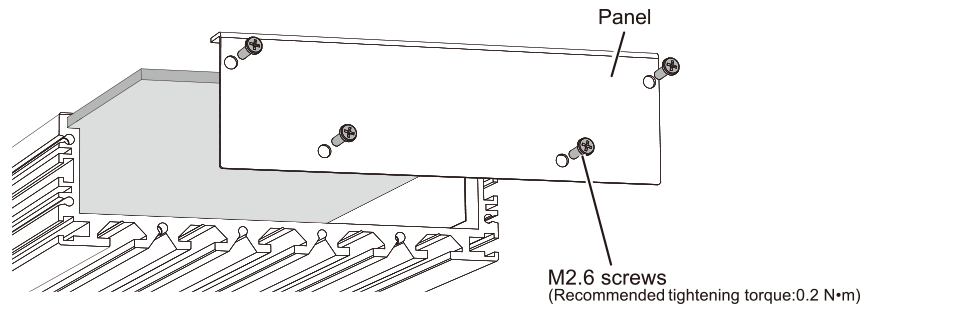

Installation Method
![Installation Method](png/lb_option_01_e.png)
For light units that have one light cable
For light units that have two light cables
Please note
- The film on these polarizing plates has seams. For detailed information, refer to the corresponding drawings.
- The attachment of the film to the resin plate may be affected by changes in the environment, but this does not impact the function or performance.
- Not available for infrared models.
