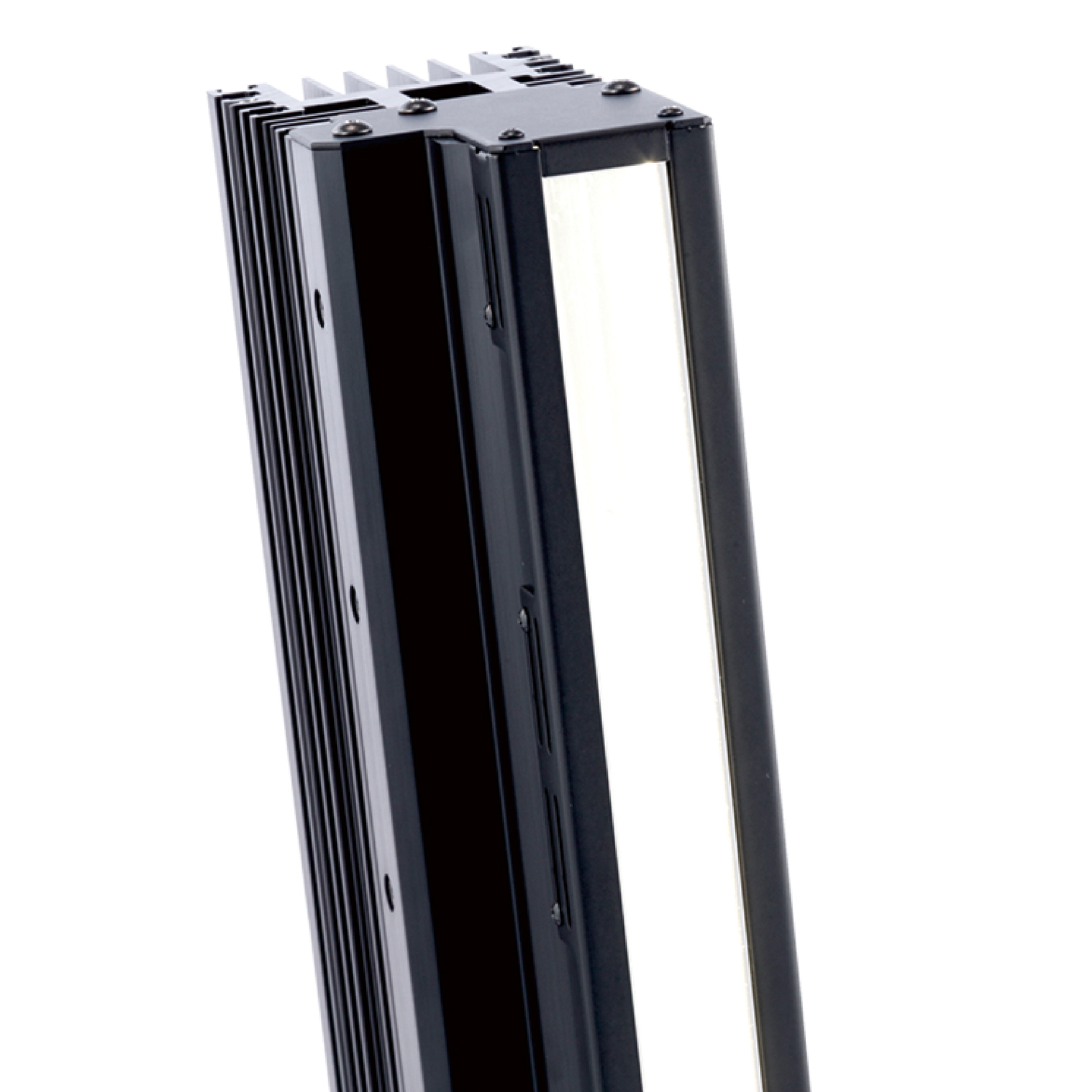

High-Illuminance Line Lights
- Well-Suited for High-Speed Line Scanning 2.8million lx LED
- Provides High Output to Easily Replace Metal halide lamp Sources
- Light emitting surface length up to 3 m for standard products.(* For sizes longer than 3 m, please contact us)
- Forced air cooling system with fans and unique design reduces exhaust airflow directed to the workpiece
- "n" in the model name indicates the light emitting surface length (in 100 mm units)
- "△" in the model name indicates the LED color with one of the following letters: SW (white), RD (red), or BL (blue)
- Available only in specific regions.Please contact your CCS sales representative for more information

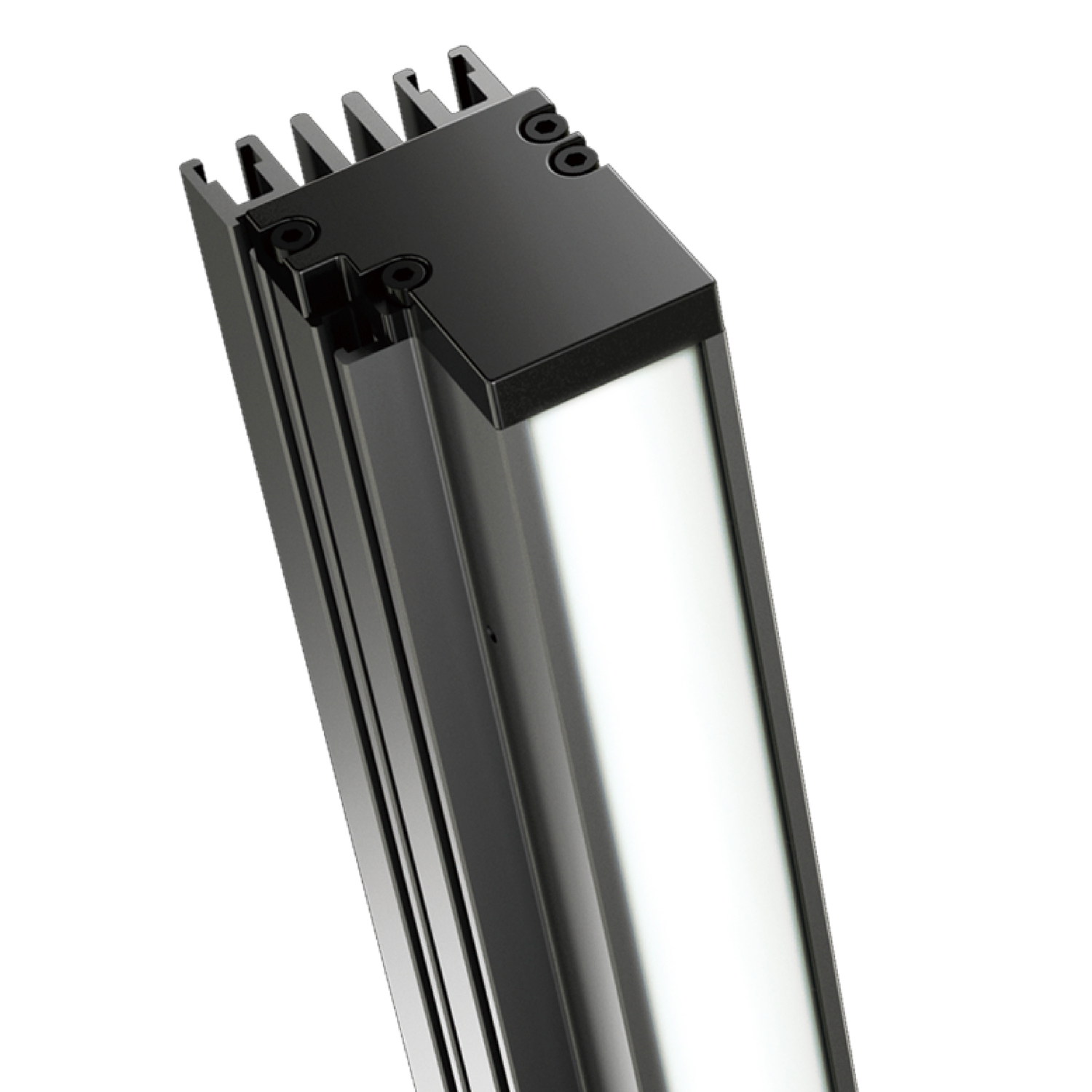

High-Illuminance Slim Line Lights
- Compact but High-Performance
- Industry-leading high illuminance with slim and fan-less case design
- Light emitting surface length up to 3 m
- Fan-less cooling system suitable for use in a clean room environment, such as for medical equipment production
- "n" in the model name indicates the light emitting surface length (in 100 mm units)
- Available only in specific regions. Please contact your CCS sales representative for more information

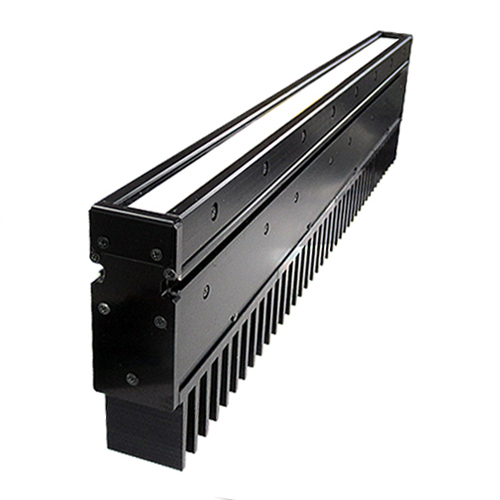

An illuminance of one Million lx without cooling fans.
The original unit shape enables both low- and high-angle illumination.
Download Pamphlet PDF

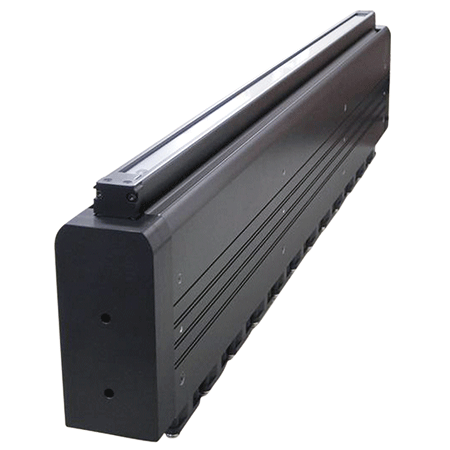

High illuminance Light Units for Line Sensor.
Achieved an illuminance of 900,000 lx by using a natural air-cooling system.
Download Pamphlet PDF
These Line Lights achieve high illuminance and high uniformity.
Error detection function helps you avoid accidents.
Download Pamphlet PDF
- Illumination Structure
- High-output Line Lights with fan cooling. The emitted light is not easily diffused, so that light quantity loss is minimal, enabling long irradiation distance.

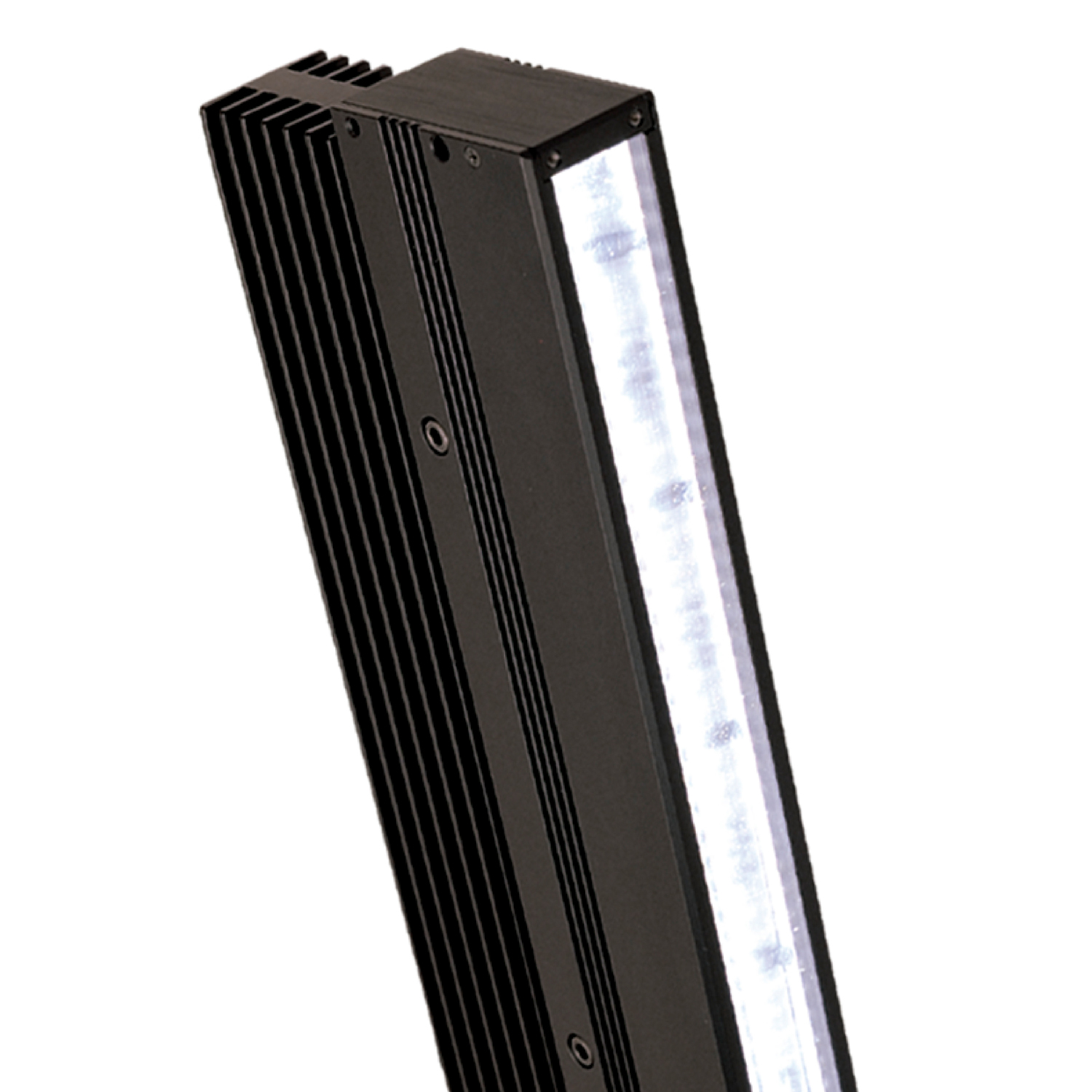

The width of the converged light can be adjusted by changing the end unit. Units with 60-mm or 20-mm light-emitting surface are available. The LN-HK Series, which provides high power illumination with white power LEDs and unique heat-dissipating structure, is also available.

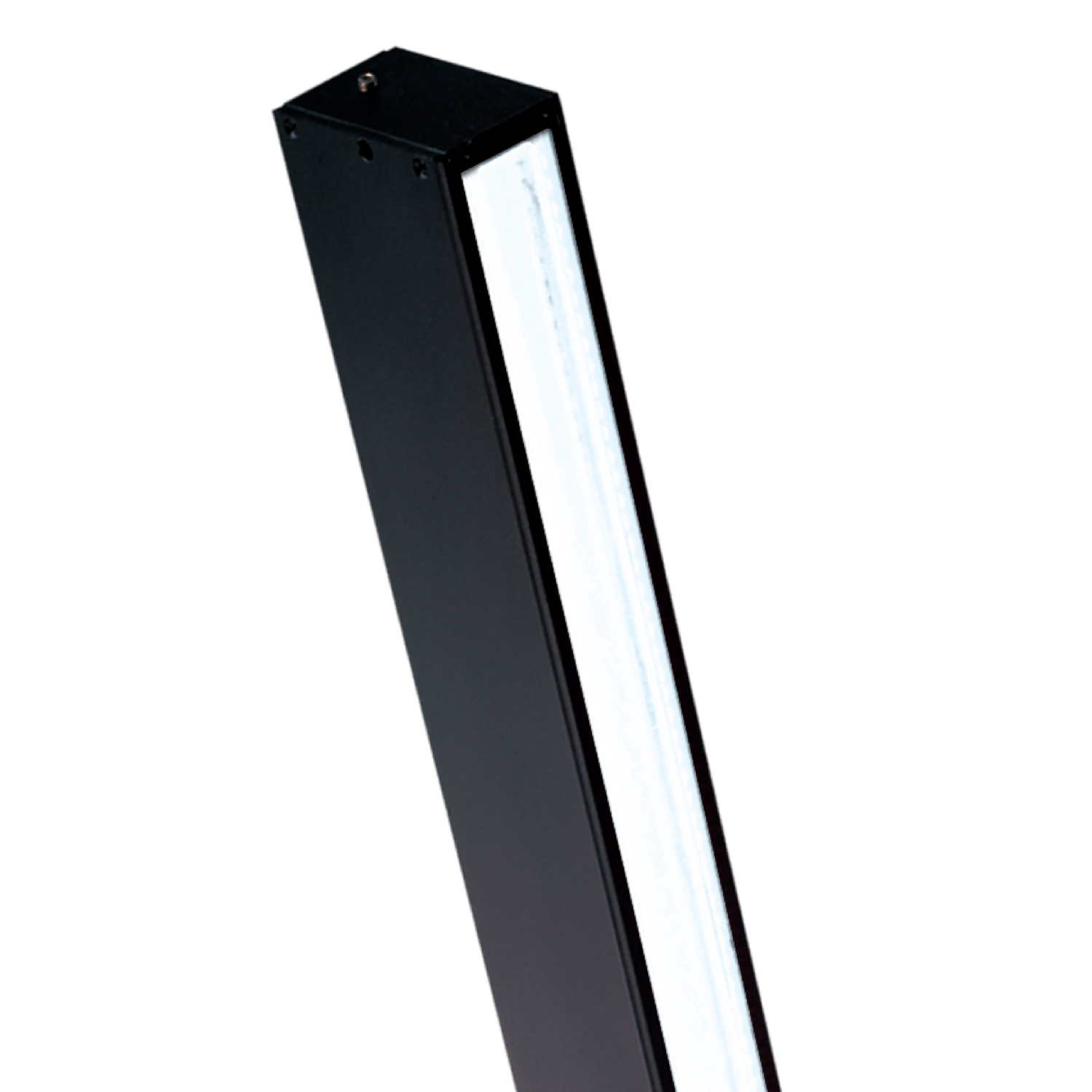

- Illumination Structure
- These Line Light Units radiate converged line light by transmitting the light from chip LEDs through a cylindrical lens mounted at the tip.
The width of the converged light can be adjusted by changing the end unit. Units with 60-mm or 20-mm light-emitting surface are available. Provides high power illumination with white power LEDs and unique heat-dissipating structure.
