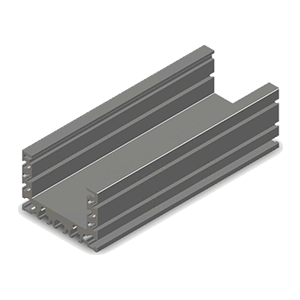

AD-HLDL3 Series
Brackets for the HLDL3 Series.
This bracket is used to install the HLDL3 Series light unit (body width: 44 mm) in the same way as the HLDL2 Series light unit (body width: 62 mm).

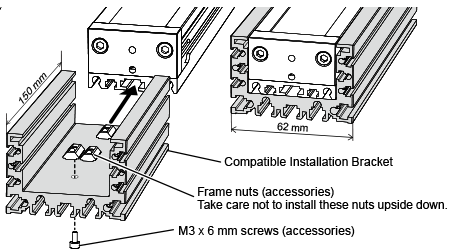

Installation
Caution
- The thickness is increased by 16 mm compared with wide type HLDL2 Series lighting. If using wide type secured from the back, the light emitting surface will therefore be closer than usual to the irradiated object.
