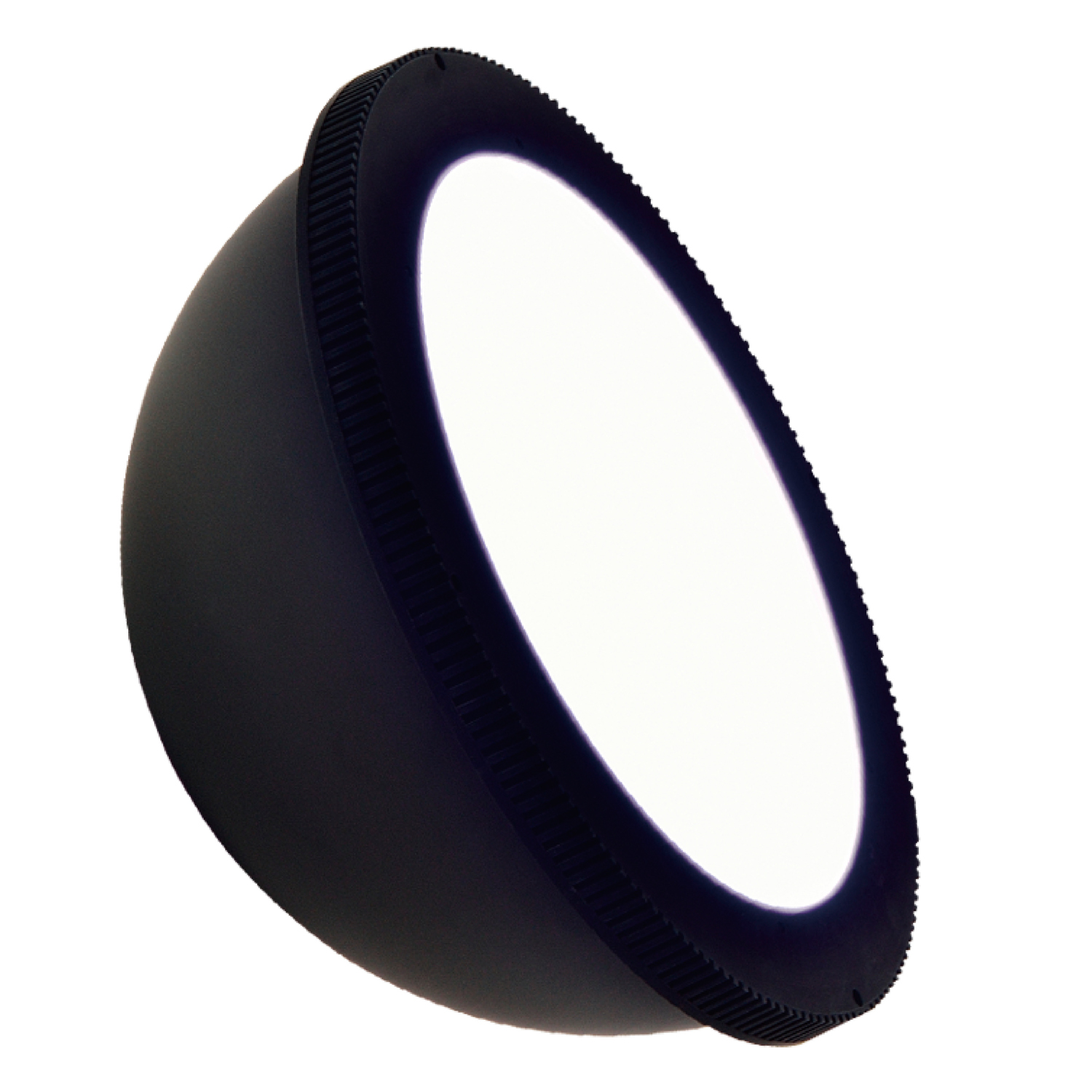

HPD2 Series
These are "high-power", "uniform", and "easy to use" Dome Lights with three times the brightness of the previous models.
Increased size variations, full color (RGB) models, and infrared (860 nm) models were added in the standard product lineup. Abundant lineup of optional products such as the joint brackets is provided.
Download Pamphlet PDF
Features
Supports applications for a wide variety of industries
It is bright and even if the distance from the workpiece to the Light Unit is changed, there is little change in the uniform region. Therefore, it can be used in a wide range of industries.
Semiconductor industry
(Circuit board)
Electronic parts industry
(Condenser)
Food industry
(Chocolate)
Packaging industry
(Top of a drink container)
Illuminates diffused light at high output
Light from the surface-mounted LEDs is diffused inside the dome-shaped reflective panel. The diffused light from the wide uniform region is illuminated evenly.

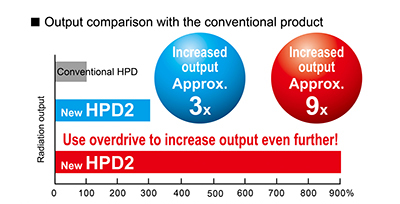

Achieved higher output than the conventional product
- This is a comparison between the HPD-100 and HPD2-100, using red and white colors.
- It can be combined with a Strobe Control Unit for even brighter emission than continuous emission.
- The data included is for reference only and does not guarantee the quality of this product.
Added two sizes and an infrared and full color (RGB) type
We added the HPD2-75 and HPD2-200 models. Also, we added infrared (860 nm) and full color (RGB) types to the lineup as variation for wavelengths, increasing the applications of our products.

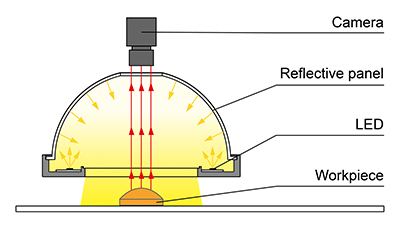

Example configuration
Uses a unique illuminating mechanism to illuminate diffused light at high output.
HPD2-150
Characteristics/Data

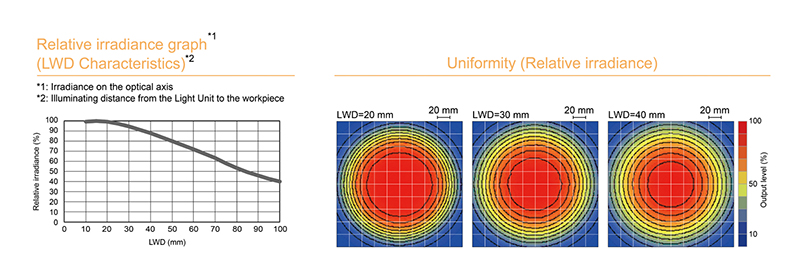

Data: Relative irradiance graph and uniformity (Representative example)
※The data included is for reference only. Actual values may vary.
HPD2-200SW
LED properties

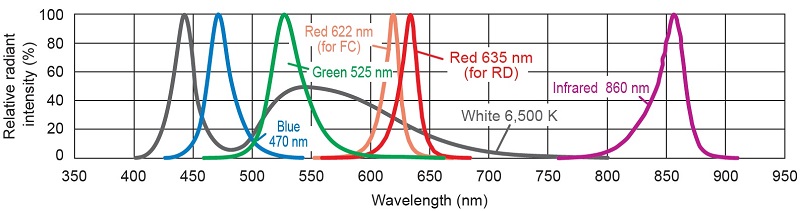

Spectral distribution
CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.
The data included is for reference only. Actual values may vary.

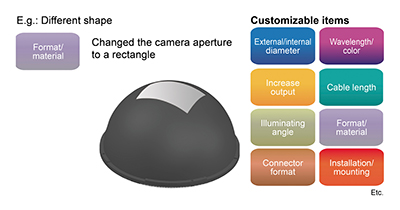

Custom Order Example
Please contact your CCS sales representative.
Imaging Example

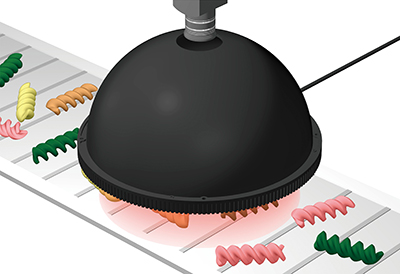

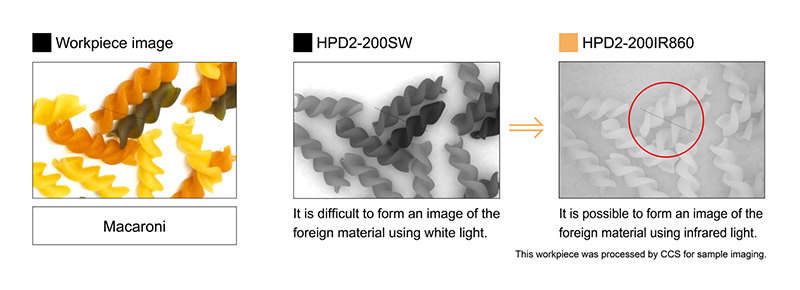

Imaging of foreign materials mixed in food
![](jpg/hpd2_08.jpg)
Description | Mixed foreign materials inspection |
---|---|
Workpiece | Macaroni |
Conventional lighting | HPD2-200SW |
New lighting | HPD2-200IR860: Infrared type |
Result | Emphasizes the foreign material |

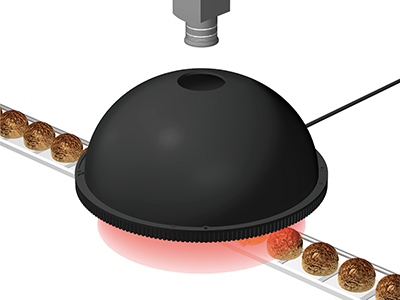

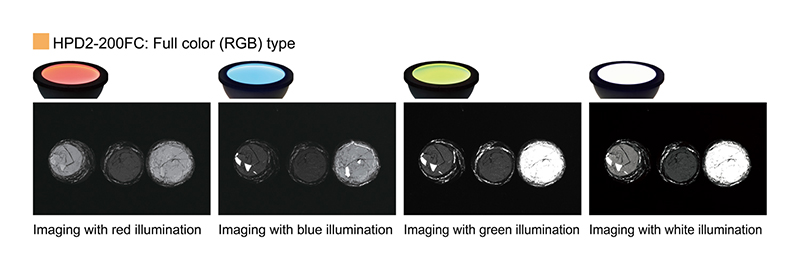

Exterir imaging using color determination of a multi-colored workpiece
![](jpg/hpd2_10.jpg)
![](jpg/hpd2_11.jpg)
Description | Visual inspection |
---|---|
Workpiece | Chocolate |
Conventional lighting | ― |
New lighting | HPD2-200FC: Full color (RGB) type |
Result | Allows for multi-color determination |
