PD2 Series

Not available from "Dec/31/2023".

Select a Digital Control from a product lineup of six models according to the required total power consumption and the number of channels.
Note: Select a model after making sure that the total power consumption of the Light Units is within the output power capacity of the Control Unit.

  • Digital Control Units

Features

  • You can select either 12 V or 24 V type according to the input voltage of the LED Light being used.
  • You can select from 10 W, 30 W and 50 W types according to the power consumption of the LED Light being used.
  • You can select from 2, 4 and 8-channel types if you are using individual intensity settings for multiple Light Units.
  • You can select an optional external control cable if you are using external control（EXCB2）（NFCB2）

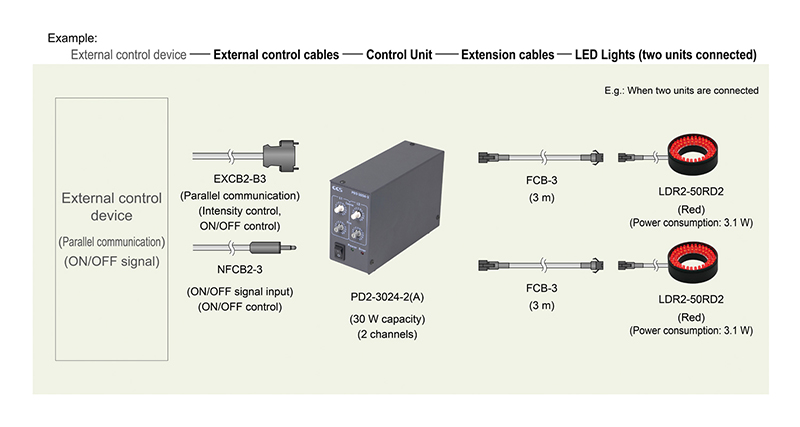

Example connection

Refer to the “Instruction Guide” for details.

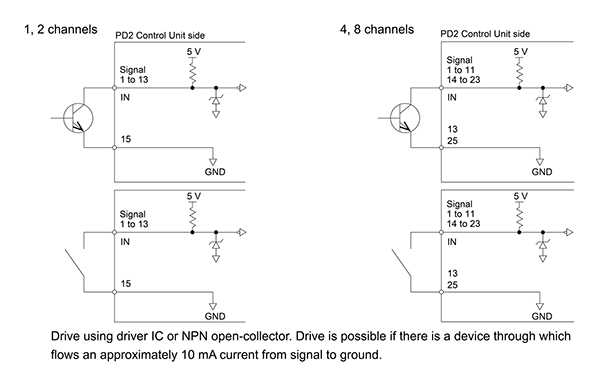

Example connections
of external control signal

Example system configuration
