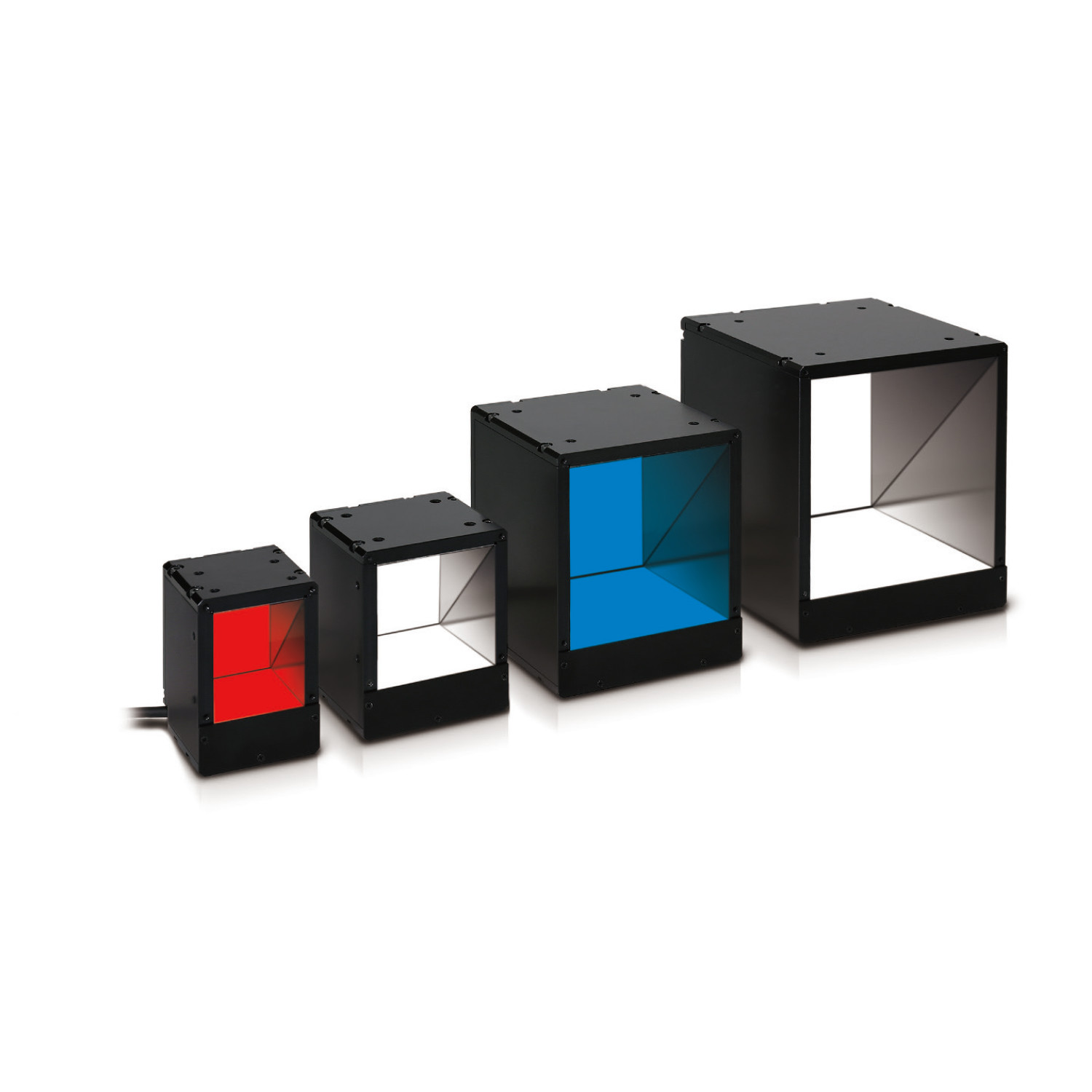

Coaxial Lights for high-resolution cameras.
Slim half mirror prevents ghost images.
- Equipped with a slim half mirror
- Prevents ghost images and achieves high-resolution imaging
- Particular lighting technology achieves high output and high uniformity
- Available in eight sizes and three colors(Red,Blue,White), for a total of 24 models.

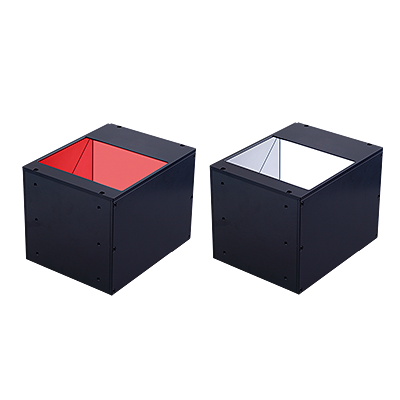

LFV-G-PF Series high-resolution coaxial lights for high-power strobe lighting.
Thin half-mirror prevents ghost images.
Slim half-mirror to suppress ghost images.
- For high-speed imaging with high-resolution cameras.
- Freely adjustable flash timing enables strobing within the exposure period of the camera.
- Solves your xenon flash lamp problems.

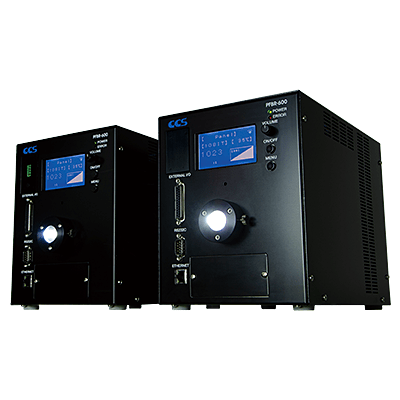

Updated PFBR-600 high-output light source units to easily replace 350 W metal halide or xenon flash light sources.
- Great for inspecting small electronic components (like semiconductor)
- Output increased more than 1.4x that of conventional products.*1
- Stable light output is maintained over long periods with a service life of 23,000 hours.*2
- Continuous lighting and strobe lighting (internal trigger mode and external trigger mode) can be selected.
- Filter changer model for transmitting specific wavelengths, high power & high speed switching model (custom-order product), and dedicated strobe model (custom-order product) are also available
*1 Comparison with conventional product PFBR-600SW-LL
*2 Expected service life at 50% maximum light quantity when the feedback control function is enabled.

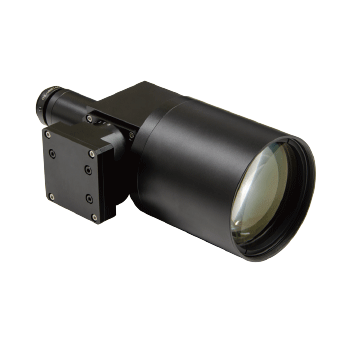

Lens-integrated parallelism-variable coaxial lights (custom order).
Integrated lens for easy light source and camera optical axis adjustment.
![Built to<br />
order](png/icn_tokuchu_en.png)
This is a made-to-order product. For queries and details, contact your CCS sales representative.
These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens.
Mirror surface workpieces are uniformly illuminated without unevenness.
The diffusion plate is adjustable and exchangeable.
Download Pamphlet PDF
- Illumination Structure
- These illumination Coaxial Light Units use a special heat-dissipating structure, and radiate light in the same axis as the camera axis through the use of a half mirror.
These Coaxial Lights provide collimated lighting which is created through a special lens.
The product lineup includes five models with different fields of view and the LED colors of red (RD2), white (SW), blue (BL), and green (GR).
- Illumination Structure
- These Coaxial Light Units radiate collimated light through the use of the unique lighting technology. They are ideally suited for photographing minute scratches, dents, and marks that are difficult to be photographed with illumination Coaxial Light Units.

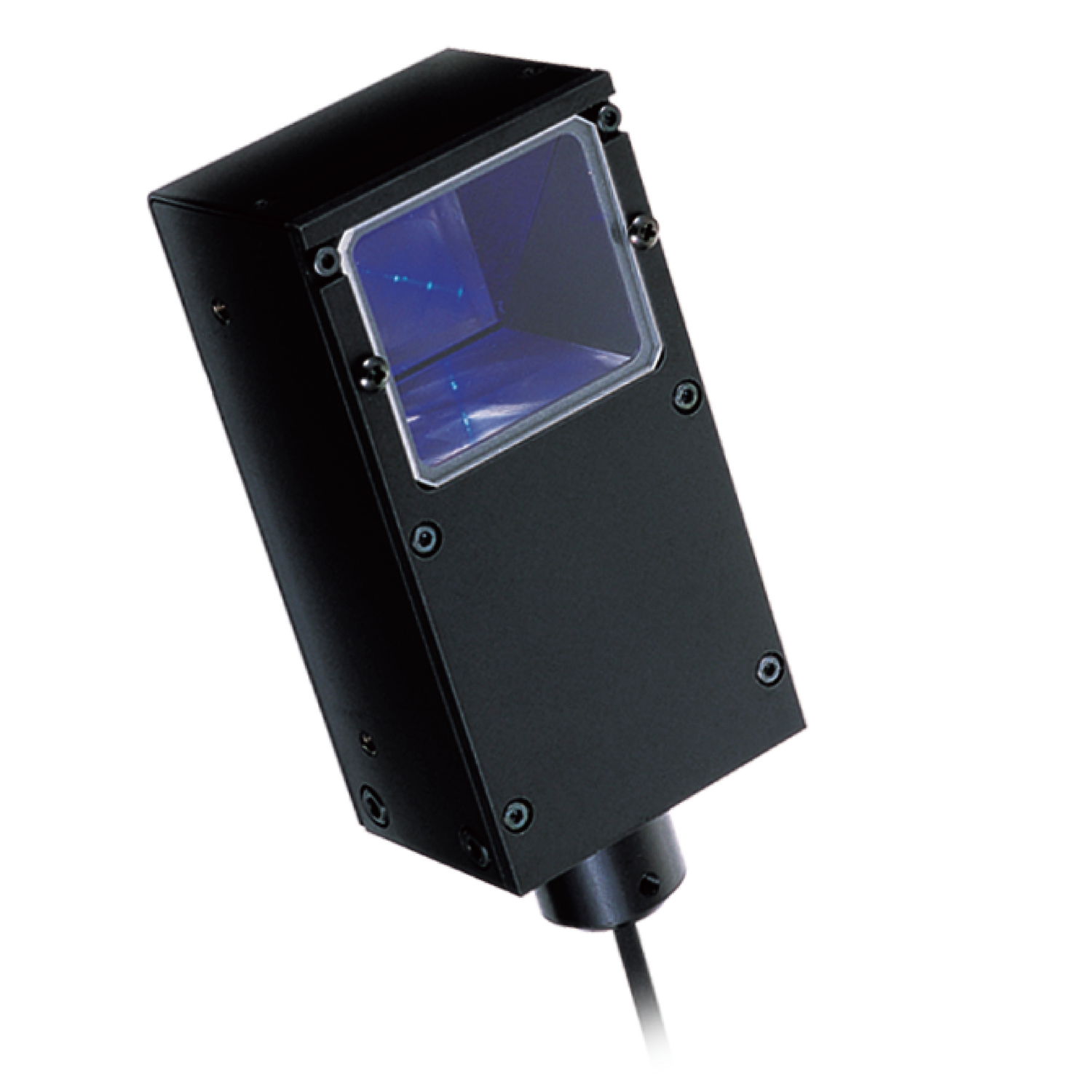

Coaxial lights for collimated backlighting
These coaxial lights provide collimated lighting from behind the workpiece.
This suppresses the wraparound of light and enables precise dimension measuring and appearance inspection.
12V and 24V types available.
Use the KT-MFU collimated backlight unit with the HLV series spot light to increase brightness.
- Illumination Structure
- These Coaxial Light Units radiate collimated light through the use of the unique lighting technology. External photography with high accuracy can be achieved by suppressing the scattering of light.
High Power Strobe Lights PF Series.* Coaxial type.* Peak illuminance achieves 3.7 million lx.* Realizes high-speed and accurate inspection.
* Solves your xenon flash lamp problems.* Freely adjustable flash timing enables strobing within the exposure period of the camera.
Download Pamphlet PDF
Micro Fiber Head (HFS and HFR Serieses) Dedicated Light Sources.
A full color light source that achieves the illumination color perfect for your workpiece.
Download Pamphlet PDF
Note: These lights require the Control Units provided with the output connectors for Spotlights.
The available Control Units vary depending on the input current of lights.
For details, refer to the "Power Supplies" column on the page describing each light model name.
This LED Light Source achieved highest level in the industry with 2 million lx. The light output exceeds that of a 250-W metal halide light source.
Download Pamphlet PDF

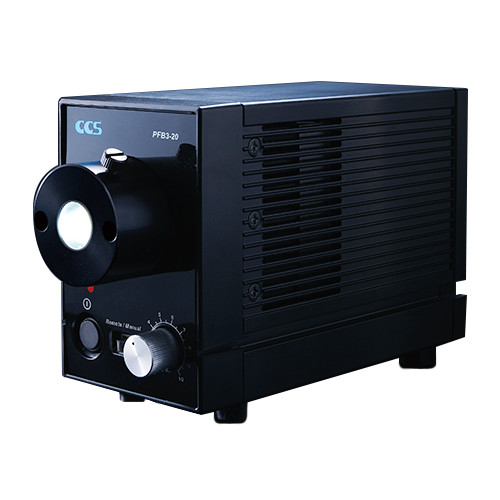

Provides light output that exceeds that of a 100 W halogen light source.
Advantages of replacing halogen light sources are:
1. Power consumption of 18 W greatly reduces running costs.
2. Long lifetime of 25,000 hours* to greatly reduce maintenance man-hours.
3. The compact design saves space.
4. Ambient temperatures around equipment are greatly reduced by the use of LEDs.
* Lifetime depends on application environment.
[Not available in Japan]Highly uniform illumination with a narrow
directivity angle
1 - 12 of 12 items Items per page:

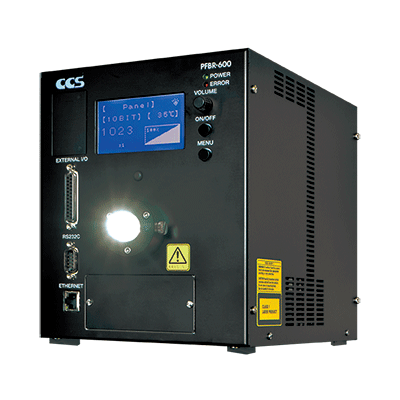

PFBR-600SW2-LL
- Standard Product
Add to Watch List
LFV3-G-27RD
- Standard Product
Add to Watch List
PFBR-600SW2-LLCF
- Standard Product
Add to Watch List
LFV3-G-27SW
- Standard Product
Add to Watch List

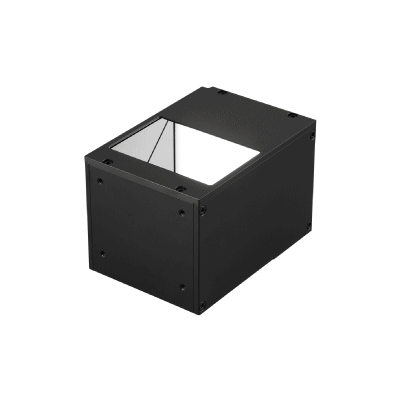

LFV-G-PF-35SW
- Standard Product
Add to Watch List
LFV3-G-27BL
- Standard Product
Add to Watch List

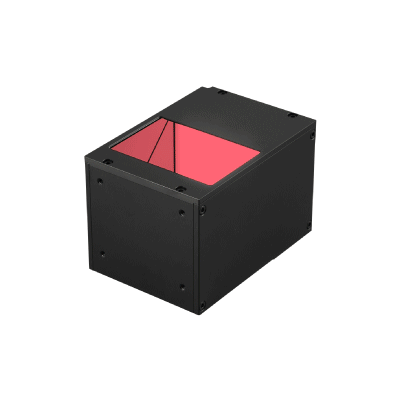

LFV-G-PF-35RD
