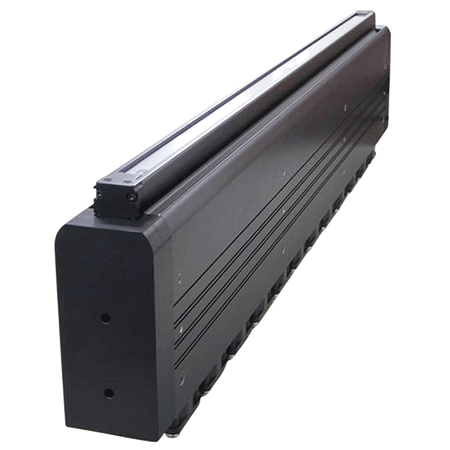

LN-GA-n△-FN

High-Illuminance Line Lights

  • Well-Suited for High-Speed Line Scanning 2.8million lx LED
  • Provides High Output to Easily Replace Metal halide lamp Sources
  • Light emitting surface length up to 3 m for standard products.(* For sizes longer than 3 m, please contact us)
  • Forced air cooling system with fans and unique design reduces exhaust airflow directed to the workpiece
Note
  • "n" in the model name indicates the light emitting surface length (in 100 mm units)
  • “△” in the model name indicates the LED color with one of the following letters: SW (white), RD (red), or BL (blue)
  • Available only in specific regions.Please contact your CCS sales representative for more information

CCSxAItec

Dimensions and specifications

Dimensions

LN-GA_Dimensions

Please check the download document for details of the external dimensions.
Please check specifications for size details.

Specifications

Model name*1 LxWxH (mm) Emitting surface length
(Dimension A)*2
(mm)		 D1 D2 D3 Weight
(kg)		 Number of LED blocks*3

Power consumption
(W)

 Required light cable connection Applicable Control Units
LN-GA-100△-FN 150x50x150 100 See the above diagram. 1.5 4 77 12-pin metal connector,
5-pin temperature sensor connector,
2-pin fan connector		 PSCC-J1A-30048-0401
LN-GA-200△-FN 250x50x150 200 25 1 x 200 = 200 2 x M3 x 6 2.3 8 154 12-pin metal connector x 2pcs.,
5-pin temperature sensor connector,
2-pin fan connector
LN-GA-300△-FN 350x50x150 300 75 1 x 200 = 200 2 x M3 x 6 3.2 12 231
LN-GA-400△-FN 450x50x150 400 25 2 x 200 = 400 3 x M3 x 6 4 16 308 37-pin metal connector x 2pcs. PSCC-J1A-60048-0401
LN-GA-500△-FN 550x50x150 500 75 2 x 200 = 400 3 x M3 x 6 4.8 20 384
LN-GA-600△-FN 650x50x150 600 25 3 x 200 = 600 4 x M3 x 6 5.7 24 461
LN-GA-700△-FN 750x50x150 700 75 3 x 200 = 600 4 x M3 x 6 6.5 28 538 PSCC-J1A-10C48-0401
LN-GA-800△-FN 850x50x150 800 25 4 x 200 = 800 5 x M3 x 6 7.4 32 615 37-pin metal connector x 3pcs.
LN-GA-900△-FN 950x50x150 900 75 4 x 200 = 800 5 x M3 x 6 8.2 36 692
LN-GA-1000△-FN 1,050x50x150 1,000 25 5 x 200 = 1000 6 x M3 x 6 9.1 40 768
Model name*1 LxWxH (mm) Emitting surface length
(Dimension A)*2
(mm)		 D1 D2 D3 Weight
(kg)		 Number of LED blocks*3

Power consumption
(W)

 Light cable connection Applicable Control Units
LN-GA-1100△-FN 1,150x50x150 1,100 75 5 x 200 = 1000 6 x M3 x 6 9.9 44 845 37-pin metal connector x 3pcs. PSCC-J1A-15C48-0401
LN-GA-1200△-FN 1,250x50x150 1,200 25 6 x 200 = 1200 7 x M3 x 6 10.7 48 922 37-pin metal connector x 4pcs.
LN-GA-1300△-FN 1,350x50x150 1,300 75 6 x 200 = 1200 7 x M3 x 6 11.6 52 999
LN-GA-1400△-FN 1,450x50x150 1,400 25 7 x 200 = 1400 8 x M3 x 6 12.4 56 1,076
LN-GA-1500△-FN 1,550x50x150 1,500 75 7 x 200 = 1400 8 x M3 x 6 13.3 60 1,152
LN-GA-1600△-FN 1,650x50x150 1,600 25 8 x 200 = 1600 9 x M3 x 6 14.1 64 1,229 37-pin metal connector x 5pcs. PSCC-J1A-10C48-0401 x 2
LN-GA-1700△-FN 1,750x50x150 1,700 75 8 x 200 = 1600 9 x M3 x 6 15.0 68 1,306
LN-GA-1800△-FN 1,850x50x150 1,800 25 9 x 200 = 1800 10 x M3 x 6 15.8 72 1,383
LN-GA-1900△-FN 1,950x50x150 1,900 75 9 x 200 = 1800 10 x M3 x 6 16.6 76 1,460 37-pin metal connector x 6pcs.
LN-GA-2000△-FN 2,050x50x150 2,000 25 10 x 200 = 2000 11 x M3 x 6 17.5 80 1,536
Model name*1 LxWxH (mm) Emitting surface length
(Dimension A)*2
(mm)		 D1 D2 D3 Weight
(kg)		 Number of LED blocks*3

Power consumption
(W)

 Light cable connection Applicable Control Units
LN-GA-2100△-FN 2,100x50x150 2,100 75 10 x 200 = 2000 11 x M3 x 6 18.3 84 1,613 37-pin metal connector x 6pcs. PSCC-J1A-15C48-0401 x 2
LN-GA-2200△-FN 2,200x50x150 2,200 25 11 x 200 = 2200 12 x M3 x 6 19.2 88 1,690
LN-GA-2300△-FN 2,300x50x150 2,300 75 11 x 200 = 2200 12 x M3 x 6 20.0 92 1,767 37-pin metal connector x 7pcs.
LN-GA-2400△-FN 2,400x50x150 2,400 25 12 x 200 = 2400 13 x M3 x 6 20.9 96 1,844
LN-GA-2500△-FN 2,500x50x150 2,500 75 12 x 200 = 2400 13 x M3 x 6 21.7 100 1,920
LN-GA-2600△-FN 2,600x50x150 2,600 25 13 x 200 = 2600 14 x M3 x 6 22.5 104 1,997
LN-GA-2700△-FN 2,700x50x150 2,700 75 13 x 200 = 2600 14 x M3 x 6 23.4 108 2,074 37-pin metal connector x 8pcs.
LN-GA-2800△-FN 2,800x50x150 2,800 25 14 x 200 = 2800 15 x M3 x 6 24.2 112 2,151
LN-GA-2900△-FN 2,900x50x150 2,900 75 14 x 200 = 2800 15 x M3 x 6 25.1 116 2,228
LN-GA-3000△-FN 3,000x50x150 3,000 25 15 x 200 = 3000 16 x M3 x 6 25.9 120 2,304
  • *1 "△" mark in the model name indicates the LED color with one of the following letters: SW (white), RD (red), or BL (blue).
  • *2 The available emitting surface lengths are in units of 100 mm.
  • *3 An LED block is a batch of LEDs implemented on the same circuit. This is also the minimum scope of settings for light intensity and alarm on the dedicated power supply, PSCC-J1A series. Customers can selectively replace the Implementation Board including the LED blocks to repair the Light Unit by themselves. If that is required,」⇒「To repair the Light Unit , customers can selectively replace the Implementation Board including the LED blocks.　If this replacement is required, please contact your local sales representative.
Notes:
  • These Light Units conform to the safety standard EN 62471.
  • Input volutage : DC48 V

Connection image

Model name Light cable connection Extension cables Control Units
LN-GA-100△-FN 2-pin fan connector
5-pin temperature sensor connector
12-pin metal connector
  • FCB-A-□-SM2 FCB-A-□-SM2
  • FCB-A-□-SM5 FCB-A-□-SM5
  • FCB-A-□-ME12 FCB-A-□-ME12
 PSCC-J1A-30048-0401
PSCC-J1A-30048-0401
LN-GA-200△-FN
LN-GA-300△-FN		 2-pin fan connector
5-pin temperature sensor connector
12-pin metal connector×2
  • FCB-A-□-SM2 FCB-A-□-SM2
  • FCB-A-□-SM5 FCB-A-□-SM5
  • FCB-A-□-ME12×2 FCB-A-□-ME12×2
LN-GA-400△-FN
LN-GA-500△-FN
LN-GA-600△-FN
 37-pin metal connector×2
  • FCB-A-□-ME37×2 FCB-A-□-ME37
 PSCC-J1A-60048-0401
PSCC-J1A-60048-0401
LN-GA-700△-FN PSCC-J1A-10C48-0401
PSCC-J1A-10C48-0401
LN-GA-800△-FN
LN-GA-900△-FN
LN-GA-1000△-FN		 37-pin metal connector×3
  • FCB-A-□-ME37×3 FCB-A-□-ME37×3
LN-GA-1100△-FN 37-pin metal connector×3
  • FCB-A-□-ME37×3 FCB-A-□-ME37×3
 PSCC-J1A-15C48-0401
PSCC-J1A-15C48-0401
LN-GA-1200△-FN
LN-GA-1300△-FN
LN-GA-1400△-FN
LN-GA-1500△-FN
 37-pin metal connector x 4
  • FCB-A-□-ME37×4 FCB-A-□-ME37×3
LN-GA-1600△-FN
LN-GA-1700△-FN
LN-GA-1800△-FN
 37-pin metal connector x 5
  • FCB-A-□-ME37×5 FCB-A-□-ME37×3
 PSCC-J1A-10C48-0401 x 2
PSCC-J1A-10C48-0401
LN-GA-1900△-FN
LN-GA-2000△-FN		 37-pin metal connector x 6
  • FCB-A-□-ME37×6 FCB-A-□-ME37×3
LN-GA-2100△-FN
LN-GA-2200△-FN
 37-pin metal connector x 6
  • FCB-A-□-ME37×6 FCB-A-□-ME37×3
 PSCC-J1A-15C48-0401 x 2
PSCC-J1A-15C48-0401
LN-GA-2300△-FN
LN-GA-2400△-FN
LN-GA-2500△-FN
LN-GA-2600△-FN
 37-pin metal connector x 7
  • FCB-A-□-ME37×7 FCB-A-□-ME37×3
LN-GA-2700△-FN
LN-GA-2800△-FN
LN-GA-2900△-FN
LN-GA-3000△-FN
 37-pin metal connector x 8
  • FCB-A-□-ME37×8 FCB-A-□-ME37×3
