PF-A16048-4

Multi-functional Control Unit for High Power Strobe LED Light Units.
Brightness can be adjusted through output voltage control.
Parameter registration for individual inspections is possible.

Add to Watch List

Dimensions	W 150 mm X D 320 mm X H 116 mm
Applicable Light Unit (output ratings)	High Power Strobe Light Units from CCS
Number of channels	4 channels
Lighting method	Strobe lighting
Drive method	Constant lighting
Intensity control method	Variable-voltage control, Strobe time control
Input voltage	100 to 240 VAC (+10% -15%)
Frequency	50/60 Hz
Power consumption	140 VA typ.
Output voltage	High voltage range: 33 to 48 VDC Low voltage range: 12 to 48 VDC
Output current	Total for 4 channels: 172.8 A (21.6A/connector)
Inrush current	17 A (at 100 VAC), 40.8 A (at 240 VAC) from a cold start
Ground leakage current	3.5 mA max. (264 VAC, 60 Hz, with no load)
Insulation withstand voltage (input-FG)	1500 VAC for one minute, Cutoff current: 10 mA 500 VDC, 20 MΩ min.
Material	Surface material (Steel sheet, Cover thickness: 1.6 mm, Chassis thickness: 1.0 mm, Black (half matte))
Operating temperature and humidity	Temperature: 0 to 40℃, Humidity: 20 to 85%RH (No condensation)
Storage temperature and humidity	Temperature: -20 to 60℃, Humidity: 20 to 85%RH (No condensation)
Cooling method	Forced cooling
Conformed standards	CE, UKCA、RoHS
Weight	3,300 g max.
Accessories	Instruction Guide, 2-m-long 3-prong AC power cord with ground terminal
Program	【Sample Program】 Sample programs are available. See the Options tab.

Product Details Dimensions (mm) Options Cables Downloads

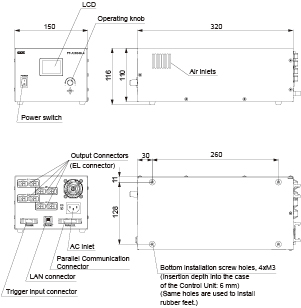

Dimensions (mm)
