Any angle can be created with CCS's unique flexible circuit boards.
The required irradiance is ensured by radiating direct light towards the center of the workpiece.
- Illumination Structure
- A flexible circuit board is bent into the desired shape, and LEDs are mounted at a high density on it. Radiance is achieved by focusing light at the center of the workpiece.
[Not available in Japan]
"FALUX sensing"* Included in HPRS Series. enables monitoring of brightness and feedback control.
*Included in HPRS Series only.
Achieves high-uniformity over a flexible LWD range by using a unique illuminating mechanism.
Ring lights for long-distance and wide-area irradiation.
Suitable for various applications such as large workpieces, long-distance illumination, and robot picking inspections.
- Available in 4 wavelengths: red, white, blue, and infrared.
Wide, medium and narrow light directivity characteristics are available. - Lightweight and compact size that can be mounted on robot arms and inspection equipment.
- Custom orders are also possible such as different wavelengths and overdrive.
- HLDL3 Series bar lights for wide-area and long-distance illumination are also available.
IS-mini series is the easy support tool for your research.The light-emitting surfaces measures 152 x 152 mm.High power type.
IS-mini series is the easy support tool for your research.
The light-emitting surfaces measures 152 x 152 mm.
Any angle can be created through the use of flexible circuit boards. The features of the workpiece can be clearly extracted with direct light from a low angle towards the center of the workpiece.
- Illumination Structure
- Desired angle can be created through the use of flexible circuit boards. Direct light is radiated from a low angle towards the center of the workpiece.
LEDs are mounted perpendicularly on a line-shaped board and arranged in a ring facing horizontally. The thin design has a thickness of only 10 mm.
These Ring Lights are used extremely close to the workpiece.
- Illumination Structure
- The LEDs are arranged in a ring facing horizontally. The Light Units can be placed close to the workpiece.
These waterproof Ring Lights ensure the brightness with condensing lenses. IP67 compliance. Adopting an M12 connector.
Download Pamphlet PDF
- Illumination Structure
- Convergent waterproof Ring Light that ensures brightness with a convergent lens.
These Ring Lights have "easy to use", "bright", and "uniform" characteristics. The product lineup includes abundant size variations, full color (RGB) models, and satisfying accessories such as the Light Joint Brackets.
Download Pamphlet PDF
- Illumination Structure
- Through the surface-mounted LEDs and specially finished diffusion plate, we achieved high output illumination of uniform diffused light.
LEDs are embedded around a light-guiding diffusion plate. Uniform light is radiated from a flat emitting surface. The product lineup includes the LFR-100K and LFR-130K Light Units, in which light is radiated from an emitting surface arranged at an angle.
- Illumination Structure
- LEDs are embedded around a circular light-guiding diffusion plate. Uniform diffused light is radiated from a flat light-emitting surface.
LEDs are embedded around a light-guiding diffusion plate. Uniform light is radiated towards the center from a light-emitting surface arranged at an angle to the workpiece.
- Illumination Structure
- LEDs are embedded around a circular light-guiding diffusion plate. Uniform diffused light is radiated from a light-emitting surface arranged at an angle to the workpiece.
At a low angle, these Ring Lights can be used to highlight and image the characters and scratches in a dark field.
At a high angle, these Ring Lights can be used to uniformly image the entire workpiece in a bright field.
CCS can offer various lighting methods according to the applications.
- Illumination Structure
- The light from perpendicularly arranged LEDs is transmitted through a light-guiding plate to illuminate the center of the workpiece with uniform diffused light from a low angle.

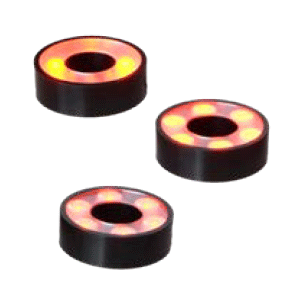

HLDR3-100RD-DF-N / HLDR3-100RD-DF-M / HLDR3-100RD-DF-W
- Standard Product
Add to Watch List
.jpg)
LDR2-32RD2
- Standard Product
Add to Watch List

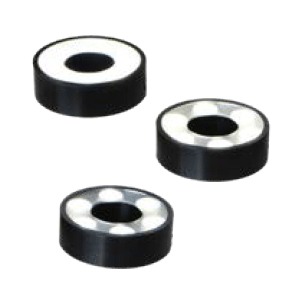

HLDR3-100SW-DF-N / HLDR3-100SW-DF-M / HLDR3-100SW-DF-W
- Standard Product
Add to Watch List
LDR2-32SW2
- Standard Product
Add to Watch List
HLDR3-100BL-DF-N / HLDR3-100BL-DF-M / HLDR3-100BL-DF-W
- Standard Product
Add to Watch List
LDR2-32BL2
- Standard Product
Add to Watch List
