Diffusion Plates [for HLDL3 Series]

These Diffusion Plates are used with the HLDL3 series Bar Lights.
Two types of diffusers are available. For higher uniformity, use the -HU.

Click to view Lineup

Diffusion Plates [for LB Series]

Diffusion plates for the LB Series.
This diffusion plate has a higher transmittance than the one that is built into the standard model light units at factory shipment.
You can replace the diffusion plate to adjust the light characteristics.
This is the same diffusion plate that is built into the high power model light units at factory shipment.

Click to view Lineup

Diffusion Plates [for LDR-PF Series]

These Diffusion Plates are used with the Ring Lights of the PF-series.
Note: An adapter is needed for attachment to the Light Unit.

Diffusion Plates [for LDL-PF Series]

Machine Vision Applications:LED Light Units:LED lighting by CCS is the key to success for machine vision applications,CCS is the leading company of LED industrial inspection lighting

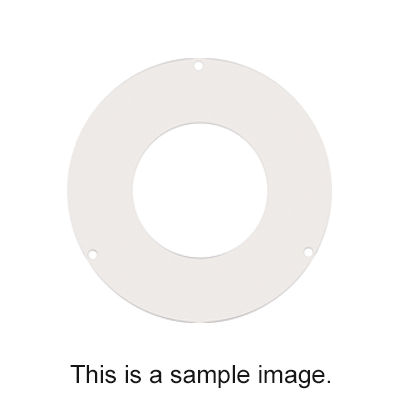

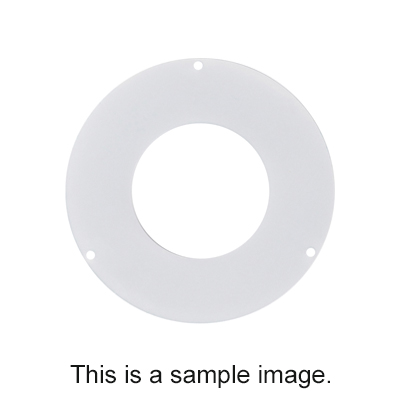

Diffusion Plates [for Ring Lights]

These Diffusion Plates are used with the LDR, LDR2, or SQR-56 Ring Lights.
Note: If you are using one of these Diffusion Plates with the LDR2-32, LDR2-42, LDR2-50, LDR2-90, or LDR2-120 Light Unit, you will need a separate Adapter for attachment.

Diffusion Plates [for Low-angle Ring Lights]

These Diffusers are used with the LDR2-LA-series Low-angle Ring Lights.

Diffusion Plates [for Bar Lights]

These Diffusion Plates are used with the LDL2-series Bar Lights.

Diffusion Plates [for Coaxial Lights]

These Diffusion Plates are used with the LFV3 or LFV-PF-series Coaxial Lights.
Two different transmission ratio diffusion plates are provided:

Light-color diffusion plate (Transmission: High, Standard plate)
The finish on both sides of the diffusion plate is the same. You can attach the plate with either side facing the LED.

Deep-color diffusion plate (Transmission: Low, The end of model name: -UF)
The diffusion plate has a front side and a back side. Install it with the glossy, smooth side facing the LED base plate.
