LDF-TP31X31W31W65RLS

  • Standard Product

LDF-TP31X31W31W65RLS Reference Light Source for Camera Image Sensor
Equipped with LEDs of 4 different color temperatures (3,100 K, 4,000 K, 5,100 K, 6,500 K),
4-color temperature switching type that can switch between four different color temperatures.
Measures W 59 mm x D 67 mm x H 43.5 mm.

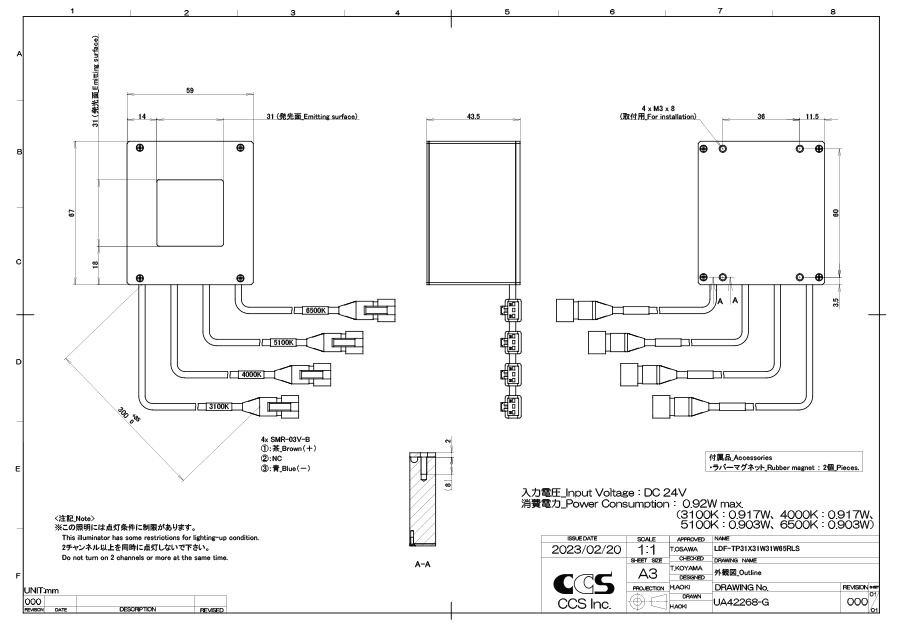

Dimensions (mm)

* Click to enlarge image.

Power Supplies

Control Unit Guide(PDF)

  • CN-1024-4-EPOE

  • PD3-5024-4-SI(A)

  • PD3-5024-4-ET(A)

  • PD3-5024-4-EI(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-PI(A)

Downloads

PDF Drawing DXF Drawing Pamphlet 3D-CAD
