PD4-12024-2-E

Standard Product

The PD4-12024-2-E digital control unit can connect 24V input LED lighting with a total power consumption of up to 120W.
This control unit operates on an AC100-240V. External control protocol is Ethernet communication and PLCCOM communication.
Measures 190mm x 95mm x 106mm (width x depth x height).

Add to Watch List

Dimensions	W 190 mm x D 95 mm x H 106 mm
Applicable Light Unit (output ratings)	24V DC Light Units, total for all connectors: 120 W max. (ELR-02V: 120 W max. per connector, SMP-03V-BC: 60 W max. per connector)
Number of channels	2 channels
Lighting method	Strobe lighting, continuous lighting (no overdrive)
Drive method	Constant lighting
Intensity control method	PWM control
PWM frequency	125 kHz
Input voltage	100 to 240 VAC (+10% -10%)
Frequency	50/60 Hz
Power consumption	168 VA
Output voltage	24 VDC
Output current	SM connector: 60 W / channel EL connector: 120 W / channel Channel Total: 120 W
Inrush current	14 A (at 100 VAC), 34 A (at 240 VAC) from a cold start *When selecting a circuit breaker, refer to this value and select the product that has the trip characteristics suitable for use with switched mode power supplies. For information on the applicable trip characteristics, refer to the switched mode power supply manufacturer websites, etc.
External control protocol	Ethernet comm., PLCCOM comm.
Error detection display	Panel surface Error lamp (red) and LCD screen display
Error detection output	(1) Reflection to error status (Ethernet/USB) (2) UDP/IP packet transmission (single-shot/continuous transmission selectable) (Ethernet)
Over current protection	Operates at 109% or more of the output current (per channel) Recovery by power-on, panel setting knob, or error cancellation command via Ethernet/USB communication
Overvoltage category	Category II
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with nocondensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with nocondensation)
Cooling method	Natural air-cooling
Output connector	ELR-02V x 2, SMP-03V-BC x 2 SM/EL connectors on the same channel have the same intensity setting
External control connector	[Trigger input/output]Terminal block connector SL 3.50/10/180F 3.2SN OR BX (Weidmuller) 10 poles1 to 4: input, 5: input common, 6 to 9: output, 10: output common[Ethernet]RJ-45[USB]Mini-B
Trigger	Logic switching (High-Low switching), pin assignment change, filter time setting, emission delay time setting
Conformed standards	[Compatible standards] CE, UKCA [Environmental regulations] RoHS, TSCA PBT
Weight	1.5 kg max.
Material, coating, and surface finish	Steel sheet, cover thickness: 1.6 mm, chassis thickness: 1.0 mm, black (leather satin)
Accessories	Hardware manual x 1 Power Terminal Block Cover x 1 M4 screws for the cover x 2 2-m-long 3-prong AC power cable with ground terminal^1 x 1 Trigger Terminal Block^2 x 1 1 Model names of products that do not include the AC power cable as an accessory are suffixed with "-NC". E.g. PD4-6024-4-E-NC Model name of AC power cable: ACC-JIS-125-7-M4-2 (For Japan domestic) 2 Power cables are not included, so please prepare them separately. Applicable power wires: AWG 26 to 16 (0.13 to 1.31 mm²), length: within 3 m, bare end: 8 mm (Ferrule can be used)
Notes	Equipped with ON/OFF physical switch Supports keep-alive function
Program	【Sample Program】 Sample programs are available. See the Options tab.

Product Details Dimensions (mm) Options Cables Downloads

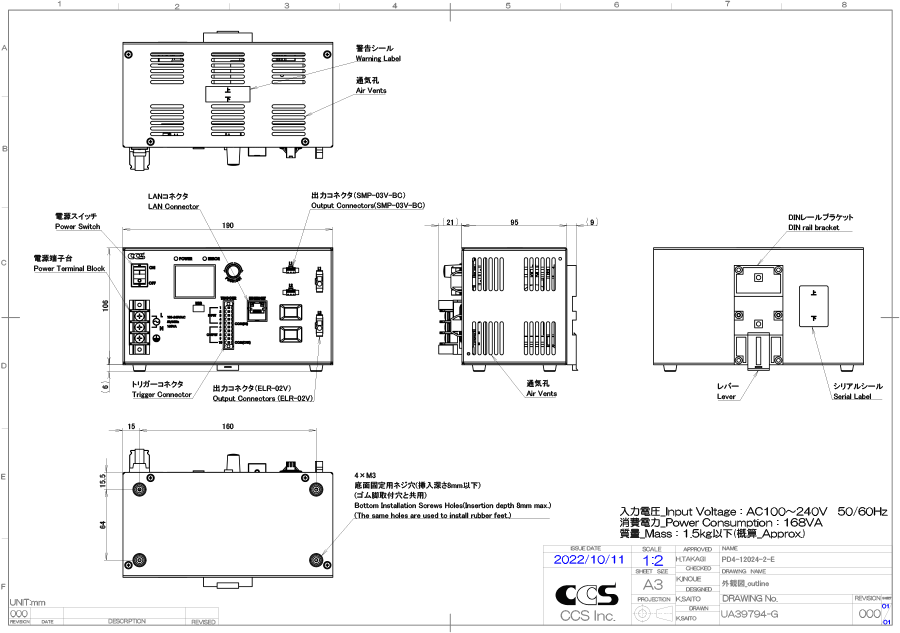

Dimensions (mm)

* Click to enlarge image.

Options

電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)
電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

Cables

ACC-JIS-125-7-M4-2
EXCB2-FX40-3

Downloads

General Catalog	PDF Drawing	DXF Drawing	Pamphlet	Hardware Manual	Operation Manual	Warranty & Environmental Info	3D-CAD	Application.
