OLF-LT-92RD
OLF-LT Series [Organic LED Lights]
Unprecedented thin design! Patent Filed
- Achieves the uniformity and brightness required for machine vision applications
- Expands the possibilities for lighting installation with a 3 mm thin design
- Lightweight, and low heat next-generation light source
- Notifies the user regarding recommended lighting replacement periods by connecting to a dedicated controller

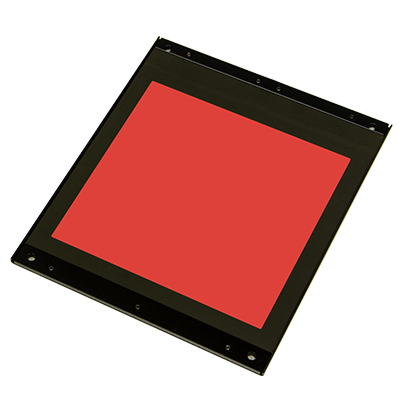

This Light Unit emits red light and measures 114.6 x 140 x 3 mm (width x depth x height).
The light-emitting surface measures 92 x 92 mm.
![Warranty for this product are not the same as CCS standard lighting. Contact our local sales o ice for details.<br />](https://www.ccs-grp.com/shared/images/products/uploads/common/icn_warranty_en.png)

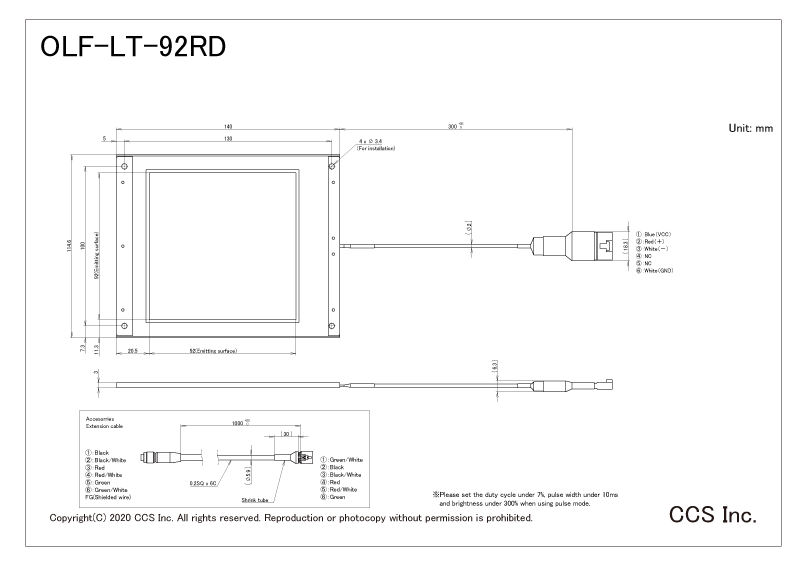

Dimensions (mm)
Dedicated Controller
Dedicated controller with predictive maintenance function (lifetime prediction)
Automatically recognizes connected lights and accumulates data on light usage *Use OC-G-5646-2-ET when using OLF-LT-92 model in overdrive mode.
OC-0736-1-ET
- 24 VDC Input
- Equipped with 1 channel
- Regular Emission, ON/OFF Emission, Strobe Emission (With Overdrive Mode)
- Configuration via Ethernet or buttons on the panel
- Strobe Light Emission Time Setting: 100 µs to 10 ms (100 µs units)
- Light Emission Delay Time Setting: 2 µs to 10 ms (100 µs units)
- Weight: 300g max.
OC-G-5646-2-ET
- 24 VDC Input
- Equipped with 2 channels
- Regular Emission, ON/OFF Emission, Strobe Emission (With Overdrive Mode)
- Configuration via Ethernet
- Strobe Light Emission Time Setting: 10 µs to 10 ms (1 µs units)
- Light Emission Delay Time Setting: 2 µs to 10 ms (1 µs units)
- Weight: 550g max.
Notifies the user regarding recommended lighting replacement period*
Three stages of lifetime status
100~30% | Good (no problems) |
---|---|
20% | Lifetime warning (replacement period approaching) |
0% | Lifetime expired (replacement recommended) |
*Settings can be verified using a web browser while the lights are connected to the controller and the controller is connected to a PC via LAN connection.
Regarding the recommended lighting replacement period
Expected Service Life (Continuous Lighting, Dimmer 100%, Ambient Temperature 40°C, Design Value Until Irradiation Amount Drops to 50%) * Not a guaranteed value. When the expected service life is at 20%, the "Lifetime warning" notice is displayed, and when at 0%, the "Lifetime expired" notice is displayed. *See the specifications below for the expected service life of each light.
Dedicated Cable
Optional extension cable
Model name | OLCB-2 | OLCB-3 | OLCB-5 |
---|---|---|---|
Cable length | 2 m | 3 m | 5 m |
Weight | 127 g max. | 182 g max. | 292 g max. |
OLCB external dimensions diagram(mm)
*A 1 m cable is supplied with this light.
