OLF-LT-40X30SW

OLF-LT Series [Organic LED Lights]
Unprecedented thin design!　Patent Filed

  • Achieves the uniformity and brightness required for machine vision applications
  • Expands the possibilities for lighting installation with a 3 mm thin design
  • Lightweight, and low heat next-generation light source
  • Notifies the user regarding recommended lighting replacement periods by connecting to a dedicated controller

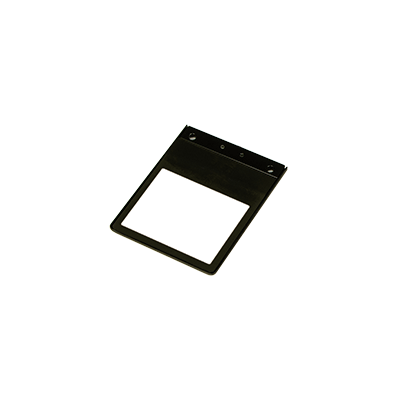

This Light Unit emits white light and measures 52.6 x 65.3 x 3 mm (width x depth x height).
The light-emitting surface measures 40 x 30 mm.
Warranty for this product are not the same as CCS standard lighting. Contact our local sales o ice for details.<br />

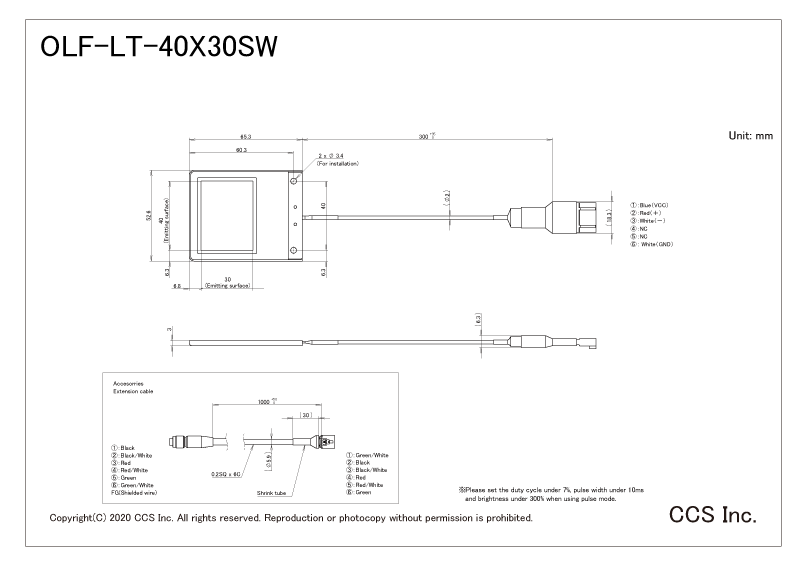

Dimensions (mm)

* Click to enlarge image.

Dedicated Controller

Dedicated controller with predictive maintenance function (lifetime prediction)

Automatically recognizes connected lights and accumulates data on light usage
*Use OC-G-5646-2-ET when using OLF-LT-92 model in overdrive mode.

OC-0736-1-ET

OC-0736-1-ET

  • 24 VDC Input
  • Equipped with 1 channel
  • Regular Emission, ON/OFF Emission, Strobe Emission (With Overdrive Mode)
  • Configuration via Ethernet or buttons on the panel
  • Strobe Light Emission Time Setting: 100 µs to 10 ms (100 µs units)
  • Light Emission Delay Time Setting: 2 µs to 10 ms (100 µs units)
  • Weight: 300g max.

OC-0736-1-ET page

OC-G-5646-2-ET

OC-G-5646-2-ET

  • This product is a controller made by Gardasoft.
  • 24 VDC Input
  • Equipped with 2 channels
  • Regular Emission, ON/OFF Emission, Strobe Emission (With Overdrive Mode)
  • Configuration via Ethernet
  • Strobe Light Emission Time Setting: 10 µs to 10 ms (1 µs units)
  • Light Emission Delay Time Setting: 2 µs to 10 ms (1 µs units)
  • Weight: 550g max.

OC-G-5646-2-ET page

Notifies the user regarding recommended lighting replacement period*

Three stages of lifetime status
100～30% Good (no problems)
20% Lifetime warning (replacement period approaching)
0% Lifetime expired (replacement recommended)

*Settings can be verified using a web browser while the lights are connected to the controller and the controller is connected to a PC via LAN connection.

Regarding the recommended lighting replacement period

Expected Service Life (Continuous Lighting, Dimmer 100%, Ambient Temperature 40°C, Design Value Until Irradiation Amount Drops to 50%) * Not a guaranteed value. When the expected service life is at 20%, the "Lifetime warning" notice is displayed, and when at 0%, the "Lifetime expired" notice is displayed. *See the specifications below for the expected service life of each light.

Dedicated Cable

Optional extension cable

Model name OLCB-2 OLCB-3 OLCB-5
Cable length 2 m 3 m 5 m
Weight 127 g max. 182 g max. 292 g max.

OLCB-2 page

OLCB-3 page

OLCB-5 page

OLCB external dimensions diagram(mm)

OLCB external dimensions diagram(mm

*A 1 m cable is supplied with this light.
