PSB4-60024-2-PEI

This Constant-Voltage Analog Control Unit operates on a 100 to 240 VAC input and measures 179 x 249 x 114.5 mm (width x depth x height).
Ethernet and parallel communications are available.

Add to Watch List

Dimensions	W 179 mm x D 249 mm x H 114.5 mm
Applicable Light Unit (output ratings)	Metal connector (L1-1, L1-2/L2-1,L2-2): 24 V, 300 W (1 connector 300 W or less) EL connector (L1-3, L1-4/L2-3,L2-4): 24 V, 300 W (1 connector 150 W or less) All 1 connectors total : 300 W or less (same as L2 connectors)
Number of channels	2 channels
Lighting method	Continuous lighting
Drive method	Constant lighting
Intensity control method	Variable-voltage control
Frequency	50/60 Hz
Input power	100 to 240 VAC (+10% - 15%)
Power consumption	765 VA typ.
Output current	12.5 A/channel, Total for 2 channels:25 A
Inrush current	55 A / 95 A (promary/secondary　values, at 100 VAC), 132 A / 132 A promary/secondary　values, (at 240 VAC) from a cold start
Ground leakage current	3.5 mA max. (264 VAC, 60 Hz, with no load)
Insulation withstand voltage (input-FG)	1,500 VAC for one minute, Cutoff current: 20 mA 500 VDC, 20 MΩ min.
Material	Steel sheet, Cover thickness: 1.0 mm, Chassis thickness: 1.6 mm, N3 (leather tone)
Operating temperature and humidity	Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) Altitude: 2000 m max.
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with nocondensation)
Cooling method	Forced cooling
Output connector	SRCN2A16-7S x 4, ELR-02V x 4
Conformed standards	CE, UKCA、RoHS
Weight	4100 g max.
Accessories	Instruction Guide, 2-m-long 3-prong AC power cord with ground terminal
Program	【Sample Program】 Sample programs are available. See the Options tab.

Product Details Dimensions (mm) Options Cables Downloads

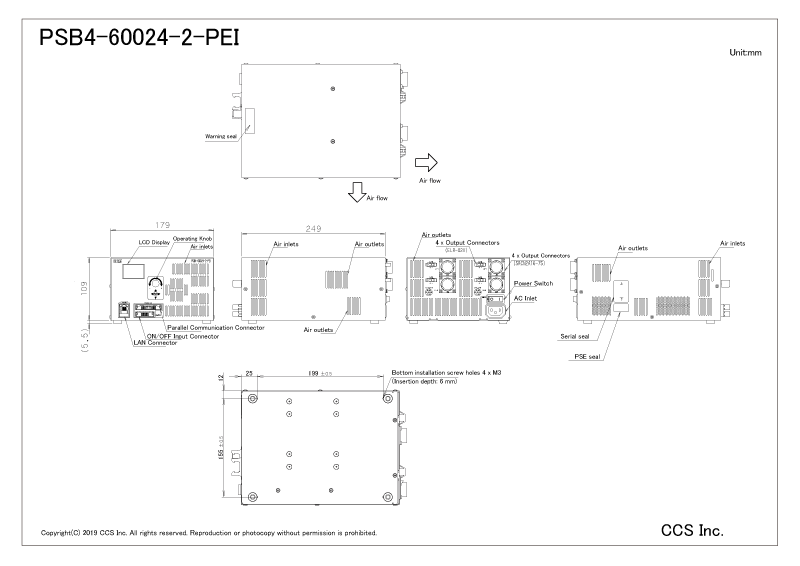

Dimensions (mm)

* Click to enlarge image.

Options

シーシーエス電源用サンプルプログラム Sample Program for CCS Controllers
電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)
電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

Cables

EXCB2-M20-3
EXCB2-M10-3
EXCB2-M10M20-3

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	3D-CAD
