PR-LFV3-30X60

Standard Product

Protects emitting surface of the Light Units.
Snap-in easy installation without using screws.
For the PR-LFV3 series.
Note: It is not intended to protect against dust or water.

Add to Watch List

Dimensions	D 68.0 mm x H 2.0 mm x W 40.0 mm (the same as the width of the Light Unit)
Heat resistant temperature	80 ℃
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with nocondensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with nocondensation)
Accessories	Operation Guide
Caution	Heat may cause deformation or discoloring depending on the use environment. Periodically inspect the accessories to maintain the essential effect of them. Be aware that installing a protective plate may reduce image resolution.

Product Details Dimensions (mm) Applicable products Downloads

Dimensions (mm)

Applicable products

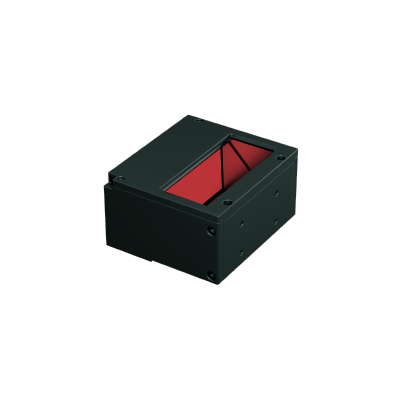

LFV3-G-30X60RD

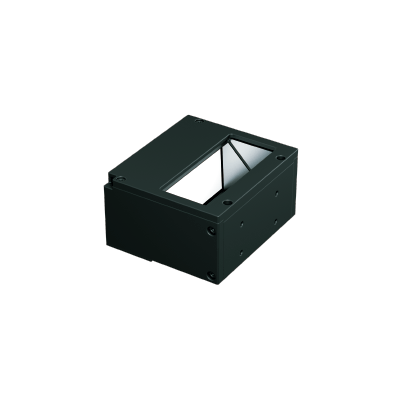

LFV3-G-30X60SW

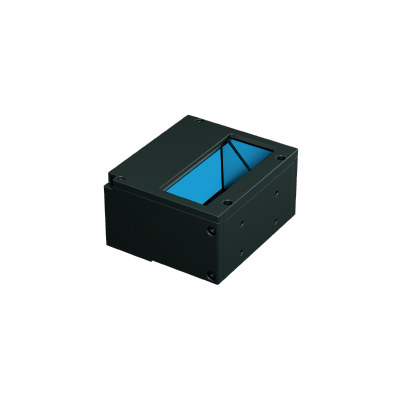

LFV3-G-30X60BL

Downloads

General Catalog	PDF Drawing	DXF Drawing
