HPR2-250FC-DV04M12-5

HPR2-250FC-DV04M12-5.
Segmented Ring Light Unit.
Has a very diffused output and comes with four independently controllable quadrants.
Outer diameter266 mm, Inner diameter210mm, Height 26.4 mm.
Emits RGB (Red, Green and Blue) lights.

Add to Watch List

LED Color	RGB (Red, Green, Blue)
Peak wavelength	RED : 622nm typ.,GREEN : 525nm typ.,BLUE : 470nm typ.
Dimensions	Outer diameter266 mm, Inner diameter210mm, Height 26.4 mm
Input voltage	24 VDC
Power consumption	24 W max.
Polarity & signal	1:(+), 2: (-), 3: (-), 4: (-), 5: NC
Cable length	1,000 mm
Operating temperature and humidity	Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60℃, Humidity: 20% to 85%RH (with no condensation)
Input connector	SAC-5P-M12MS
Conformed standards	CE, RoHS

Product Details Dimensions (mm) Downloads

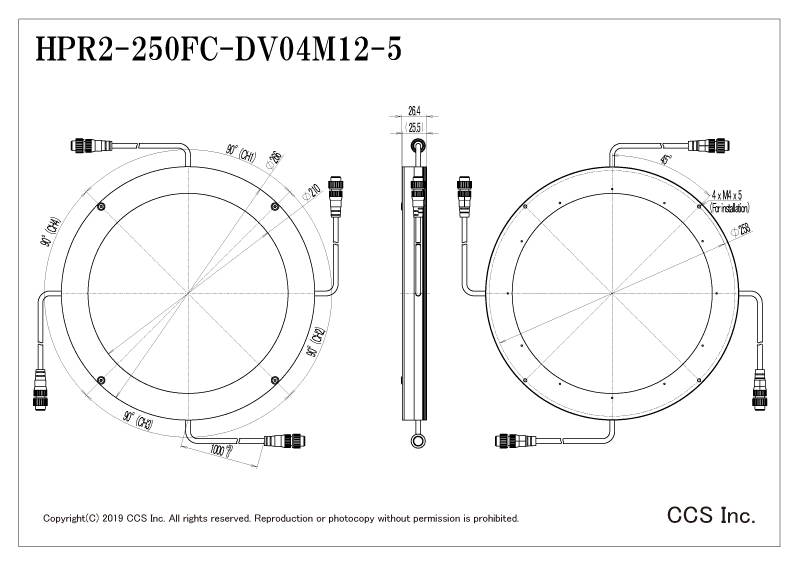

Dimensions (mm)

Downloads

General Catalog	PDF Drawing
