HPR2-50FC-DV04M12-5

HPR2-50FC-DV04M12-5.
Segmented Ring Light Unit.
Has a very diffused output and comes with four independently controllable quadrants.
Outer diameter of 50 mm, an inner diameter of 18 mm, and a height of 18 mm.
Emits RGB (Red, Green and Blue) lights.

Add to Watch List

LED Color	RGB (Red, Green, Blue)
Peak wavelength	RED : 622nm typ.,GREEN : 525nm typ.,BLUE : 470nm typ.
Dimensions	Outer diameter 50 mm, Inner diameter 18 mm, Height 18 mm
Input voltage	24 VDC
Power consumption	3.7 W max.
Polarity & signal	1:(+), 2: (-), 3: (-), 4: (-), 5: NC
Cable length	1,000 mm
Operating temperature and humidity	Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60℃, Humidity: 20% to 85%RH (with no condensation)
Input connector	SAC-5P-M12MS
Conformed standards	CE, RoHS

Product Details Dimensions (mm) Downloads

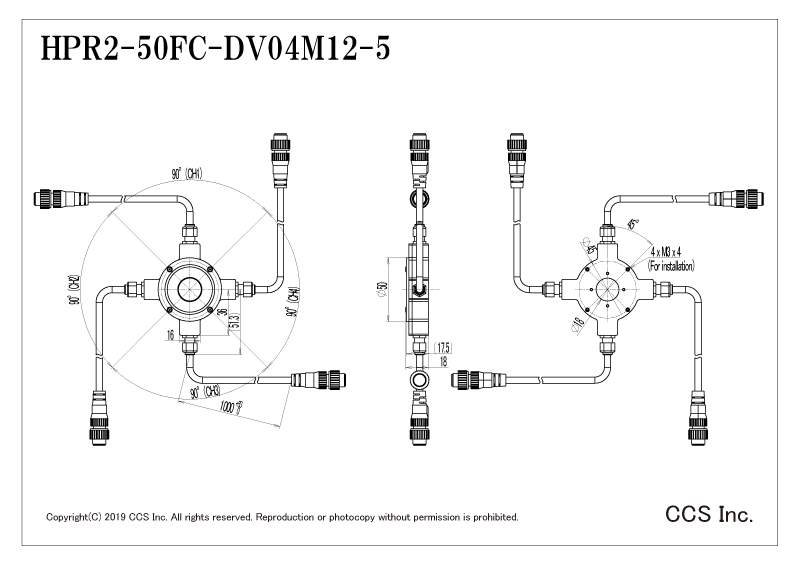

Dimensions (mm)

Downloads

General Catalog	PDF Drawing
